5

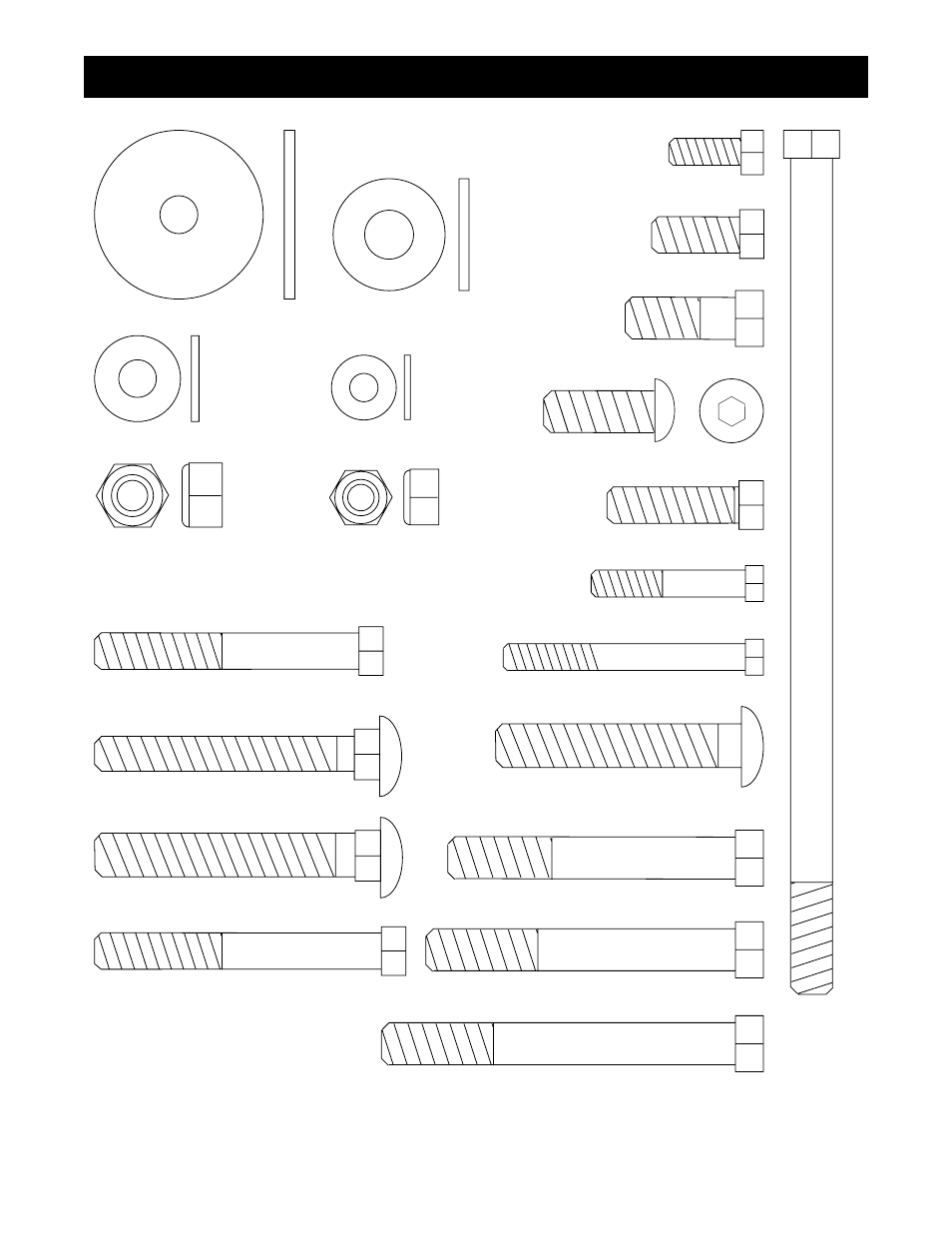

Part Identification Chart—Model No. IMBE53901
R1200A
Large Washer (70)
M8 Washer (77)
M10 Washer (6)
M6 Washer (30)
M10 Nylon Locknut (11) M8 Nylon Locknut (42)
M8 x 20mm Bolt (75)
M8 x 30mm Bolt (64)
M8 x 65mm Carriage Bolt (71)
M10 x 65mm Carriage Bolt (66)
M10 x 70mm Bolt (21)
M10 x 80mm Bolt (31)
M10 x 25mm Button Head Bolt (69)
M6 x 16mm Screw (3)
M10 x 25mm Bolt (76)
M6 x 35mm Bolt (34)
M8 x 60mm Bolt (65)
M8 x 70mm Bolt (41)
M10 x 65mm Bolt (68)
M10 x 60mm Button Head Bolt (12)
M6 x 55mm Screw (4)
M10 x 190mm Bolt (22)
