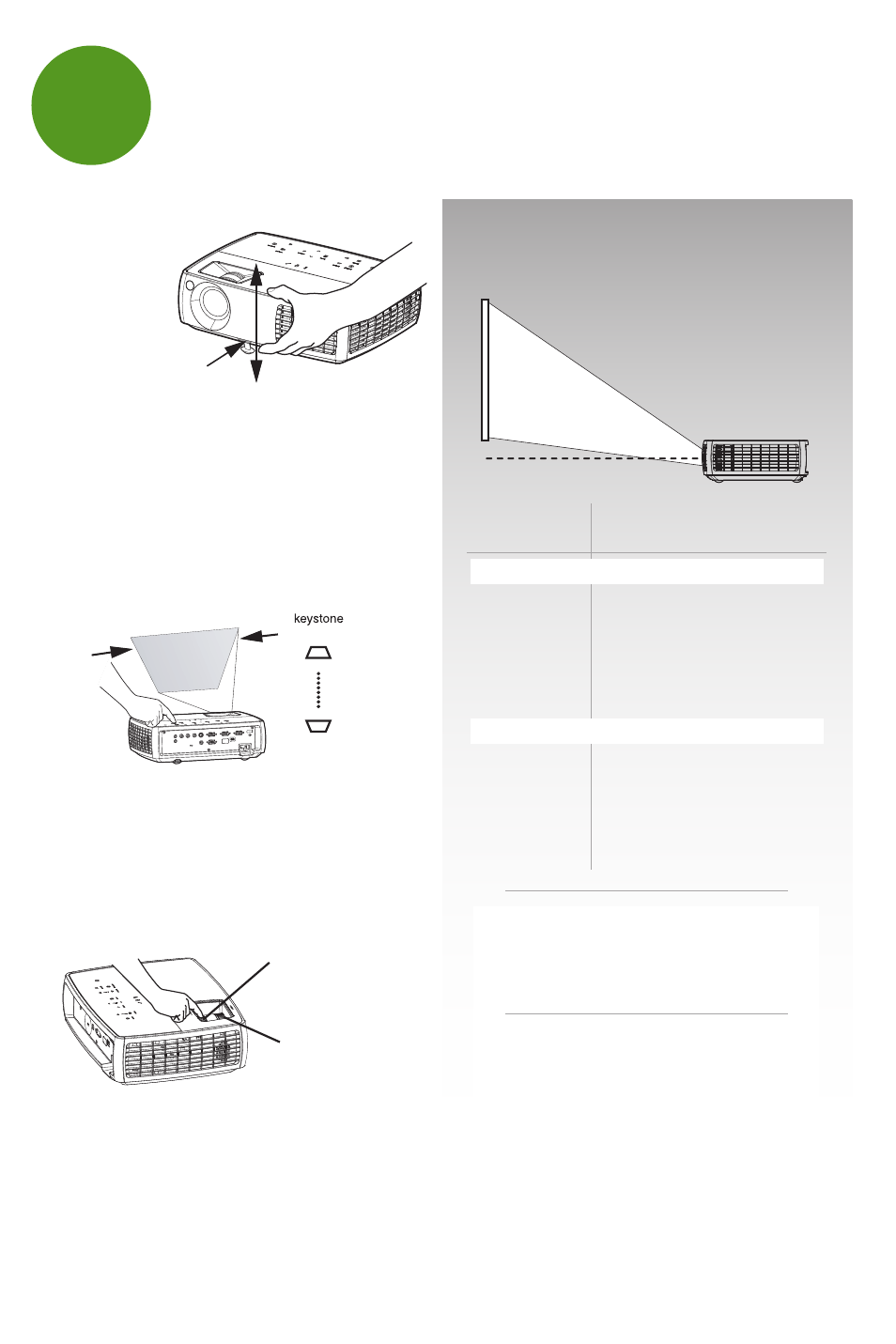

Adjust the picture
1
Height
1 Hold down the release button
under the front of the projector.
2 Lift the front of the projector to
the desired height.
3 Release the button.
2
Keystone
Press the keystone buttons to
make the picture square.
3
Zoom and focus
Adjust zoom first, then focus the
center of the image.
Projector Location
Zoom
(rear)
Focus
(front)
As distance increases, the
image gets larger and moves
upwards.
Lens center line
Diagonal
Screen Size
Distance to Screen
Minimum Maximum
7'10"/2.4m
10'5"/3.2m
11'8"/3.6m
19'6"/5.9m
60"/1.5m
80"/2.0m
90"/2.3m
150"/3.8m
8'7"/2.6m
11'6"/3.5m
12'11"/3.9m
21'6"/6.6m
Ceiling mount?
To flip the image, turn on the Ceiling
Mount setting in the Setup menu.
5
6'6"/2.0m
8'8"/2.7m
9'10"/3.0m
16'4"/5.0m
60"/1.5m
80"/2.0m
90"/2.3m
150"/3.8m
7'4"/2.2m
9'8"/2.9m
10'11"/3.3m
18'1"/5.5m
1
2
Interactive Screen Size and Distance
Calculator
www.infocus.com/calculator
Buy a Screen and Other Custom
Accessories
www.infocus.com/store
IN3102 & IN3104
IN3106 & IN3108
