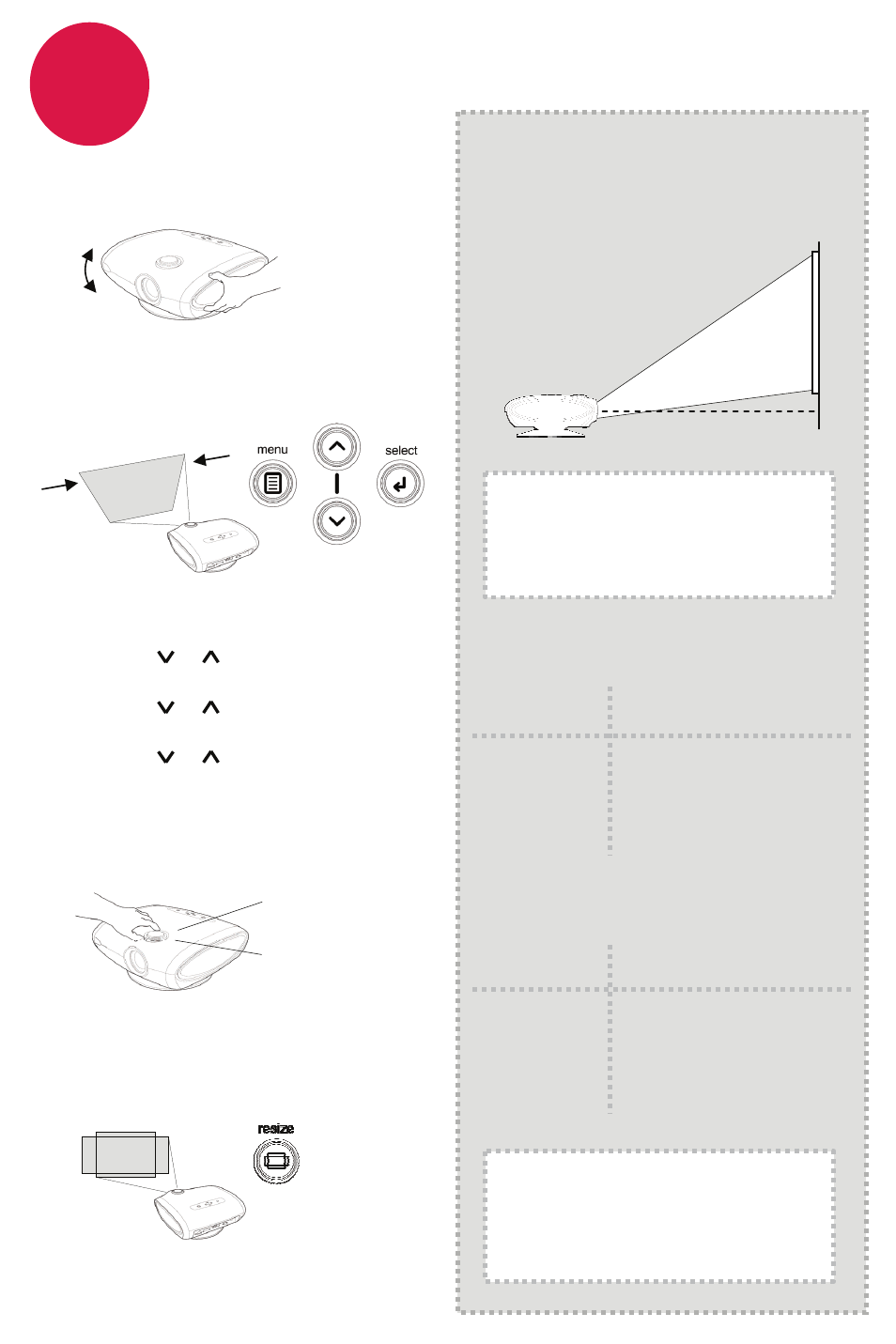

Adjust the picture
Height
1
Keystone
2
Zoom and focus
3
Aspect ratio
4
zoom
(outer ring)
focus
(inner ring)
Tilt the projector up or down.
Press menu (on projector or remote).
Press or to highlight Picture,
then press select.
Press or to highlight Keystone,
then press select.
Press or to adjust keystone.
Press menu to exit.
Adjust zoom first, then focus the
center of the image.
Press resize (on the remote) to make the
picture wider (16:9) or narrower (4:3).
1
2
3
4
5
To make the picture square:
Projector location
IN72
IN74/IN76/IN78
Buy a Screen and Other Custom
Accessories
www.infocus.com/store
As distance increases, the image gets
larger and moves upwards.
60” / 1.5 m
80” / 2 m
92” /2.3 m
150” / 3.8 m
7’10” / 2.4 m
10’5” / 3.2 m
12’ / 3.7 m
19’6” / 5.9 m
9’4” / 2.8 m
12’4” / 3.8 m
14’2” / 4.3 m
23’1” / 7 m
60” / 1.5 m
80” / 2 m
92” /2.3 m
150” / 3.8 m
6’7” / 2 m
8’10” / 2.7 m
10’1” / 3.1 m
16’5” / 5 m
8’4” / 2.5 m
11’1” / 3.4 m
12’10” / 3.9 m
20’10” / 6.3 m
Minimum Maximum Screen Size
Distance to Screen Diagonal
Minimum Maximum Screen Size
Distance to Screen Diagonal
Interactive Screen Size and
Distance Calculator
www.infocus.com/calculator
Lens center line
