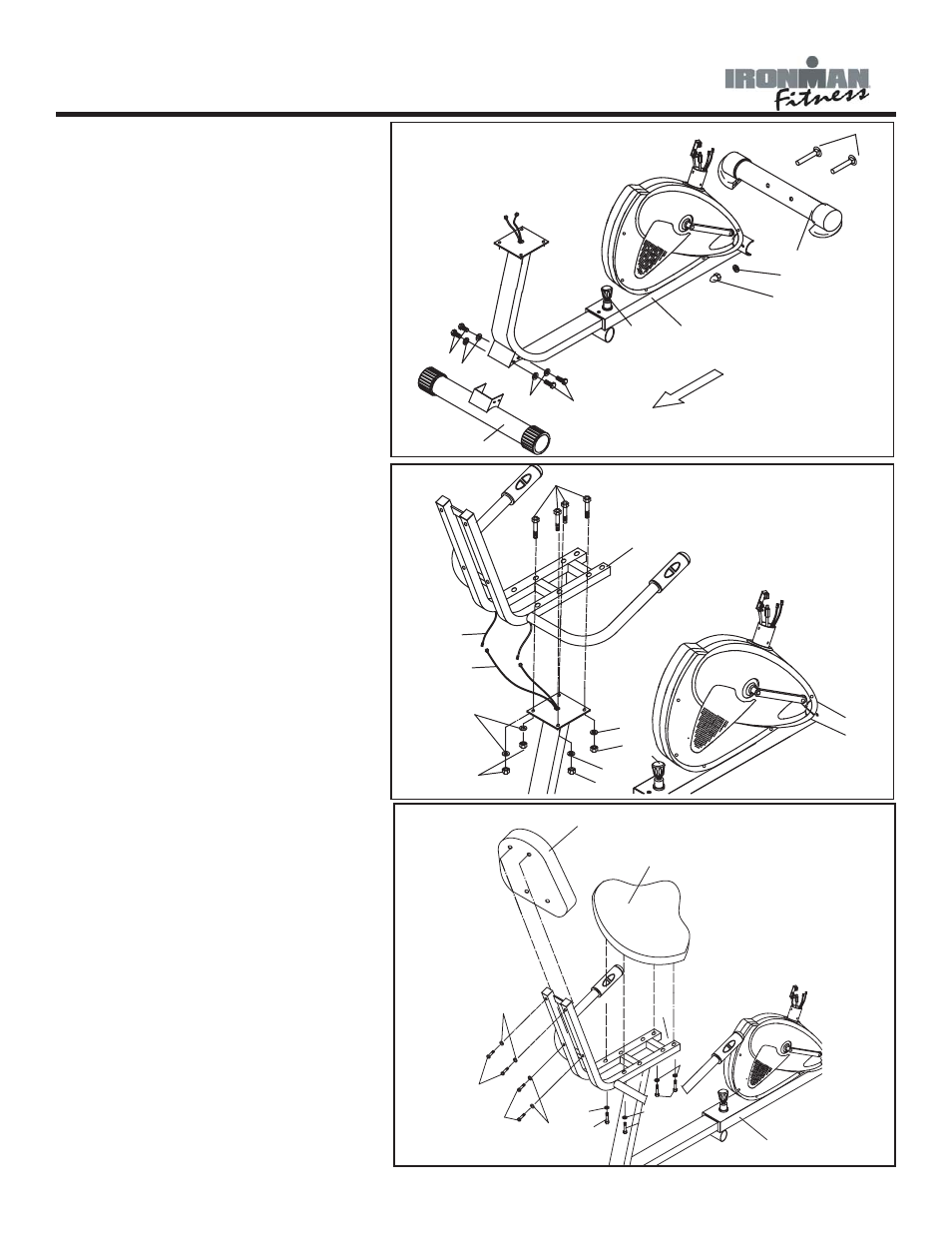

FIGURE 1
Step 1:
Loosen the adjustment knob (41) on
the front frame (1). Slide the rear frame
backward and secure with the adjust-
ment knob (41).
Step 2:
Attach the rear stabilizer (3) onto the
rear frame with screws (49) and washers
(63).
Step 3:
Attach the front stabilizer (34) onto the
main frame with carriage bolts (35), cap
nuts (37) and washers (36).
FIGURE 2
Step 1:
Connect Cables (76) to Cables (42).
Step 2:
Attach the seat frame (4) onto the rear
frame with carriage bolts (48), nylon
lock nuts (60) and washers (63).
Note: Be careful not to pinch cables.
Assembly
6
36
37
34
35
41
1
49 63
3
49
63
Figure 2
Figure 1
FIGURE 3
Step 1:
Attach the seat (5) onto the seat frame
(4) with bolts (50) and washers (62).
Step 2:
Attach the back cushion (6) onto the
seat frame (4) with bolts (50) and wash-
ers (62).
6
5
62
50
50
62
62
50
50
50
4
1
Figure 3
