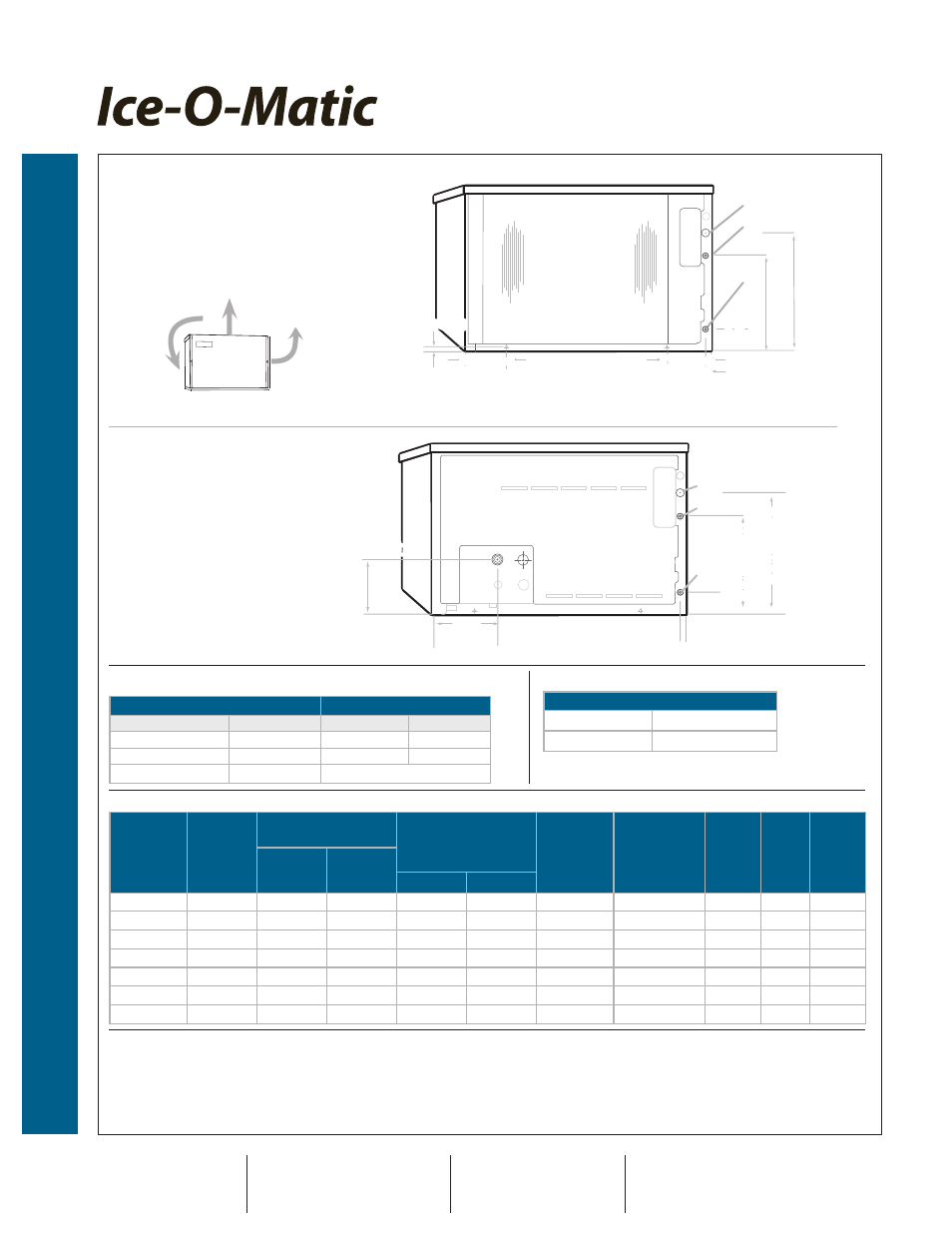

Air Cooled
Please note: air-cooled units require 6" (152 mm) clearance
for air intake and exhaust.
A. Ice maker potable water in, 3/8" FPT.
B. Ice maker water out, ¾" FPT.
C. Hole for electrical connections, 7/8".
D. Electrical connection junction box.
Air In–
Rear
Standard Side
Discharge
30"
(762mm)
24
20" (508 mm)
24"
(610mm)
Optional Top Discharge– No Side Clearance Required
B.
C.
D.
A.
2.6"
(67 mm)
.7" (18 mm)
5" (127mm)
Bin Straps
5" (127mm)
Bin Straps
.62" (16mm)
14.3" (363 mm)
11.7" (297 mm)
Air Cooled
Water Cooled
A. Ice maker potable water in, 3/8" FPT.
B. Ice maker water out, ¾" FPT.
C. Hole for electrical connections, 7/8".
D. Electrical connection junction box.
E. Condenser water in, 3/8" FPT.
F. Condenser water out, ½ " FPT.
.70"(18 mm)
2.6"(67 mm)
14.5" (368 mm)
7.5"
(191 mm)
10.5"
(267 mm)
11.7" (297 mm)
6.5" (165 mm)
E.
D.
F.
B.
C.
A.
Water Cooled
Operating Requirements
Minimum Maximum
60 Hz 50Hz
Ambient Temp. Range Air 50˚F (10˚C) 100˚F (38˚C) 110˚F (43˚C)
Water Temp. 40˚F (4.4˚C) 100˚F (38˚C) 110˚F (43˚C)
Water Pressure 20 PSIG (1.4 BAR) 60 PSIG (4.1 BAR)
Dimensions
All Models
W x D x H (inches) 30 x 24 x 20
W x D x H (mm) 762 x 610 x 508
Specifications
Model Number Cond. Unit
Ice Production
per 24hrs Water Usage
gallons per 100 lbs of Ice
90°F air/70°F water
kWH Used
per 100 lbs
of ice @
90°F air/
70°F water
Voltage
Characteristics
Min.
Circuit
Ampacity
Fuse
Size
Approx.
BTUs
per hour
70°F air/
50°F water
lbs (kg)
90°F air/
70°F water
lbs (kg) Potable Condenser
ICE0400A  Air 505 (230) 368 (167) 24.4 - 6.1 115/60/1 17.1 20 7,835
ICE0400W Water 496 (225) 407 (185) 28.8 148 4.6 115/60/1 12.9 15 7,563
ICE0400T  Air. 499 (227) 357 (162) 25.0 - 6.3 115/60/1 17.1 20 7,757
ICE0406A Air 529 (240) 358 (162) 24.0 - 6.0 208-230/60/1 8.0 15 7,523
ICE0406W Water 523 (238) 439 (200) 28.9 132 4.2 208-230/60/1 6.4 15 7,770
ICE0405A Air 498 (226) 366 (166) 22.7 - 6.0 230/50/1 8.2 16 7,735
ICE0405W Water 525 (239) 440 (200) 26.5 166 4.7 230/50/1 6.2 16 8,213
NOTES:
Number of Wires: 3 (including ground)
Approx. Shipping Weight lbs (kg): ICE0400A 165 (75) • ICE0400W 165 (75) • ICE0400T 165 (75) • ICE0406A 165 (75) • ICE0406W 165 (75) • ICE0405A 165 (75) • ICE0405W 165
(75)
Refrigerant Type: R404A
 ENERGY STAR qualified machine.
Please see our website www.iceomatic.com for the latest list of ENERGY STAR qualified machines and available rebates
