Congratulations on your purchase of an Ikelite Digital Camera
Housing Ikelite has over years of experience in the underwater
photographic and lighting market Our products are designed and
built in the USA by Ikelite for both the professional and amateur
photographer
The clear housing permits instant visual inspection of the camera
and all sealing surfaces as well as complete monitoring of controls
and camera LCD screens
Ikelite Digital Housings are slightly negative in salt water for
stability This housing has been water pressure tested at the
factory Housing is pressure tested to ’ ( m)

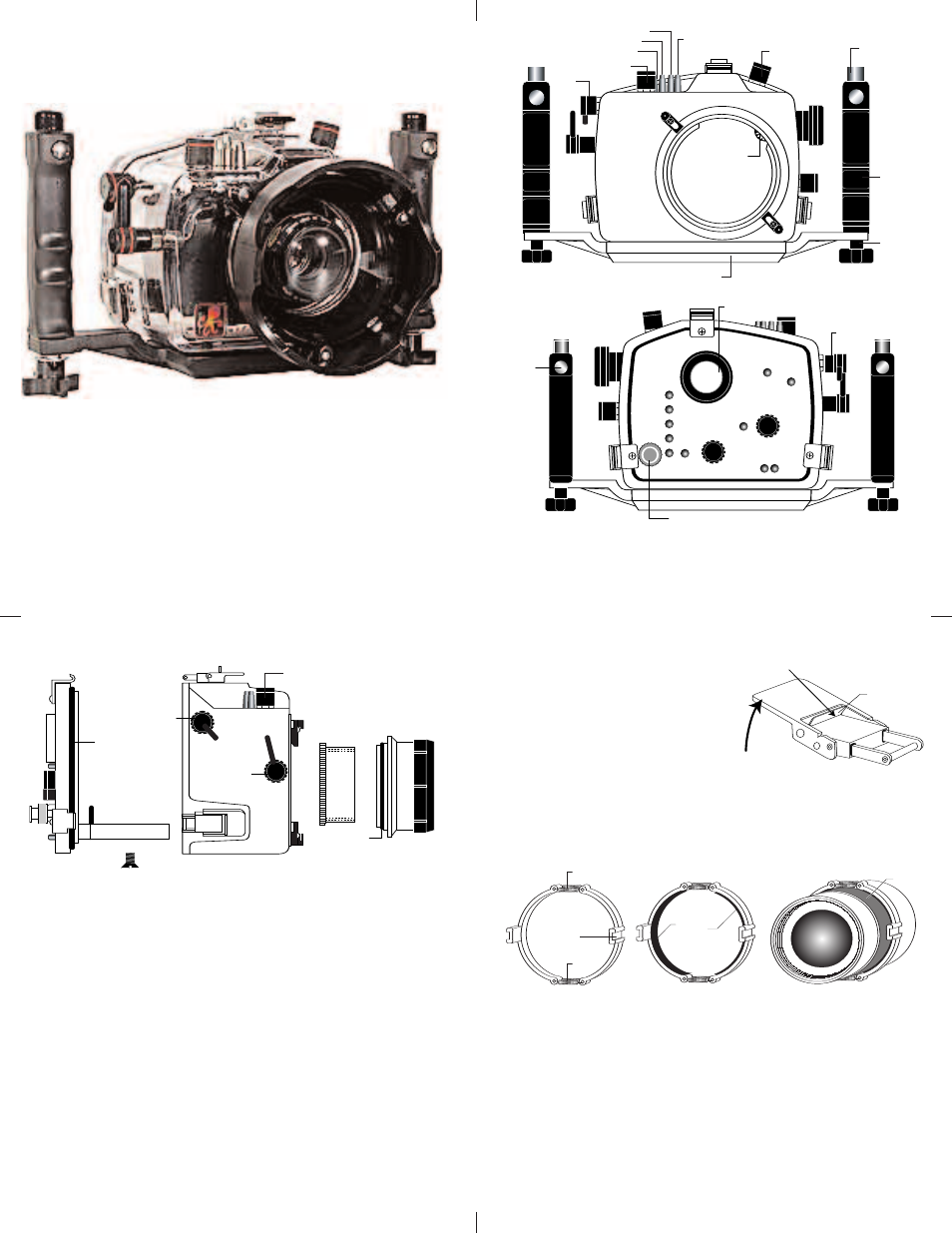

Ikelite SLR-DC Housing
i n s t r u c t i o n m a n u a l
#6871.20 for Canon EOS 20D
2
Strobe
Mount
Rubber
Handle
Quick-Release
Strobe
Mount
Gear Sleeve
Drive Gear
Zoom
Control
Lid Snap
Mode
Dial
Lens
Release
Main Dial
Meter/Flash
Drive Mode
AF/WB Mode
Illuminator
Lid
Snap
Shutter
Release
AE/FL
Lock
Port Lock
Aluminum Tray
Port
Opening
Quick
Release
Button
External Strobe Connector
and Waterproof Cap
Viewfinder Port
Shutter
Release
[D] Direction
[E] Playback
[F] Erase [G] On/Off
[H] Access
[I] AF Point
A
B
C
D
E F
G
H
I
K
J
L
Lens
Release
Zoom
AE/FE Lock
[A] Menu
[B] Info
[C] Jump [J] Set
[K] Quick Control Dial
[L] eTTL Mode/Compensation
FRONT VIEW
BACK VIEW
3
SIDE VIEW
LLuubbrriiccaannttss
Ikelite provides silicone lubricant with the housing We
recommend that you use only Ikelite lubricant as some other
brands may cause the o’ring to swell and not seal properly
Use only enough lubricant to lightly cover control shafts and
o’rings Wipe off any excess lubricant with a clean cloth
Lubricant is not a sealant it is used to reduce friction Excessive
lubricant can collect sand and dirt which may interfere with
proper sealing
CCAAU UTTIIO ON N
N Neevveerr uussee sspprraayy lluubbrriiccaannttss aass tthhee pprrooppeellllaanntt iinnggrreeddiieenntt ccaann
ccaauussee tthhee ppllaassttiicc hhoouussiinngg ttoo ccrraacckk
Camera
Tray
Camera
Mounting
Bolt
Gear
Sleeve
Port
O'ring
Optional
Port
Lid
Snap
Shutter
Release
AE/AF Lock
Back O’ring
Main Dial
4
O Oppeenniinngg tthhee H Hoouussiinngg
Lid Snaps have a LLoocckk
To open push Lid Snap Lock
forward and lift as shown
Keep pressure on the Lid
Snap so it does not fly open
quickly
Some lid snaps have a lot of
spring tension once they go over center have a firm grip on the
lid snap Lid Snaps may be opened one at a time
ZZoooom m CCllaam mpp
IInnssttaalllliinngg tthhee ZZoooom m CCllaam mpp
The two halves of the Zoom Clamp are held together by springs
This allows the Zoom Clamp to be stretched to fit over the zoom
grip on different diameter lenses The Zoom Clamp should fit
tight around the lenses zoom grip so that it does not slip when
using it to rotate the camera’s zoom ring If the Clamp is loose
adhere the thin black rubber strips to the inside of each half of
the Zoom Clamp as shown above The Zoom Clamp has two
extended ears with grooves These grooves accept the Ribs on
Gear Sleeve
Lift
Push Forward
Lid Snap Lock
Springs
Groove
Rubber Strips
Lens Zoom Grip
Springs
