13
CONNECTING PROJECTOR

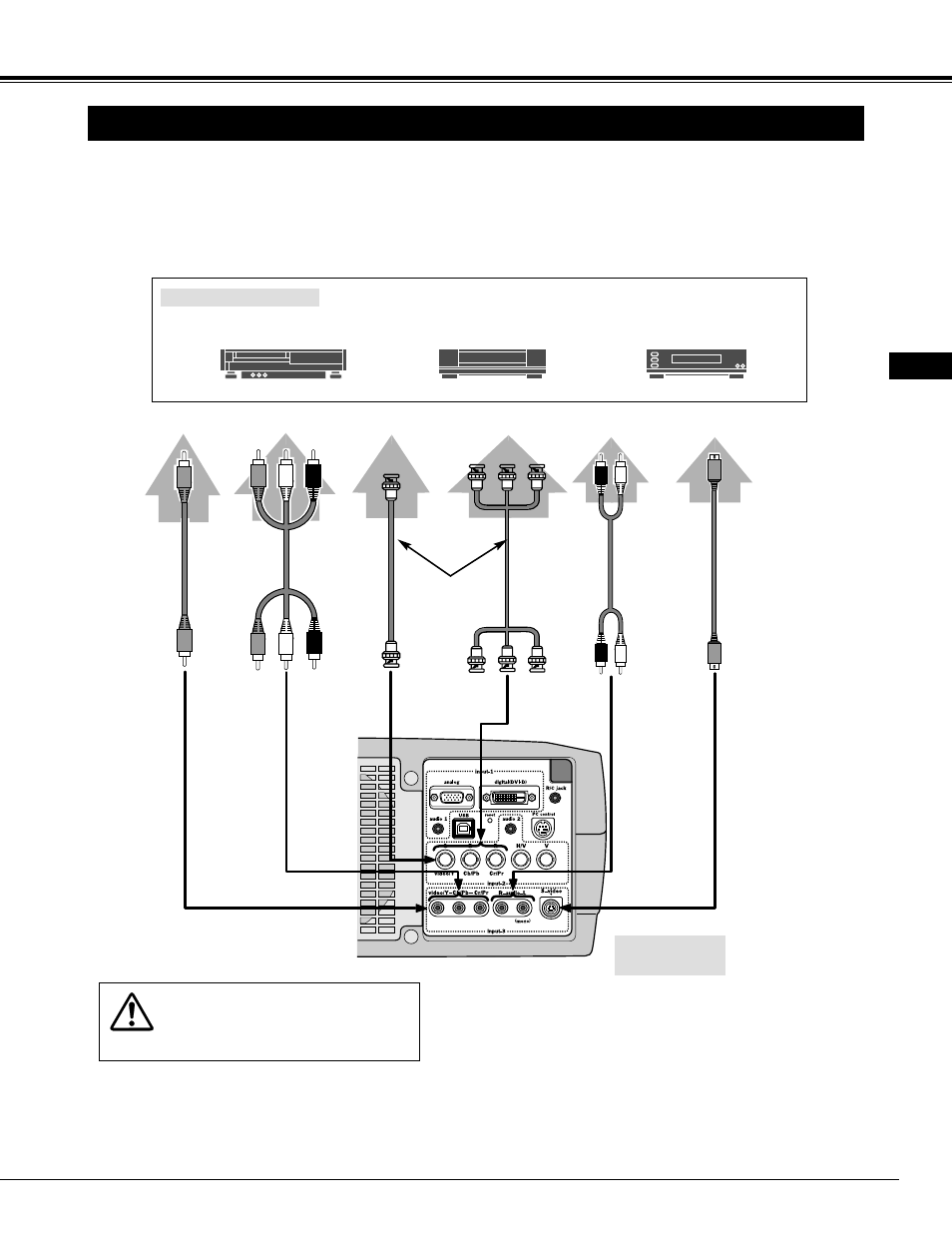

CONNECTING TO VIDEO EQUIPMENT
Video Source (example)
Video Cassette Recorder Video Disc Player
S-VIDEO
Cable
✽
Terminals
of a Projector
S-VIDEO Output
Cables used for connection ( ✽ = Cable is not supplied with this projector.)
• Video Cable (RCA x 1 or RCA x 3) ✽
• BNC Cable ✽
• S-VIDEO Cable ✽
• Audio Cable (RCA x 2) ✽
NOTE :
When connecting cable, power cords of
both a projector and external equipment
should be disconnected from AC outlet.
Audio Cable
(RCA x 2)
✽
AUDIO IN S-VIDEO Y - Cb/Pb - Cr/Pr VIDEO
Component video output equipment.
(such as DVD player or high-definition TV source.)
Composite
Video Output
Component Video Output
(Y, Cb/Pb, Cr/Pr)
Component Video Output
(Y, Cb/Pb, Cr/Pr)
Y - Cb/Pb - Cr/Pr
Video Cables
(
RCA x 1 or
RCA x 3
) ✽
BNC Cable ✽
Audio Output Composite
Video Output
VIDEO
E
