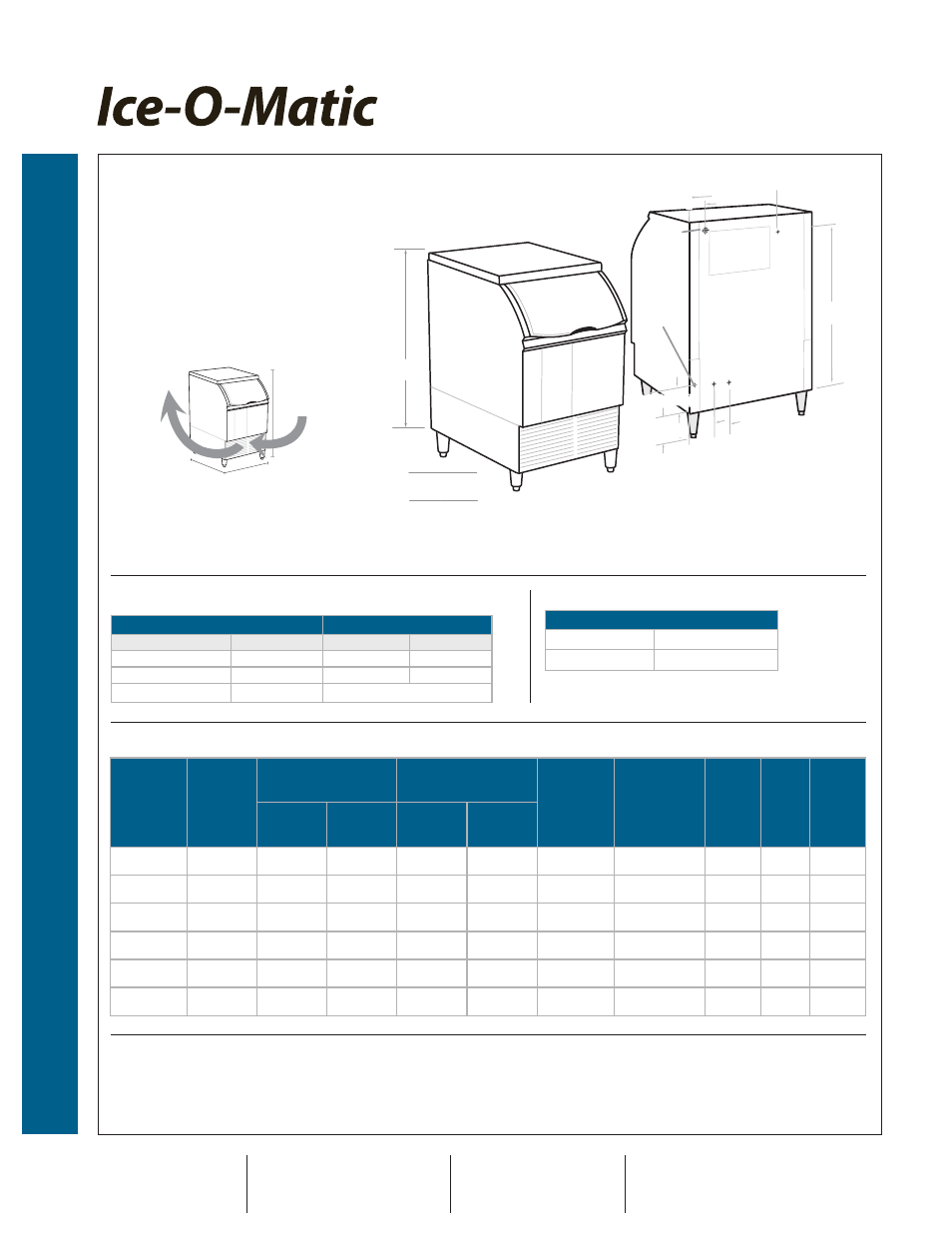

Air and Water Cooled
A. Ice maker water in 3/8" FPT.
B. Bin and ice maker drain, ¾" FPT.
C. Hole for electrical connections, ⁷/8".
(Cord on 115)
D. Condenser water in, 3/8" FPT
(water cooled units only)
E. Condenser water out, ½" FPT
(water cooled units only).
Air In-Front
Air Out-Front
39" (991 mm)
24"
(610mm)
24"
(610mm)
B.
A.
C.
Front & Rear
9" (229 mm)
6" (152 mm)
D. E.
6" (152 mm) to
7" (178 mm) Adjustable Leg
33"
(838 mm)
9.6" (243 mm)
6" (152 mm)
30" (764 mm)
2.6" (67 mm)
16.9" (106 mm)
Operating Requirements
Minimum
Maximum
60 Hz
50Hz
Ambient Temp. Range Air
50˚F (10˚C)
100˚F (38˚C)
110˚F (43˚C)
Water Temp.
40˚F (4.4˚C)
100˚F (38˚C)
110˚F (43˚C)
Water Pressure
20 PSIG (1.4 BAR)
60 PSIG (4.1 BAR)
Dimensions
All Models
W x D x H (inches)
24 x 24 x 39
W x D x H (mm)
610 x 610 x 991
Specifications
Model Number Cond. Unit
Ice Production
per 24hrs
Water Usage
gallons per 100 lbs of Ice
90°F air/70°F water
kWH Used
per 100 lbs
of ice @
90°F air/
70°F water
Voltage
Characteristics
Min.
Circuit
Ampacity
Fuse
Size
Approx.
BTUs
per hour
70°F air/
50°F water
lbs (kg)
90°F air/
70°F water
lbs (kg)
Potable
Condenser
ICEU220A
Air
238 (108)
175 (80)
30.3
-
8.8
115/60/1
11.9
15
4,609
ICEU220W
Water
251 (114)
193 (88)
36.9
175
6.6
115/60/1
8.9
15
4,288
ICEU225A
Air
211 (96)
143 (65)
32.7
-
8.8
230/50/1
4.9
16
3,774
ICEU225W
Water
210 (95)
174 (79)
36.6
156
6.3
230/50/1
4.1
16
3,780
ICEU226A
Air
241 (110)
168 (76)
30.6
-
8.5
208-230/60/1
6.0
15
4,321
ICEU226W
Water
232 (105)
192 (87)
36.3
167
6.6
208-230/60/1
4.4
15
4,263
NOTES:
Number of Wires:
3 (including ground)
Approx. Shipping Weight lbs (kg): ICEU220A 160 (73) • ICEU220W 160 (73) • ICEU225A 160 (73) • ICEU225W 160 (73) • ICEU226A 160 (73) • ICEU226W 160 (73)
Refrigerant Type:
R404A
ENERGY STAR qualified machine.
Please see our website www.iceomatic.com for the latest list of ENERGY STAR qualified machines and available rebates
