Ice-O-Matic MFI2406 - Manual (Page 2)

11100 E. 45th Avenue
Denver, CO 80239 Phone: 1. 866. PURE. ICE
Fax:
303. 371.6296
www.iceomatic.com
®
Rev: A-01/09
Part: 7013
M
FI2
40
6
R
em
ot
e L
ow
S
id
e F
la
ke
Ic
e M
ak
er
M
FI2
40
6
R
em
ot
e L
ow
S
id
e F
la
ke
Ic
e M
ak
er

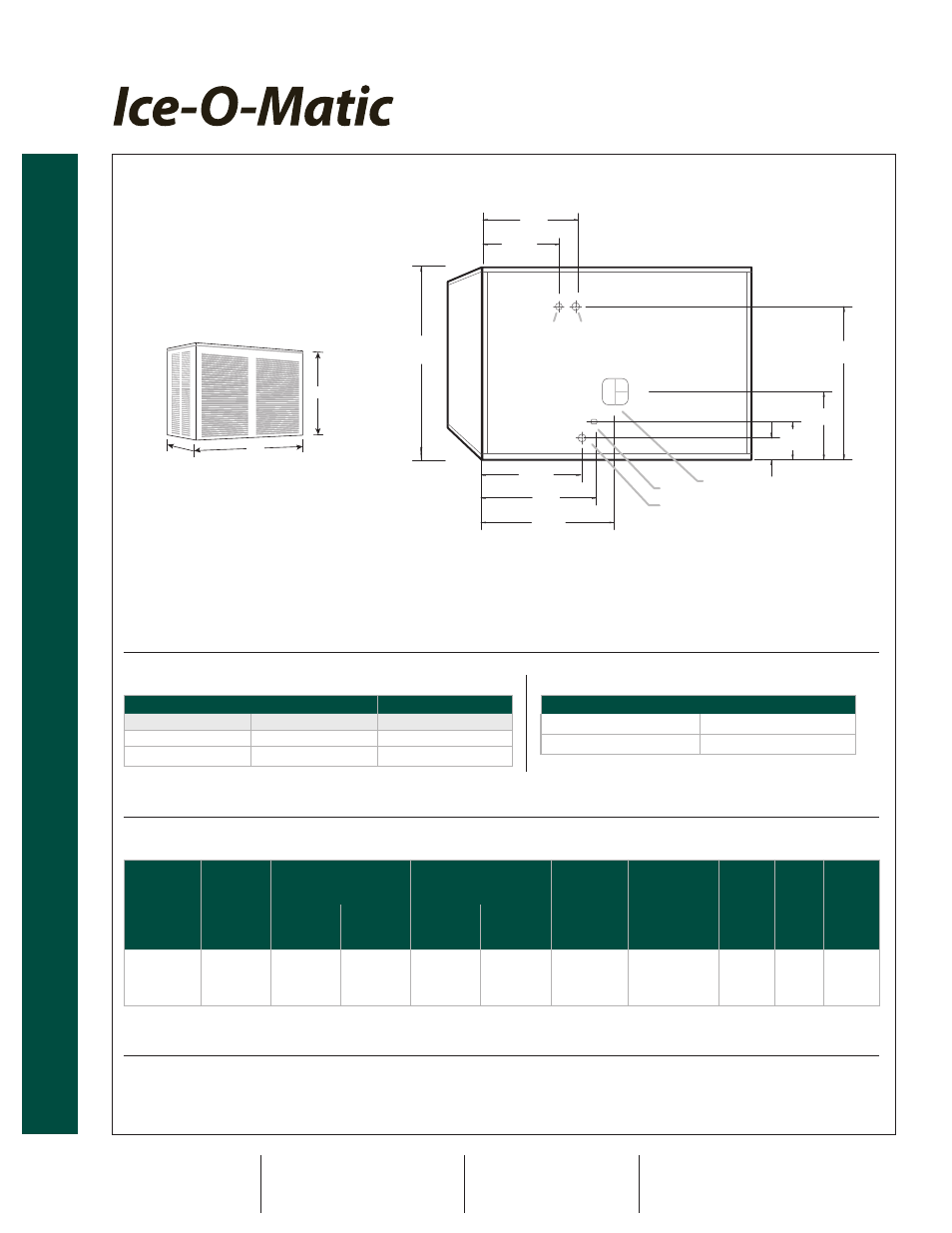

Low Side Remote
a. Ice maker potable water in, 3/8" Male Flare.
B. Drain, 3/4" FPT.
C. Hole for electrical connection.
d. Remote liquid inlet, 1/2" (12.7 mm) O.D.
e. Remote suction connection 7/8"
(22.23 mm) O.D.
42"
(1067 mm) 24"
(610 mm)
27" (686 mm)
27"
(686 mm)
18.80"
(478 mm)
9.43"
(240 mm)
21.66"
(550 mm)
20.84"
(529 mm)
5.25"
(133 mm) 3.00"
(76 mm)
12.43"
(316 mm)
15.53"
(394 mm)
17.80"
(452 mm) A. C.
B.
D. E.
Rear View
Operating Requirements
Minimum Maximum
Ambient Temp. Range Air 50˚F (10˚C) 100˚F (38˚C)
Water Temp. 40˚F (4.4˚C) 100˚F (38˚C)
Water Pressure 20 PSIG (1.4 BAR) 120 psig (8.3 BAR)
Dimensions
all Models
W x D x H (inches) 42 x 24 x 27
W x D x H (mm) 1067 x 610 x 686
Note: Requires a R404 refrigeration system of 12,000 Btu/h
Specifications
Model Number Cond. Unit
Ice Production
per 24hrs
Water Usage
gallons per 100 lbs of Ice
90°F air/70°F water
kWH Used
per 100 lbs
of ice @
90°F air/
70°F water
Voltage
Characteristics
Min.
Circuit
Ampacity
Fuse
Size
approx.
BTUs
per hour
70°F air/
50°F water
lbs (kg)
90°F air/
70°F water
lbs (kg)
Potable Condenser
MFI2406LS
Remote
Low Side
2,365 (1,072) 2,000 (907) 12.0 3.26 208-230/60/1 2.7 15 12,000
NOTES:
Number of Wires: 3 (including ground)
Approx. Shipping Weight lbs (kg): MFI2406LS 255 (115)
Refrigerant Type: R404A
