C A T A L O G # : T Y P E :
Specification grade 90 watt PAR38/3 (side prong)
adjustable fixture rated for direct contact with
insulation. Adjustment mechanism features hot
aiming capability, aiming marks and tooless
locking. Optics provide glare-free 50° cutoff to lamp. Unit can be relamped from above. Lamp
module and optical element can be changed after
installation to provide a variety of lamp sources
and distributions. e.g. into an A20 Wall Wash
A . . . B a f f l e
.040 thick aluminum spun sawtooth baffle in matte
black or powdercoat white finish.
B . . . F l a n g e
Die-cast flange with either matte white or clear
coat finish. Die-cast flanges are easily removed
for field painting. Elements are keyed for proper
insertion.
C . . . A d j u s t a b i l i t y
Lamp locks in 361° rotation, 30° tilt (7/12 pitch).
Unit is relamped without unlocking adjustments.
Translating centerbeam optics maximize
light output.
D . . . A t t a c h m e n t
Positive torsion springs pull flange tight to ceiling.
Mechanical light trap eliminates spill light at edge
of flange or baffle.
E . . . S o c k e t
Medium porcelain side prong socket.
F . . . F r a m e / H o u s i n g
Hot dipped galvanized 20 gauge steel frame with
built in 1/2 inch plaster lip. Gunsights provide con-
sistent alignment. Aluminum .032 thick housing
allows for heat dissipation and reduces weight.
Top is removeable for above-ceiling access. Matte
black housing interior.
G . . . J u n c t i o n B o x
18 cubic inches, listed for 4#12 AWG or 6#14 AWG
90° C additional feed through conductors, has six
1/2 inch pryouts.
H . . . B a r H a n g e r s
No Flex ® bar hangers with positive locking, for
use with wood, engineered wood and steel frame
joists spaced up to 24" O.C. shipped with platform.
For use in T-bar ceilings order accessory MBCLP
clips. Nailess barb and locator lip provide consis-
tent installation height.
I . . . C o d e s
Thermally protected for use in direct contact with
insulation, IP labeled, meets Washington State Air
tight requirements, 1995 CABO Model Energy
Code.
J . . . L a b e l s
UL and cUL listed, standard damp label,
IBEW union made.
ADI030704

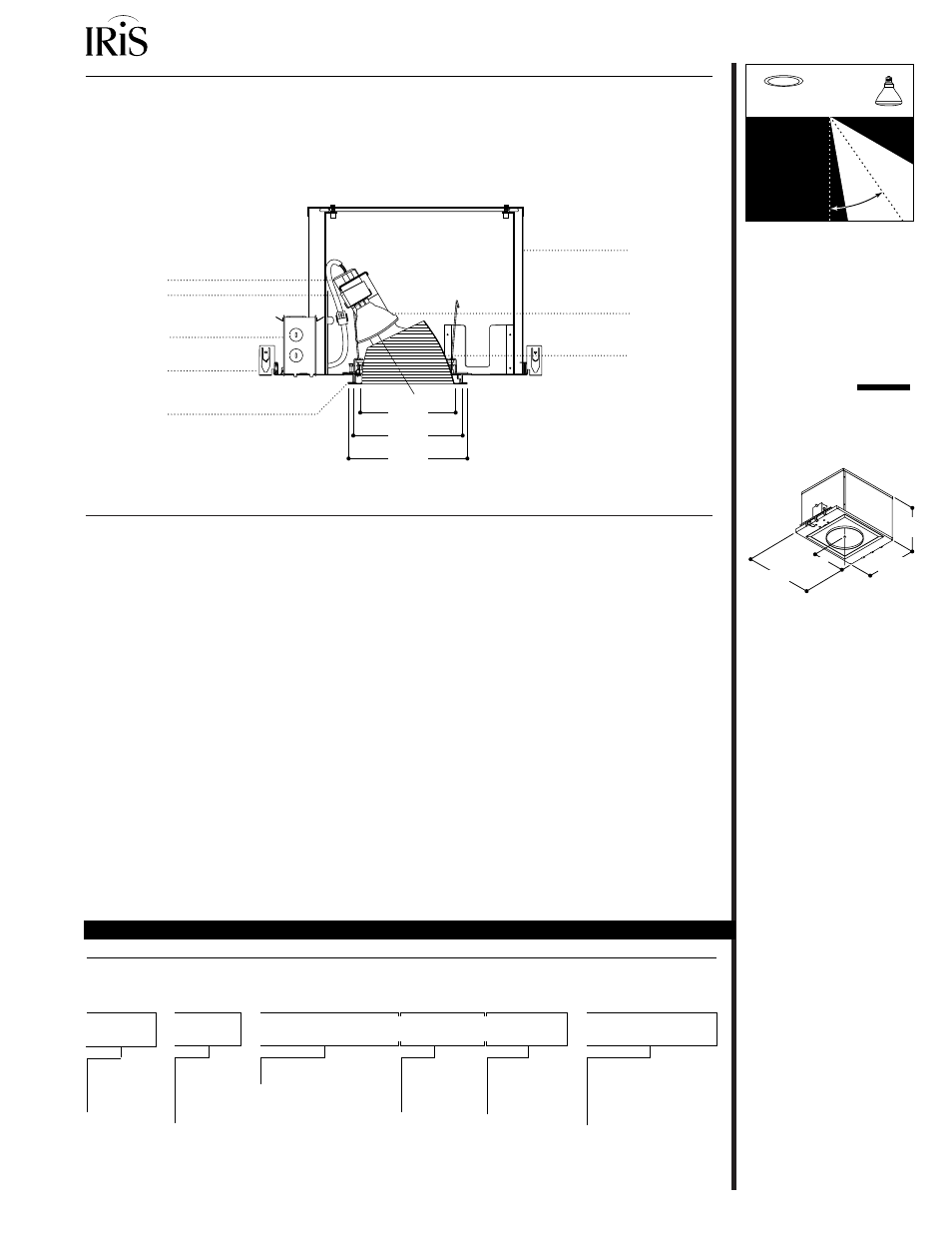

S P E C I F I C A T I O N F E A T U R E S
G
B
C
H
E
D
A
F
O R D E R I N G I N F O R M A T I O N
Complete unit consists of a platform, module and element
COOPER LIGHTING
P7
M7P383
E7AABB
9 0 W P A R 3 8 / 3
Side Prong
7 " A D J U S T A B L E
B A F F L E
30˚
6
3/4
"
D E S C R I P T I O N
6 3/4"
[172mm]
7 3/4"
[197mm]
8 1/4"
[210mm]
11"
[280mm]
12 1/4"
[312mm]
8 1/4"
[210mm]
16 3/4"
[426mm]
P7
P7 = 7"
Airtight IC
Rated
Housing
P l a t f o r m F l a n g e
Blank= White
die-cast
RAW= Natural
Die-cast
O p t i c a l E l e m e n t
E7AA = 7" PAR38 30°
Baffle
A c c e s s o r i e s
MBCLP = 40 Push On T
Bar Clips (for 10 Units)
PLE7 = Plaster Lip
Extension for Max 2"
Thick Ceiling
F i n i s h
BB= Black
Baffle
WB= White
Baffle
L a m p
M o d u l e
M7P383 = 7"
PAR38/3
Side Prong
Adjustable
Module
For additional options
please consult factory.
