– 4 –

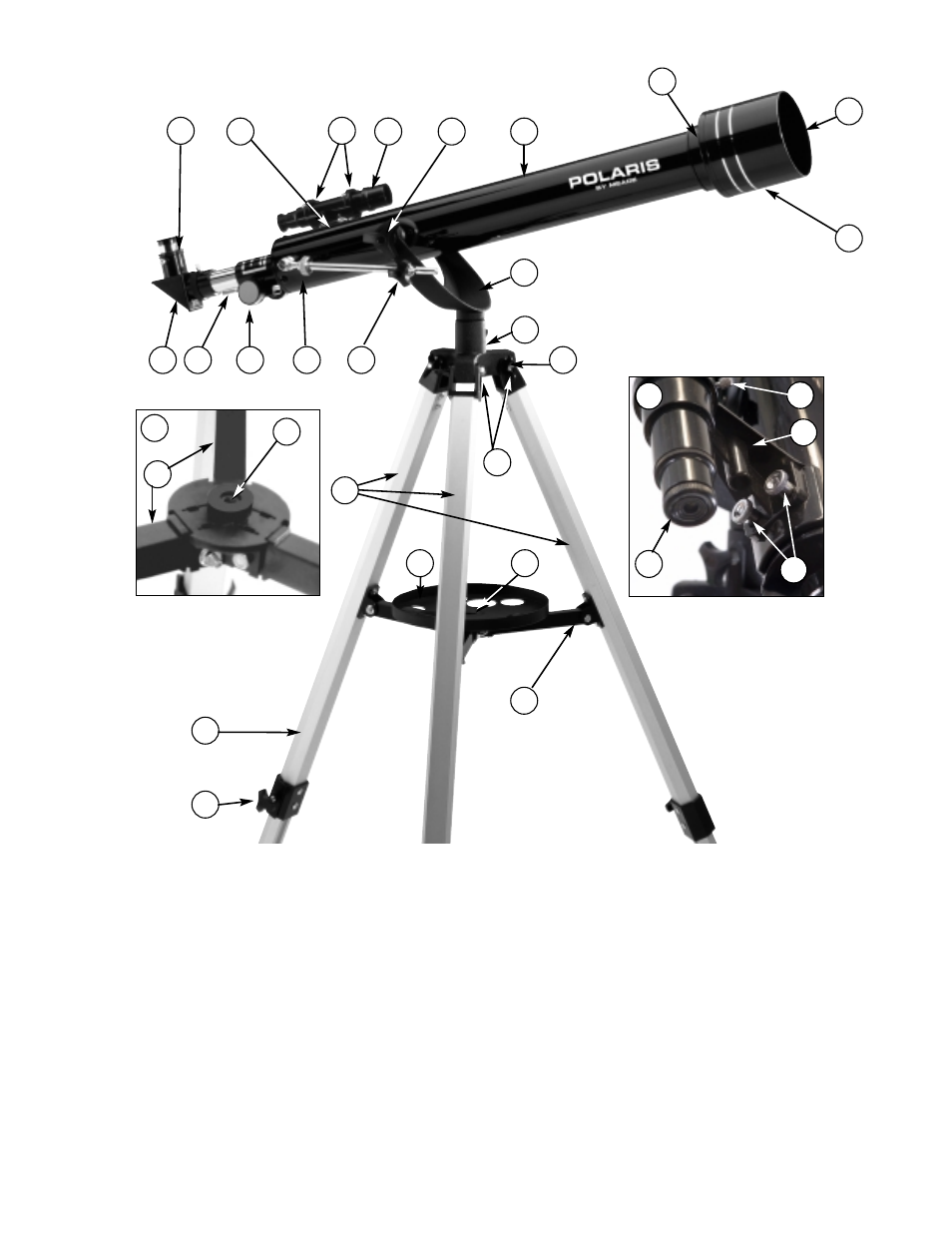

Figure 1: Polaris 60AZ-D Altazimuth Refracting Telescope
Inset A: Accessory Tray Mounting Bolt Hole; Inset B: Close up of the Viewfinder Assembly
1. Eyepiece 14. Objective lens cell
2. Viewfinder 15. Focuser drawtube
3. Viewfinder collimation screws 16. Altitude rod slow motion fine adjustment control
4. Optical tube assembly 17. Altitude rod coarse adjustment lock knob control
5. Vertical lock knobs 18. Altazimuth mount
6. Horizontal lock knob 19. Adjustable sliding center leg extension
7. Tripod legs 20. Tripod leg lock thumbscrew
8. Leg brace supports 21. Dew shield/lens shade
9. Accessory tray 22. Front lens cap
10. Tripod-to-mount base attachment 23. Focusing knob
11. Tripod attachment bolts 24. Viewfinder bracket
12. Accessory tray mounting bolt hole (see inset A) 25. Viewfinder bracket mounting thumbscrews
13. Diagonal Mirror
3 2 5 4
14
22
21
18
10
6
17 23 13
8
12 9
7
15 16
19
11
20
3
24
25
2
12
A
B
8
