Introduction
The InVision PS6U1UPE serves as an essential data communications device, enabling you
to synchronize the information on your Symbol® MC50 and a host computer using
ActiveSync® technology, or your Symbol® MC3000 using your customized synchronizing
software, across a standard Ethernet network.

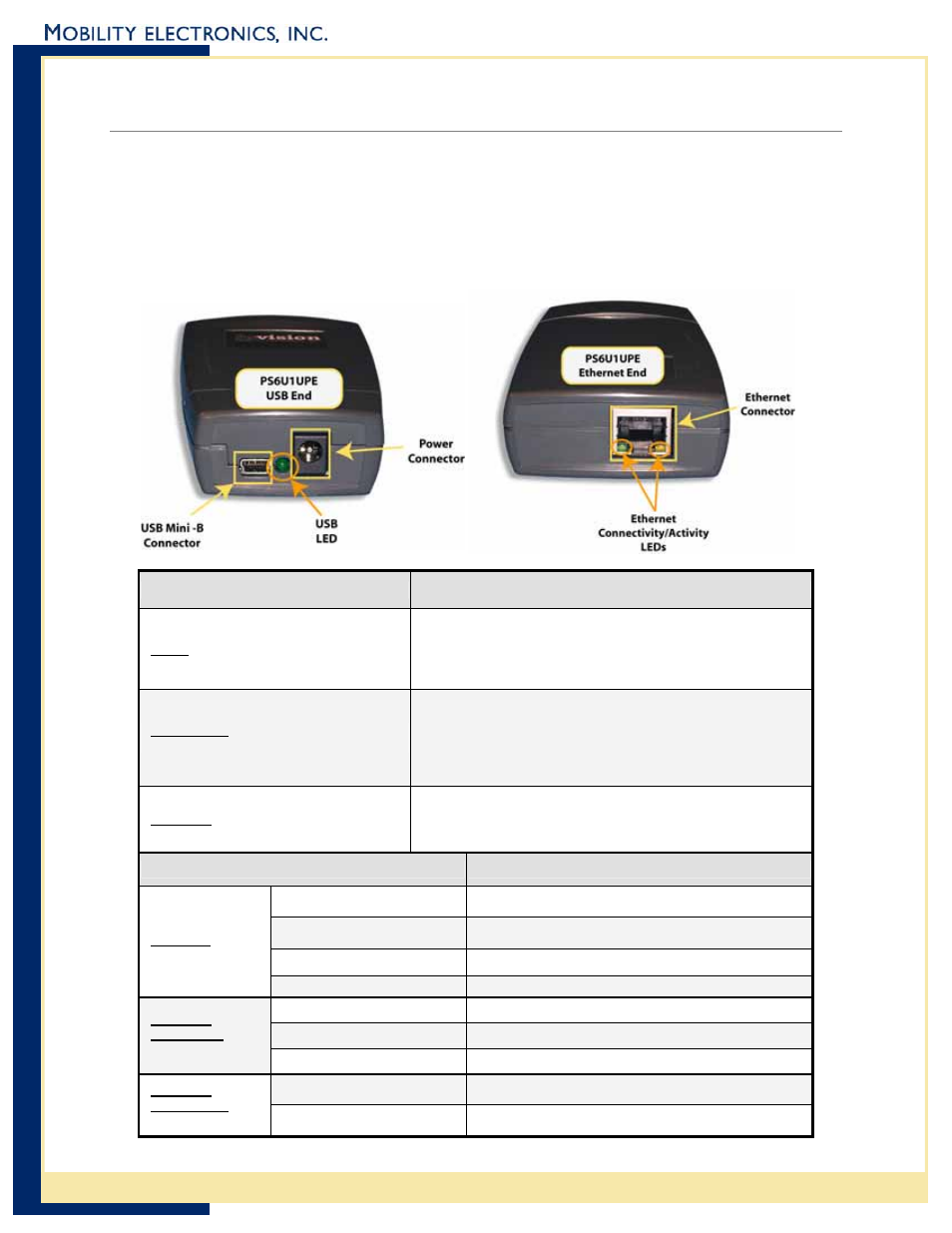

There are 3 connection ports on the PS6U1UPE. These are described below:
Ports Function
5VDC (Power)
A standard barrel port used for connecting the Power
Adapter.
This power adapter (PN 170140-000) is required for the
MC50 and optional for the MC3000. The power adapter is
available separately.
USB Mini-B (use with custom USB
Adapter Cable)
Used to connect to the MC50 or MC3000 USB ports for
ActiveSync, or other communications, to other computers on
the Ethernet networks.
A special USB adapter cable is required. The cable is
available separately for the MC50 (PN 190087-000) or
MC3000 (PN 170373-000).
Ethernet (RJ45 Ethernet Port)
Used to connect to your Ethernet network for ActiveSync, or
other communications, to other computers on the networks,
using a standard RJ45 Ethernet cable
The standard Ethernet cable is not provided.
Lights Function
Off (MC3000) No USB Host connectivity
Solid Green (MC3000) USB Host connectivity/power
Off (MC50) USB Host Mode not-enabled
USB LED
Solid Green (MC50) USB Host Mode enabled
Solid Green Link established
Flashing Green Link activity
Ethernet
Green LED
(left)
Off No link established
Off 10 Mb connection Ethernet
Yellow LED
(right)
Solid Yellow 100 Mb connection
