EN-6

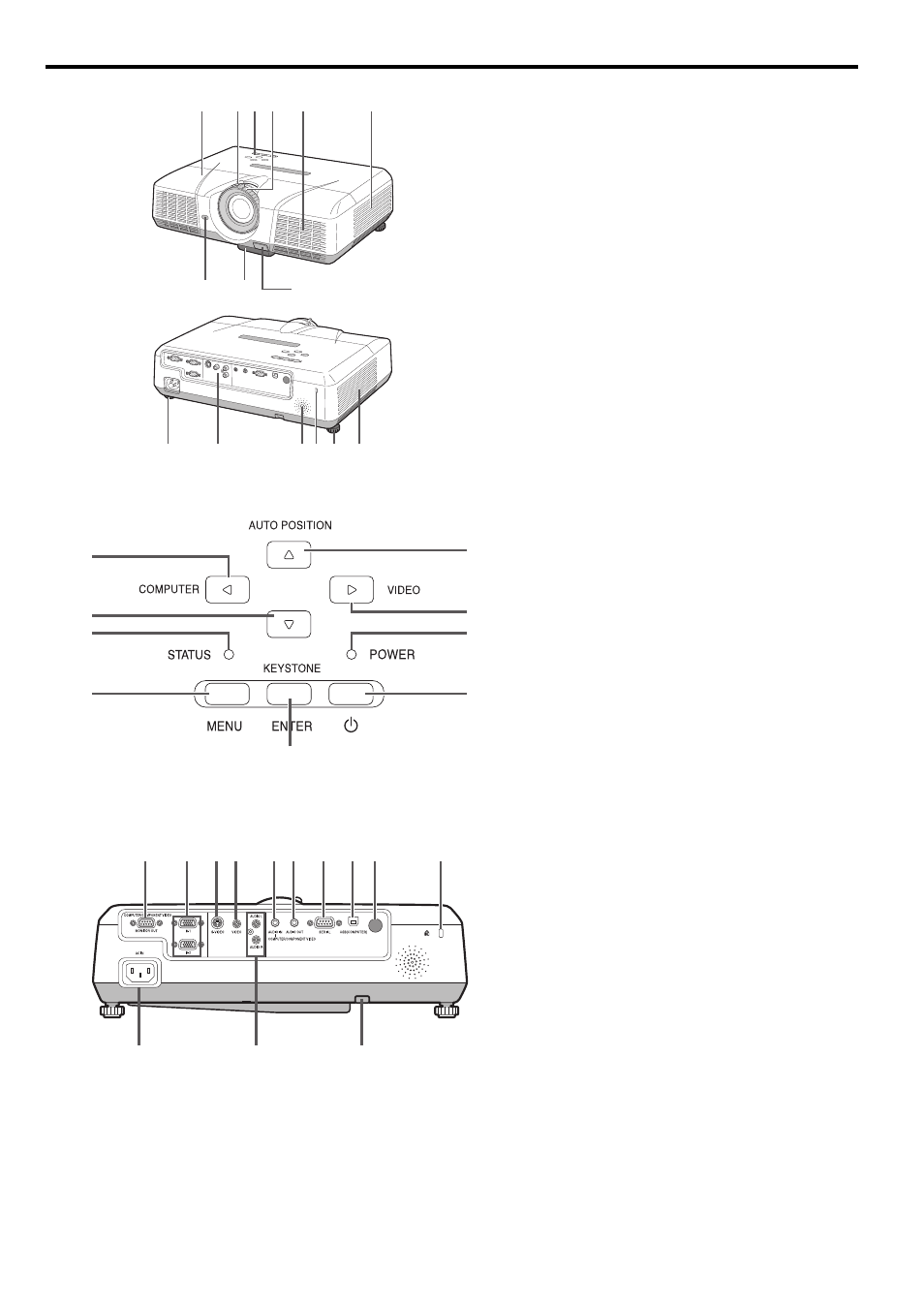

Overview
1 FOCUS ring
2 ZOOM ring
3 Control panel
4 Air inlet grille
5 Remote control sensor (Front)
6 Air inlet grille
7 Air outlet grille
8 Terminal board
9 Speaker
10 Adjustment feet (front)
11 Adjustment feet (rear)
12 Lock bar
13 Foot Adjustment button (Front)
14 Lamp cover
Caution:
Do not replace the lamp immediately after using the pro-
jector because the lamp would be extremely hot and it
may cause burns.
Control panel
1 Power button
2 AUTO POSITION / S button
3 COMPUTER / W button
4 MENU button
5 STATUS indicator
6 POWER indicator
7 KEYSTONE/ENTER button
8 VIDEO/ X button
9 T button
Important:
• While the menu or the screen for the keystone adjust-
ment or password entry is being displayed, the COM-
PUTER, VIDEO, and AUTO POSITION buttons
function as the
W, X, and S buttons respectively.
• While the menu is on the screen, the KEYSTONE but-
ton functions as the ENTER button.
Terminal board
1 Power jack
2 COMPUTER-IN terminal (1, 2) (Mini D-SUB 15-pin)
3 MONITOR OUT terminal (Mini D-SUB 15-pin)
4 Remote control sensor (Rear)
5 USB (COMPUTER) terminal
6 AUDIO-IN terminal (Mini jack)
7 AUDIO-OUT terminal (Mini jack)
8 S-VIDEO terminal
9 VIDEO terminal
10 Lock bar
11 SERIAL (RS-232C) terminal (D-SUB 9-pin)
12 AUDIO-L/R terminals
13 Kensington Lock
Kensington Lock
This projector has a Kensington Security Standard con-
nector for use with Kensington MicroSaver Security Sys-
tem.
Refer to the information that came with the Kensington
System for instructions on how to use it to secure the pro-
jector. Please contact Kensington Technology Group
below.
Kensington Technology Group
2855 Campus Drive
San Mateo, CA 94403, U.S.A.
Phone: +1- (650)572-2700 Fax: +1- (650)572-9675
3 6 4 14 2 1
10 5 13
11 8 9 12 11 7
7
4
9
3
2
8
6
1
5
3 8 9 6 7 11 5 4 13 2
12 1 10
