OM-259 Page 13

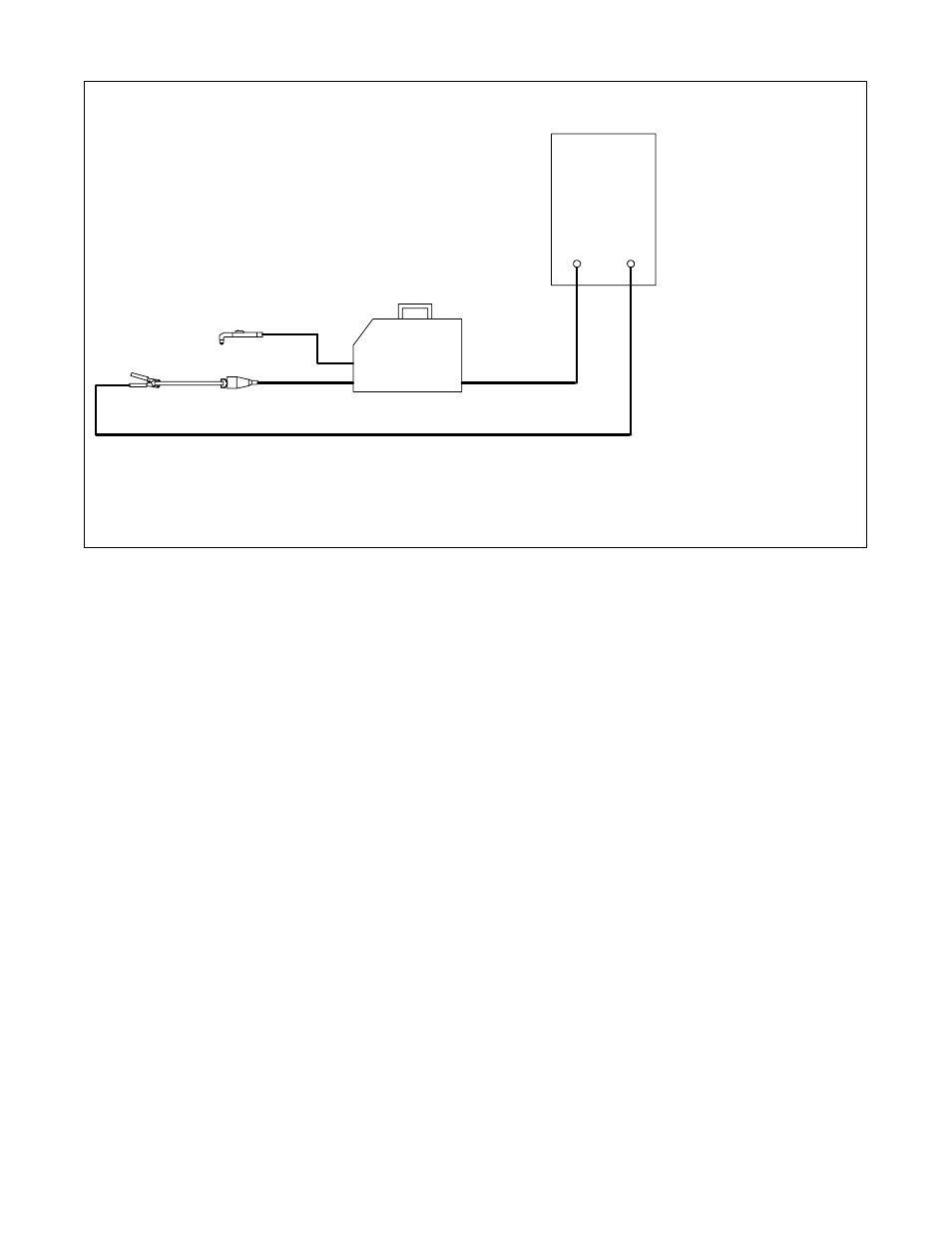

2-7. Typical MIG Process Connections Using A Voltage-Sensing Wire Feeder
Y Weld current can damage
electronic parts in vehicles.
Disconnect both battery
cables before welding on a
vehicle. Place work clamp as
close to the weld as possible.
Voltage sensing wire feeders are
used with constant current (CC) or
constant voltage (CV) power
sources (14 pin receptacle not re-
quired).
If using a CC welding power source
without a weld output contactor, use
optional secondary contactor.
For GMAW, use optional gas valve.
Voltage
Sensing Wire
Feeder
Constant
Current (CC)
Or Constant
Voltage (CV)
Power Source
Work Lead
Electrode Lead
Workpiece
Work Clamp Voltage
Sensing Clamp
Gun
802 488
