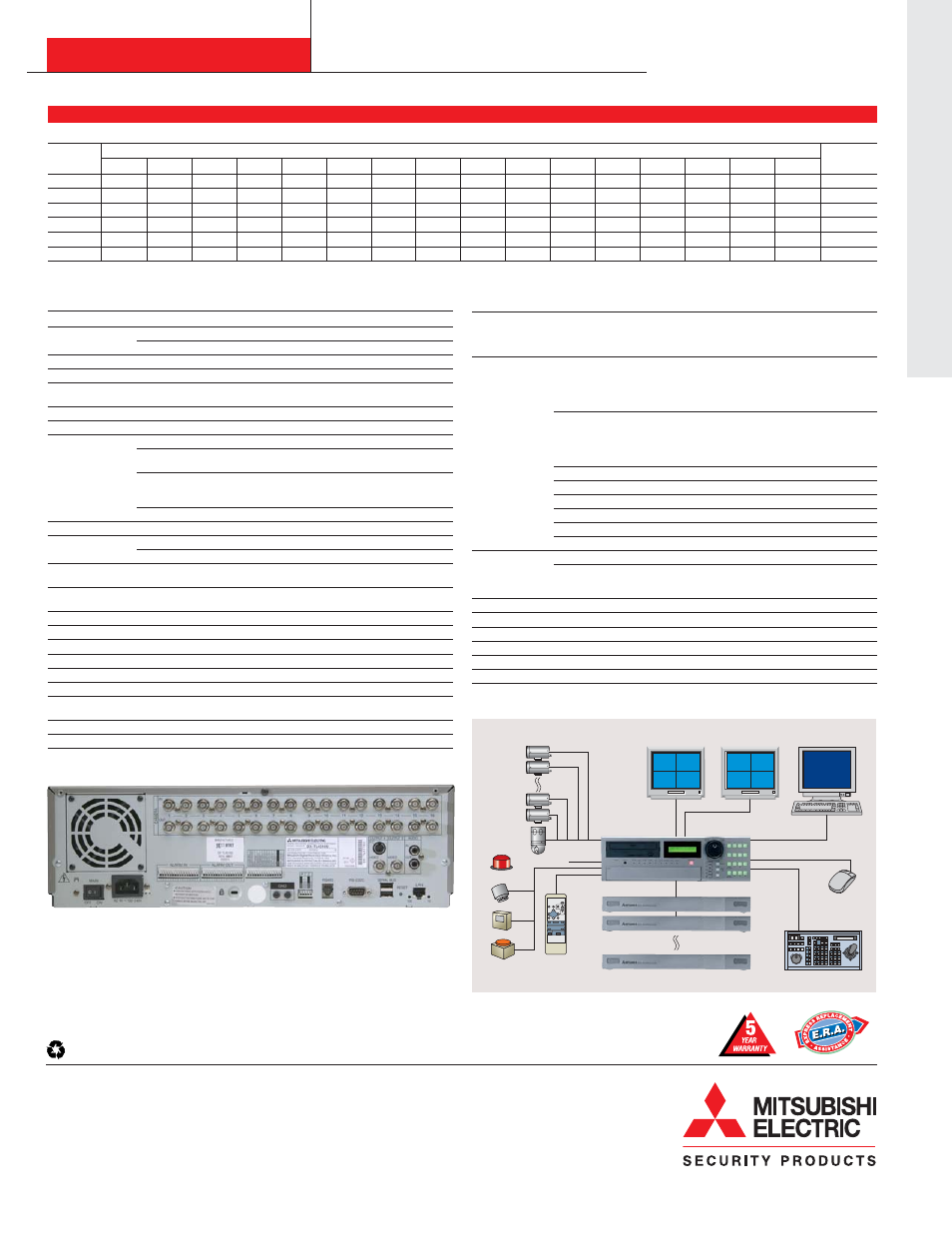

S P E C I F I C A T I O N S
Standard features, options and specifications subject to change without notice. ©2007 Mitsubishi Digital Electronics America, Inc.
Diamond Digital is a trademark of Mitsubishi Digital Electronics America, Inc. All trademarks or registered trademarks are the property of their respective holders.
Printed on 50% recycled paper including 20% post-consumer fibers.
IP7052-08/07-WEB
Mitsubishi Digital Electronics America, Inc.
Imaging Products Division
9351 Jeronimo Road
Irvine, CA 92618
Toll Free: 888-307-0388
[email protected]
www.mitsubishi-imaging.com/security
Canada:
Mitsubishi Electric Sales Canada Inc.
Information Technologies Group
Markham, Ontario
905-475-7728
www.MitsubishiElectric.ca
Technical Support:
Toll Free: 888-307-0309
Email: [email protected]
Input And Output Terminals
D X - T L 4 5 1 6 U 16-Channel Digital Video Recorder
Item Description
Main Recording Medium Built-in 250 GB HDD; additional HDD can be installed
Archiving Internal DVD/CD drive (DVD-R/RW, CD-R/RW)
External Serial Bus I/F HDD (optional DX-ZD5UE); USB memory (copy only)
Color System NTSC
Signal Compression System JPEG2000
Number of Picture 720 x 240 pixels : field recording
Elements Processed 720 x 480 pixels : frame recording
Display Rate 960 fields/sec.
Recording Rate 120 fields/sec. at 720 x 240 pixels
Video Terminal Input 16-channel input; BNC: 1.0Vp-p 75 ⍀
Through 16-channel loop through output; BNC: 1.0Vp-p 75 ⍀
Output (with AC power supply)
Output A BNC 1-channel: 1.0Vp-p 75 ⍀
S terminal 1-channel : Y 1.0Vp-p 75 ⍀ր C 0.286Vp-p 75⍀
RCA output 1-channel (on front): 1.0Vp-p 75 ⍀
Output B BNC 1-channel : 1.0Vp-p 75 ⍀
Audio Recording System PCM
Audio Terminal Input 1-channel RCA-Pin plug: 308mV(rms), 50k ⍀
Output 1-channel RCA-Pin plug (on front and rear): 308mV(rms), 1k ⍀
Recording Interval Separately selectable for each camera with estimate of maximum
recording time
Alarm Recording Recording time : 2sec, 5sec, 10sec, 15sec, 30sec, 45sec, 1min,
2min, 5min, 10min, 20min, 30min, 60min and contact
Pre-alarm Recording Can be set from 1 sec. up to 1 hour (LPA)
Emergency Recording Emergency input terminal (rear)
Power Failure Recovery Recording Auto-restart of unit after power failure
HDD Usage Percentage display of hard disk space used
User Interface GUI menu
Menu Language English, French, and Spanish
Motion Detection Function 22(H) x 19(V) detection area, 5 sensitivity settings, dot number setting
to trigger recording
Clock Adjusting Function Clock adjusting input (rear terminal)
Retrieval Date & Time search, Alarm List search, Bookmark search, Motion search
Dome
Cameras
Remote
Control
Unit
(Optional)
Sensors / Switches
Camera ן16
CCD
Cameras
Alarm Devices
Viewing PC Monitor A Monitor B
LAN
USB Mouse
Keyboard
DX-KB5UE
(Optional)
Serial Bus
DX-ZD5
External HDD unit (Optional)
Serial Bus
Serial Bus
1 2
3 4
15-10-2004 00:42:00 1 2
3 4
15-10-2004 00:42:00
Recording Capacity 250GB
Picture Recording PPS (Camera total) Rec
Grade 120 80 60 48 32 30 16 13 10 8 4 2 1 0.5 0.25 0.125 Picture
L6-30KB 0d18h 1d3h 1d12h 1d22h 2d21h 3d1h 5d18h 7d2h 9d5h 11d13h 23d2h 46d5h 92d11h 184d22h 369d21h 739d19h 7,989,000
L5-25KB 0d22h 1d9h 1d20h 2d7h 3d11h 3d16h 6d22h 8d13h 11d2h 13d21h 27d18h 55d13h 111d2h 222d5h 444d10h 888d20h 9,599,000
L4-20KB 1d3h 1d17h 2d7h 2d21h 4d8h 4d15h 8d16h 10d16h 13d21h 17d9h 34d18h 69d12h 139d1h 278d2h 556d5h 1112d10h 12,013,000
L3-15KB 1d13h 2d7h 3d2h 3d20h 5d19h 6d4h 11d14h 14d6h 18d13h 23d4h 46d9h 92d19h 185d15h 371d6h 742d12h 1485d1h 16,038,000
L2-10KB 2d7h 3d11h 4d15h 5d19h 8d17h 9d7h 17d10h 21d10h 27d21h 34d20h 69d16h 139d9h 278d19h 557d14h 1115d4h 2230d8h 24,087,000
L1-4KB 5d19h 8d17h 11d15h 14d13h 21d19h 23d6h 43d15h 53d16h 69d19h 87d6h 174d12h 349d 698d 1396d 2792d1h 5584d2h 60,307,000
The above table displays the estimated recordable time (when recording on a 250 GB HDD) and shows the total number of recordable pictures Recording time - d:day h:hour
of all the cameras which are set for recording (without audio recording).
Item Description
Multiplexer Function Split display : 4, 9, 10, 13, 16 split display (output A/B)
Sequential display : 1, 4, 9 display (output A/B)
Covert camera display
Alarm display
Interface Inputs 16-channel ALARM IN
1-channel REC IN
1-channel REC STOP IN
1-channel EMERGENCY
1-channel CLOCK ADJ
Outputs 4-channel MODE/RELAY OUT
16-channel ALARM OUT
1-channel CALL OUT
1-channel CLOCK ADJ OUT
DC12V OUT
RS232C 1-port for DX-TL4516 control
RS422/RS232C/ 1-port for camera control
RS485
1-port for DX-KB5UE
Remote Access 1-jack for wired remote control unit connection
Serial Bus
2 x USB jack on front panel, 2 x USB on rear
LAN 1 port for 10/100 Base-T/TX for data comms
Remote Functions Web Live viewing, Playback and Search
PC Software Live viewing, Playback (access to multiple DVRs), Search, Image data
downloading, PTZ control, Alarm notification, Configuration, Recorder
control, Remote mode output control
Power Supply AC100-240V 50/60Hz
Power Consumption 0.9A (120V)
Operational Conditions Temperature: 5 °C-40°C; Humidity: 30%-80%; Altitude: 2000m max.
Dimensions (W x D x H) 16.7 x 13.9 x 5" (425 x 353 x 128 mm)
Weight 20 lbs. (9.1 kg) without HDD
Accessories AC power cord, Installer’s manual (English), User’s manual (English)
System Structure
Picture Perfect Security, Frame After Frame.
