Embedded Computers for Communication
>
UC-7408 Series
Hardware Specifi cations

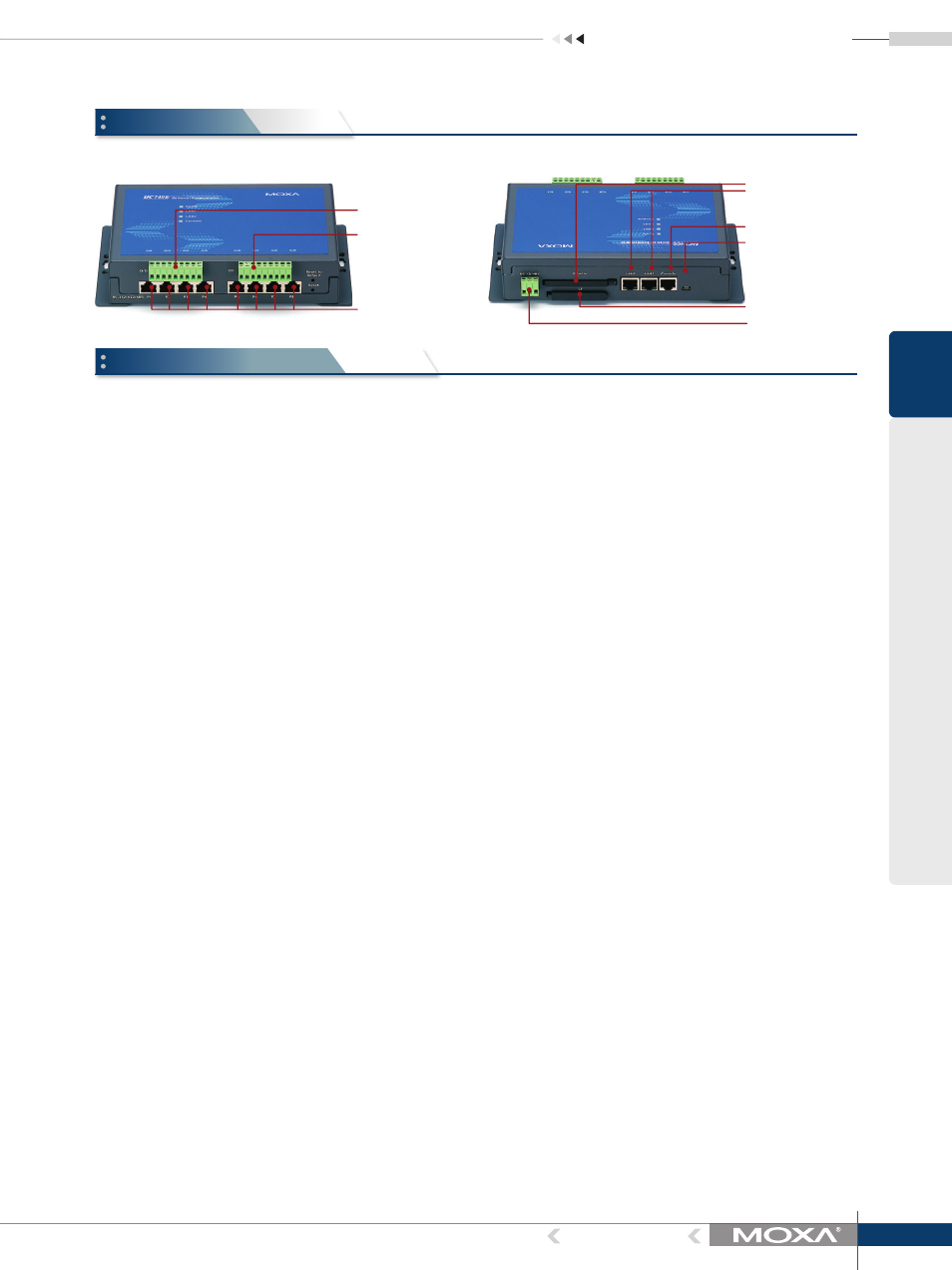

Front View Rear View
Appearance
8-ch Digital Output
8-ch Digital Output
RS-232/422/485 x
8, RJ45
USB 1.1 Client x 1
mini B connector
PCMCIA x 1
10/100 Mbps
Ethernet x 2
CF x 1
12 to 48 VDC
Power Input
RS-232 PPP/Console
Computer
CPU:
UC-7408: Intel XScale IXP422 266 MHz
UC-7408 Plus: Intel XScale IXP425 533 MHz
OS (pre-installed): Embedded Linux or Windows CE 5.0
DRAM: 128 MB onboard (256 MB for ODM)
Flash: 32 MB onboard
PCMCIA: Cardbus card and 16-bit PCMCIA 2.1 or JEIDA 4.2 card
Storage Expansion: CompactFlash socket
Ethernet Interface
LAN: 2 auto-sensing 10/100 Mbps ports (RJ45)
Magnetic Isolation Protection: 1.5 KV built-in
Serial Interface
Serial Standards: 8 RS-232/422/485 ports, software-selectable
(8-pin RJ45)
ESD Protection: 15 KV for all signals
Console Port: RS-232 (all signals), RJ45 connector, supports PPP
Serial Communication Parameters
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, XON/XOFF, ADDC® (automatic data
direction control) for RS-485
Baudrate: 50 bps to 921.6 Kbps (supports non-standard baudrates;
see user’s manual for details)
Serial Signals
RS-232: TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND
RS-422: TxD+, TxD-, RxD+, RxD-, GND
RS-485-4w: TxD+, TxD-, RxD+, RxD-, GND
RS-485-2w: Data+, Data-, GND
Digital Input
Input Channels: 8
Input Voltage:
• Logic 0: 0-0.8 V
• Logic 1: 2.0-5.5 V
-24 mA
Digital Output
Output Channels: 8
Output Current: 24 mA
Output Voltage:
• Logic 0: 0-0.55 V
• Logic 1: 2.5-3.3 V
LEDs
System: OS Ready, Console (TxD/RxD)
LAN: 10M/100M x 2
Serial: TxD x 8, RxD x 8
Physical Characteristics
Housing: SECC sheet metal (1 mm)
Weight: 870 g
Dimensions: 197 x 44 x 125 mm (7.76 x 1.73 x 4.92 in)
Mounting: DIN-Rail, wall
Environmental Limits
Operating Temperature:
Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Operating Humidity: 5 to 95% RH
Storage Temperature: -20 to 80°C (-4 to 176°F)
Anti-vibration: 1g @ IEC-68-2-6, sine wave, 5-500 Hz, 1 Oct./min, 1
hr/axis
Anti-shock: 5g @ IEC-68-2-27, half sine wave, 30 ms
Power Requirements
Input Voltage: 12 to 48 VDC
Power Consumption: 7.6 W
• 315 mA @ 24 VDC
• 628 mA @ 12 VDC
Regulatory Approvals
EMC: CE (EN55022 Class A, EN61000-3-2 Class A, EN61000-3-3,
EN55024), FCC (Part 15 Subpart B, CISPR 22 Class A)
Safety: UL/cUL (UL60950-1, CSA C22.2 No. 60950-1-03), TÜV
(EN60950-1)
Reliability
Alert Tools: Built-in buzzer and RTC (real-time clock)
Automatic Reboot Trigger: Built-in WDT (watchdog timer)
Warranty
Warranty Period: 5 years
Details: See www.moxa.com/warranty
