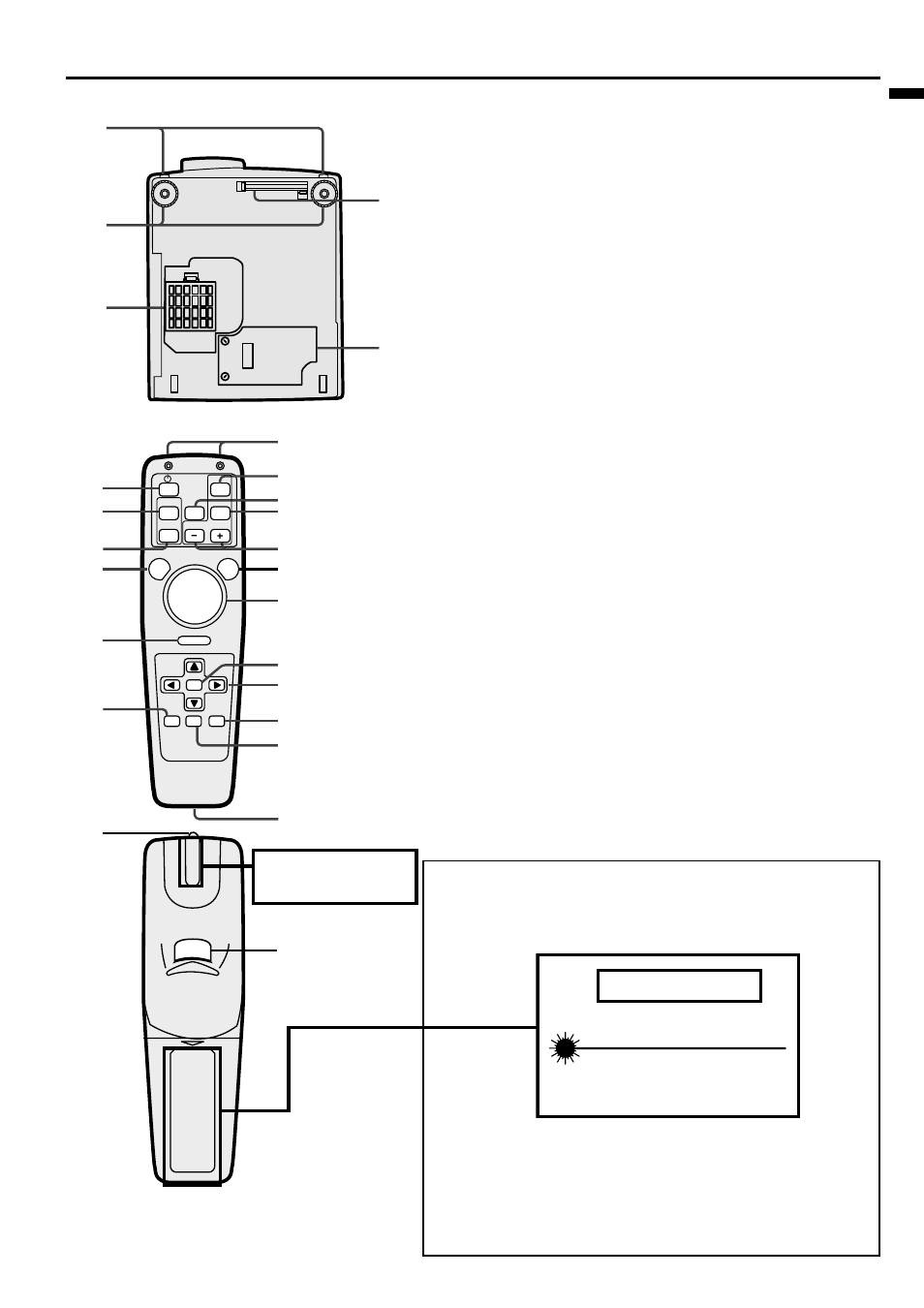

Bottom side
1
3
2
4
5
1 Release buttons (Left/Right)
2 Adjustment foot (Left/Right)
3 Air inlet cover (bottom) /
Filter cover (For bottom air inlet slots)
4 Lamp cover
5 Filter cover (For front air inlet slots)
Caution:
Do not replace the lamp right after using the projector.
The lamp is very hot.
Remote control
1 Power button
2 COMPUTER button
3 AUTO POSITION button
4 MENU button
5 RIGHT CLICK button (For mouse)
6 EXPAND button
7 Wired remote control jack
8 Picture in Picture (PinP) button
9 STILL button
10 Direction buttons
11 ENTER button
12 Mouse pointer button
13 LASER button
14 + , – buttons
15 ZOOM/FOCUS button
16 VIDEO button
17 MUTE button
18 Remote control transmitter
19 Laser aperture
20 Left click button (For mouse)
ENTER
RIGHT CLICK
LASER
COMPUTER VIDEO ZOOM/
FOCUS
MUTE
VOLME AUTO
POSITION
MENU
P in P EXPAND STILL
1
2
3
4
5
6
8
16
18
17
15
14
13
12
11
9
20
19
10
7
About laser beam
This remote control is class 2 (max. output 1 mW laser diode
640 - 660 nm) laser equipment.
Beam Divergence : 6m distance about 10.0mm x 10.0mm (
±
6.0mm)
LASER RADIATION
DO NOT STARE INTO BEAM
WAVE LENGTH : 640 - 660 nm
MAX OUTPUT : 1 mW
CLASS 2 LASER PRODUCT
IEC 60825-1:1993+A1:1997
CAUTION
CAUTION :
• Pressing the LASER button provided remote control emits
laser beam. Do not look into the beam light directly. Do not
point the laser beam at people. Looking the laser beam directly
may damage eyesight.
• Use of controls or adjustments or procedures other than those
specified herein may result in hazardous radiation exposure.
AVOID EXPOSURE - LASER
RADIATION IS EMITTED
FROM THIS APERTURE.
