SPECIFICATIONS
HTB1 Satellite/Center Channel
Driver Complement
Midrange- 3” shielded with paper cone, foam surround
Tweeter- 1/2" Balanced dome tweeter
Frequency Response: 150Hz - 20kHz
Impedance: 8 ohms nominal
Power Handling: 75 watts RMS / 150 watts peak music
Recommended Amplifier Power: 20-100 watts RMS
Sensitivity: [email protected]/1M
Weight:
Satellite- 1.8 lbs.
Center Channel- 3.0 lbs
Dimensions:
Satellite- 6"H X 4 1/8"W X 4 1/8"D
Center Channel- 4 1/8"H X 9 11/16"W X 3 7/8"D
HTB1 Subwoofer
Driver Complement
Woofer- 8" high excursion woofer
Amplifier Power: 120W Peak Music Power
Crossover Frequency: continuously variable 50Hz-150Hz
Frequency Response: 50Hz - 150Hz
Enclosure: tuned port design
Weight: 16.5 lbs.
Dimensions: 13 3/4” H X 10” W X 13 3/16” D
Optional Installation Accessories
A. Feet for Satellites
Included in the system are rubber feet that allow you to raise the Satellite
Speakers up off of a level surface. Simply peel each of the four feet off the
sheet and press on to the bottom of the Satellite Speaker. Repeat steps for
the remaining Satellite Speakers.
B. Feet for Center Channel
Included in the system are plastic feet that allow the Center Channel to be
angled more horizontally on top of your television monitor. If you wish to use
the feet, simply insert the knurled end of the feet into the two holes in the lower
rear of the Center Channel.
RIGHT
FRONT
LEFT
FRONT
45
LEFT
REAR
RIGHT
REAR
HTB1
SUBWOOFER
LISTENING AREA
CENTER
FRONT

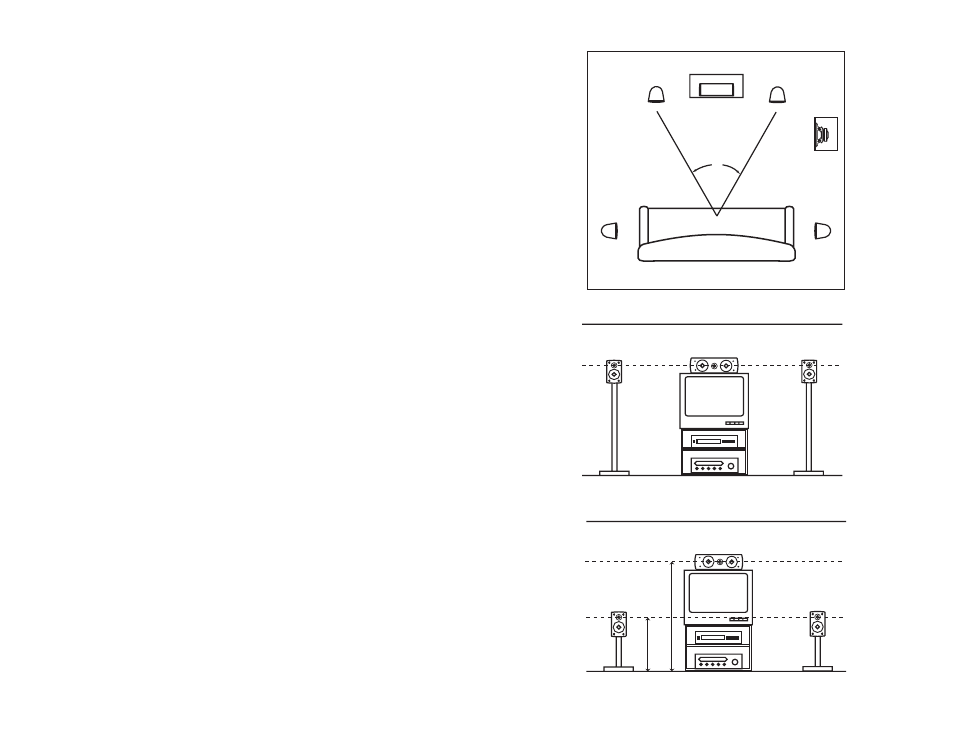

Figure 1- Typical loudspeaker placement in a home theater system.
Figure 2- Proper placement of left/center/right front speakers.
Figure 3- Improper placement of left/center/right front speakers
