Full overlay panel installation instructions – Marvel Industries 6CiM User Manual
Page 6
STEP 5: ATTACHING THE OVERLAY PANEL TO THE
DOOR (WITHOUT THE LOCK AND KEY FEATURE)
If the door is attached to the unit, remove it by un-
1.
screwing the top Allen head set screw at the top hinge.
Remove the door by angling the door off of the bottom
hinge pin.
Peel back door gasket to expose the screw holes.
2.
Set the overlay panel flush to the front of the door in
3.
the desired location. Clamp overlay panel to the door
if necessary.
Insert the wood screws through the back of the door
4.
into the pilot holes in the overlay panel and tighten.
Reinstall door gasket by pressing into door channel.
5.
Make certain the corners are inserted fully.

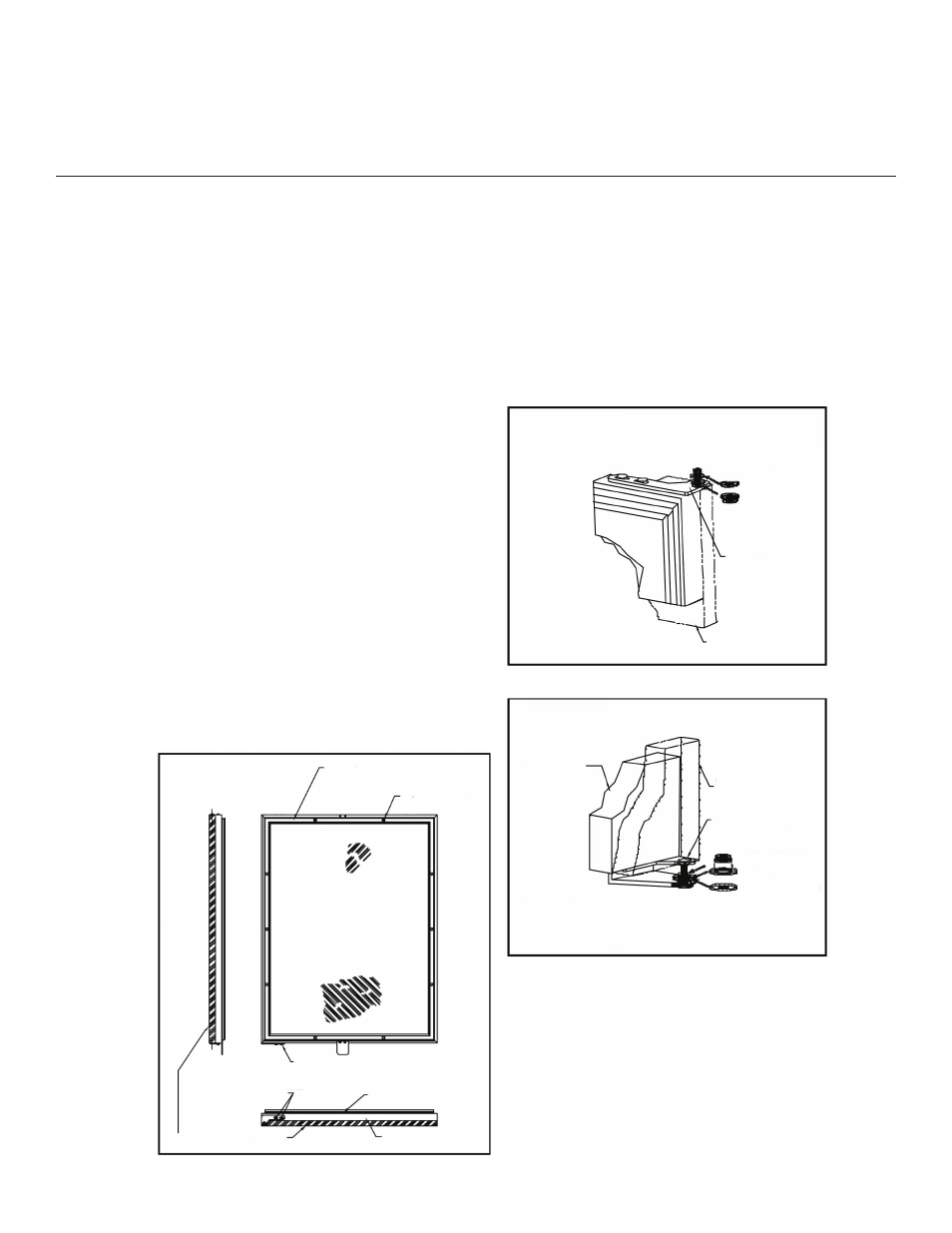

Install the door to the unit. Use the supplied plastic
6.
washers as shown in Figure 7.
Realigning the door may be necessary. Any final door
7.
adjustments can be made using a 5/32 inch Allen
head driver to adjust the door’s hinge bushing brackets
(see Figure 8).
Attach the door light striker plate as shown using the
8.
Hex or Phillips head screws provided. Make certain the
light is able to turn on and off when the door is opened
and closed.
Attach the door to the unit by reversing step number 1
9.
above.
Top Hinge Corner
Bottom Hinge Corner
Attached Overlay
Panel
Bottom of Door
Light Door Striker
Door Hinge Bushing Bracket
Adjustment Screws
5/32 inch Allen Head Screws for Door Hinge
Bushing Bracket Adjustment
Rear of Door
Magnetic Door
Gasket
0.38 dia Clearance
Holes for Screws
8 Holes
CAUTION
Door may not swing
properly if all nylon
components are not
installed as shown.
Door Hinge Bushing
Bracket
Refrigerator
Door
CAUTION
Door can become
disengaged if washers
are not installed.
3 Nylon Hardware
Components at
Bottom Hinge
0.75 OD x 0.257 ID
Washer
0.75 OD x 0.443 ID
Washer
Shoulder Bushing
Overlay Panel
CAUTION
Door can become
disengaged if washers
are not installed.
Overlay Panel
Door Hinge Bushing
Bracket
Shoulder Bushing
0.625 OD x 0.218 ID
Washer
2 Nylon Hardware
Components at
Top Hinge
FULL OVERLAY PANEL INSTALLATION INSTRUCTIONS
5
Figure 7
Figure 8
