Installing the decor panel
The door can be fitted with a
customized door panel (optional
accessory) to match the adjacent
cabinets.
Decor panel measures :
Width 23
1
/
4
" (591 mm)
Height 23
1
/
4
" (590 mm)
Thick
1
/
16
" -
3
/
16
" (0.6 - 4 mm)

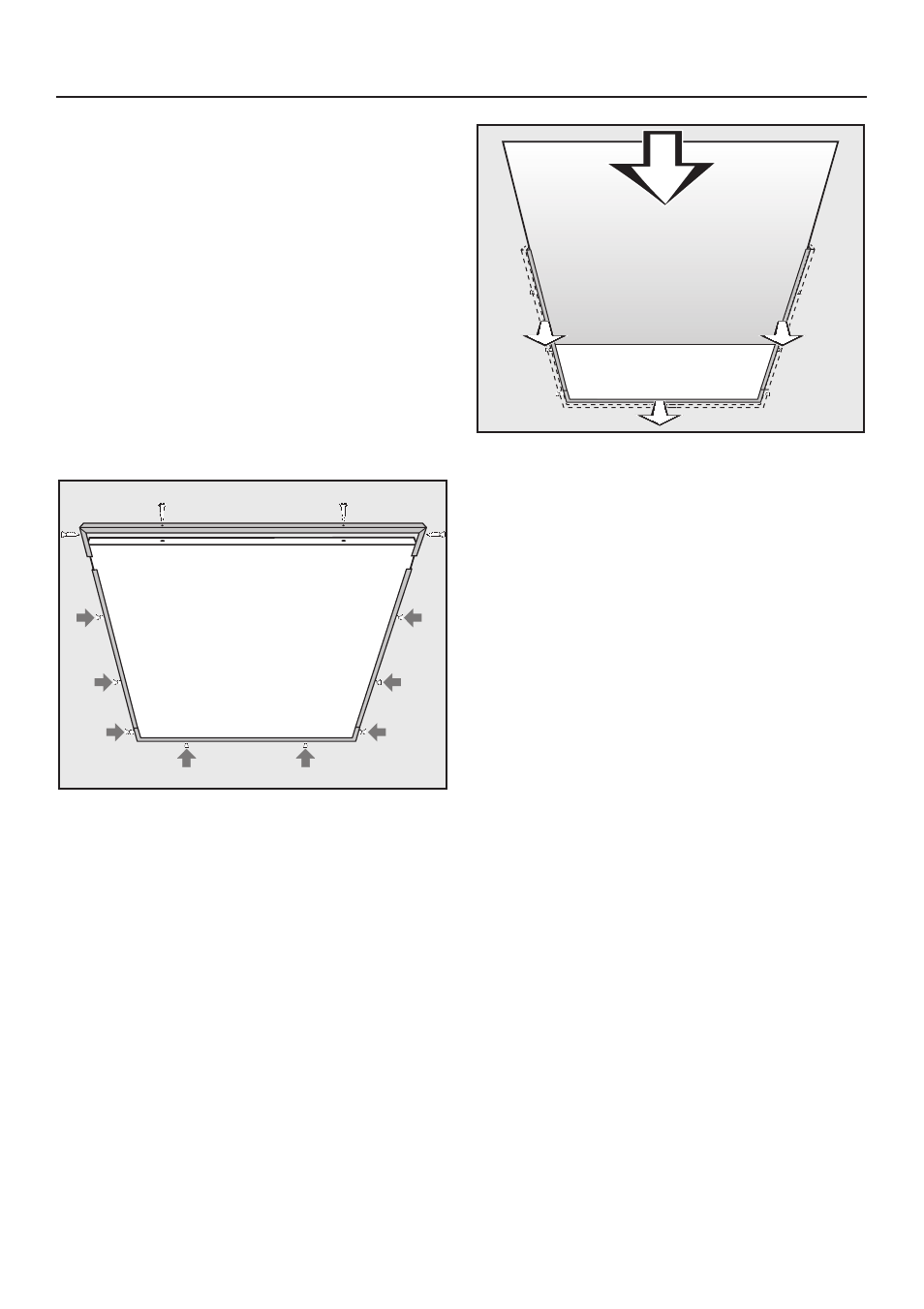

^ Open the door.
^ Unscrew the 4 screws at the top of
the decor frame, and pull it forward.
^ Loosen the screws at the other sides
of the decor frame but do not
remove.
^ A decor panel up to 3
/
16
" thickness
can be inserted if the frame sides are
pushed forward.
^ Insert the decor panel from above.
^ Press the frame sides onto the panel
and tighten the screws.
^ Push the top of the decor frame onto
the frame from the front and attach
it with the four screws.
Installation
46
