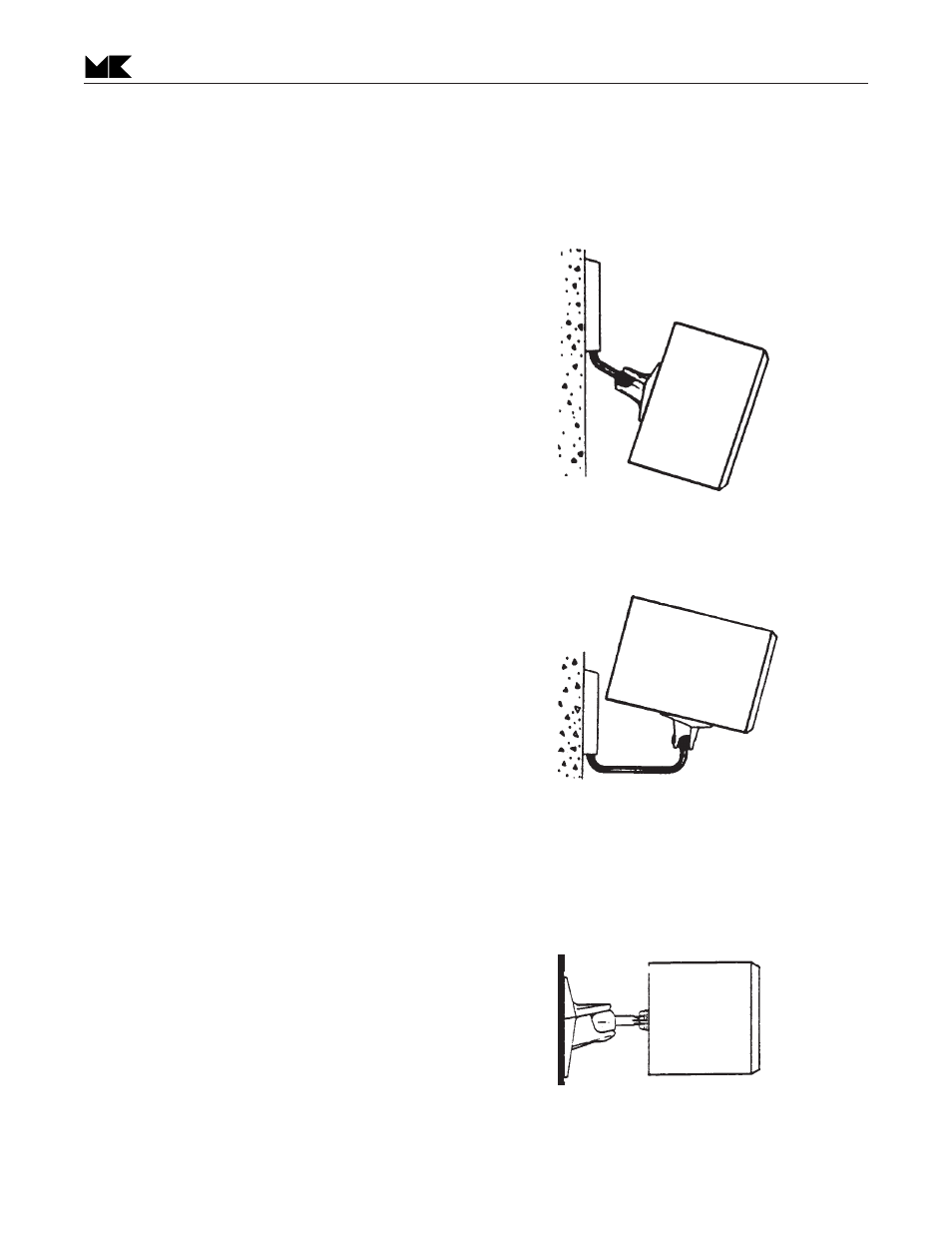

FIGURE 7
SELECTING THE RIGHT OMNIMOUNT ® BRACKET
S-100B
S-90
(when threaded inserts are on the
back of the S-90)
USE OMNIMOUNT ® 75-WA
Four threaded inserts are
located on the back baffle of the
cabinet. Mount the bracket to the
speaker using 5/8" long 1/4" x 20
pan head or round head machine
screws. Use only an OmniMount
®
Series 75 mounting bracket.
S-90
(when threaded inserts are on the
bottom of the S-90)
USES OMNIMOUNT ® 75-WB
Four threaded inserts are
located on the bottom (or top,
when the speaker is inverted) of the
cabinet. Mount the bracket to the
speaker using 5/8" long 1/4" x 20
pan head or round head machine
screws. Use only an OmniMount
®
Series 75 mounting bracket.
S-80
USES OMNIMOUNT ® 53-RST
A single 3/8" threaded insert is
located on the back baffle of the
cabinet. Use only an OmniMount
®
53 RST (special order) bracket.
