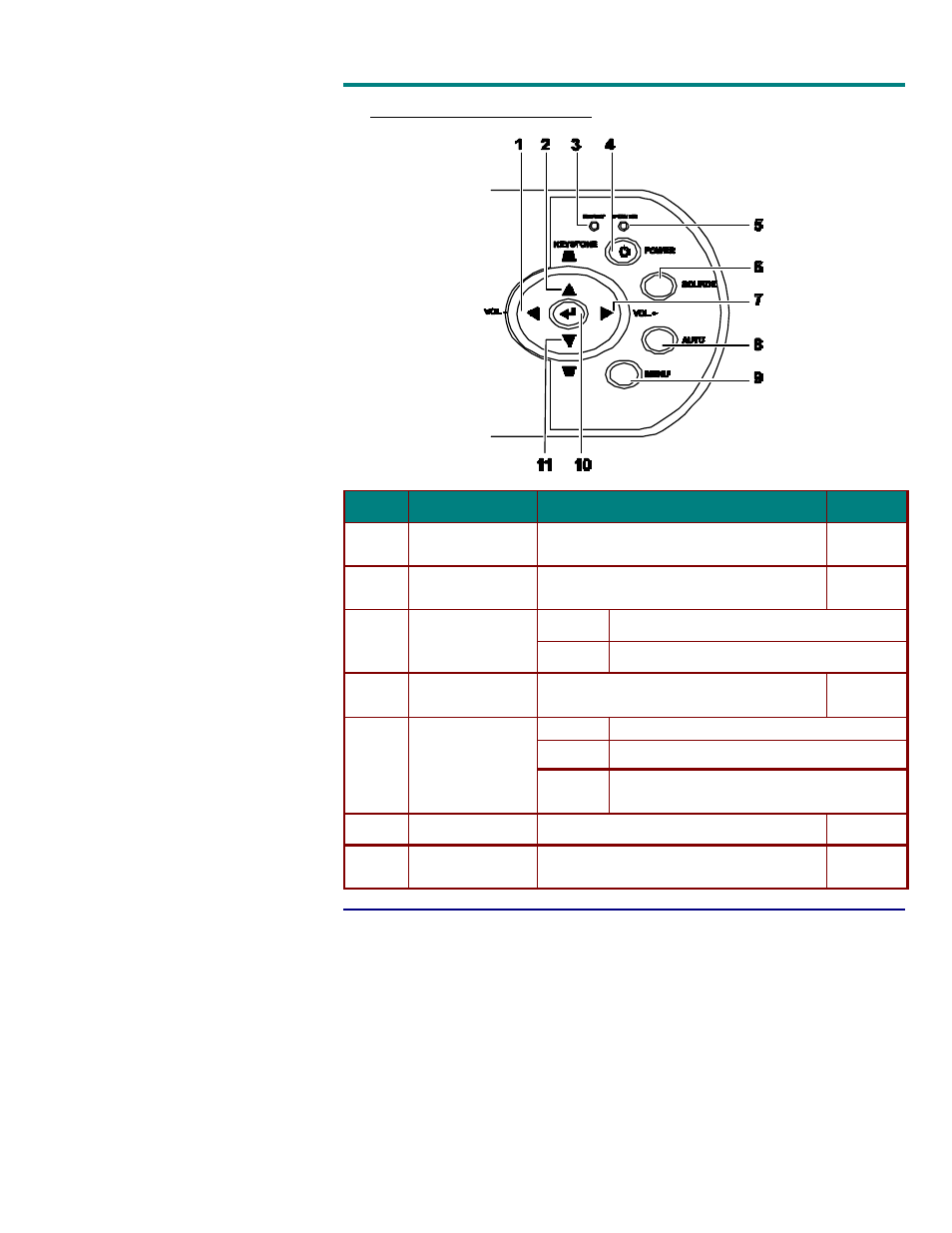

Top view —OSD buttons and LEDs
I
TEM
L
ABEL
D
ESCRIPTION
S
EE PAGE
:
1.
Volume/
left cursor
Decreases volume
Navigates and changes settings in the OSD
16
2.
Keystone/
Up cursor
Corrects image-trapezoid (narrower top) effect
Navigates and changes settings in the OSD
15
Orange
Lamp ready —you can safely turn on or off the projector
3.
Ready (LED)
Flashing
Lamp not ready — do not press the power button
4.
Power
Turns the projector on or off (main power switch must
be turned on first, see item 8 on page 5)
13
Green
Unit is powered on and working correctly
Off
Unit is powered off
5.
Power (LED)
Flashing
Operational error code
(refer to “LED Error Messages” on page 32)
6.
Source
Detects the input device
13
7.
Volume/
right cursor
Increases volume
Navigates and changes settings in the OSD
16
