EN – 28
Specifications (continued)
1 Sticker for Anti-Theft Alarm 853C588-10
1 Filter 620D119-10
1 Remote control 939P955-10
4 Battery –
1 Safety manual / Quick start up 871D389-20
1 CD-ROM 919C132-20
Connectors

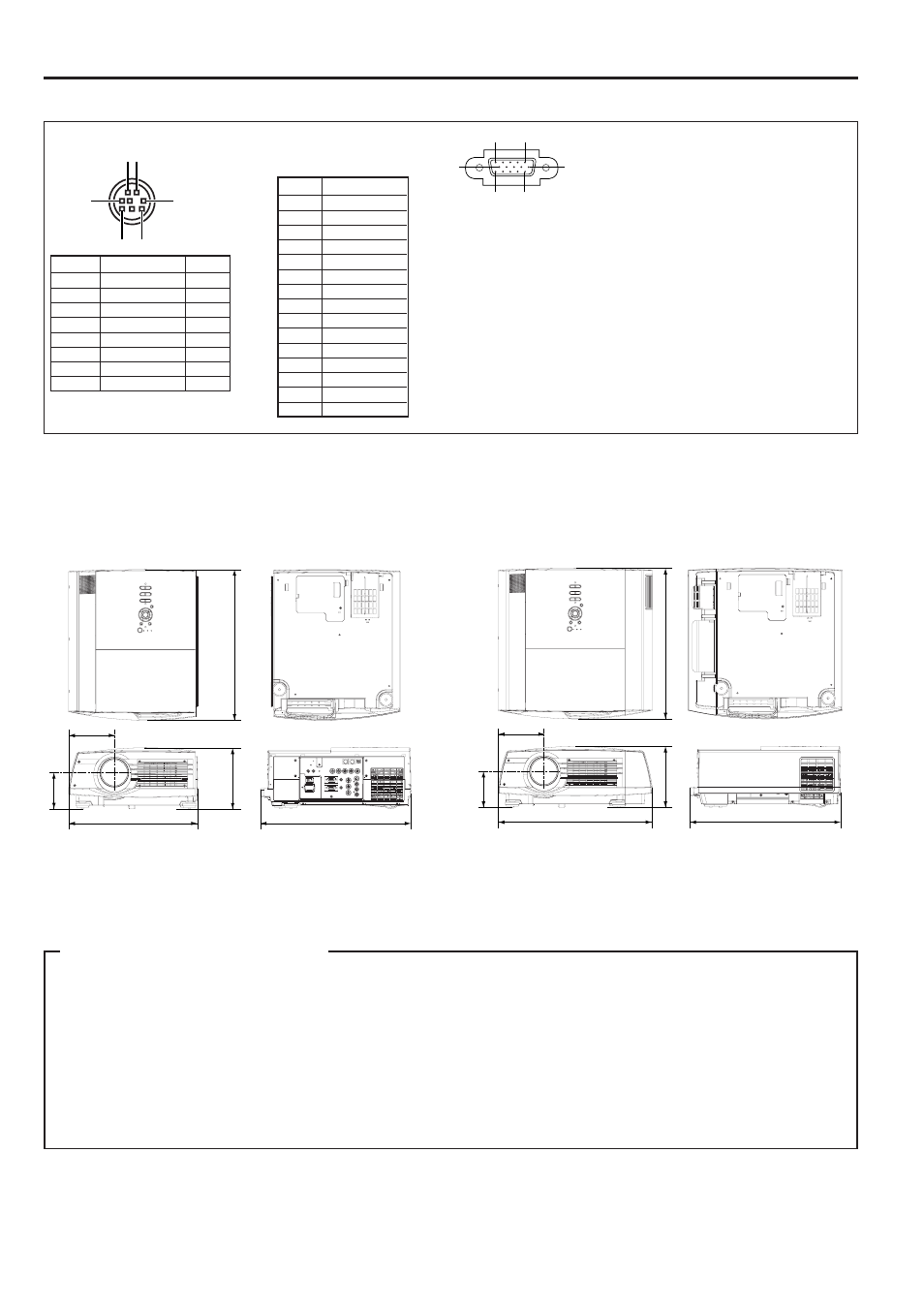

Dimensional drawings
(mm)
Replacement part
(Option / Not included in the box)
Spare marcury lamp VLT-XL5950LP
What’s included in the box
2 AC power cord 246C483-10
246C383-20
1 Audio/Video cable 246C381-10
1 RGB cable for PC 246C448-10
2 RS-232C cable 246C447-10
1 Terminal cover
(with Anti-Theft Alarm device)
955B288-01
2 Safety pin 450D057-10
PIN No. SPEC
1 R(RED)/C R
2 G(GREEN)/Y
3 B(BLUE)/C B
4 GND
5 GND
6 GND
7 GND
8 GND
9 –
10 GND
11 GND
12 DDC Data
13 HD/CS
14 VD
15 DDC Clock
COMPUTER IN/OUT
(Mini D-SUB 15P)
PIN No. NAME I/O
1 TXD IN
2 – –
3 DTR IN
4 GND –
5 CTS / 5V IN/OUT
6 DCD / CLOCK OUT
7 RXD OUT
8 RI / DATA OUT
RS-232C (8P)
1
3 5
2
6 8
1 5
11
6 10
15
434 371
131.5*
103*
176
434
443
176
434
434
131.5*
103*
With Terminal cover
* Factory-defaults of XL5980U * Factory-defaults of XL5980U
*
*
*
* : For RS-232C/MOUSE terminal
*
