MASTER-CHILL ™ MCR-33-101 & MCR-33-102 SERIES
ROLL-IN & PASS-THRU BLAST CHILLERS
BLAST CHILLER TECHNICAL SPECIFICATIONS

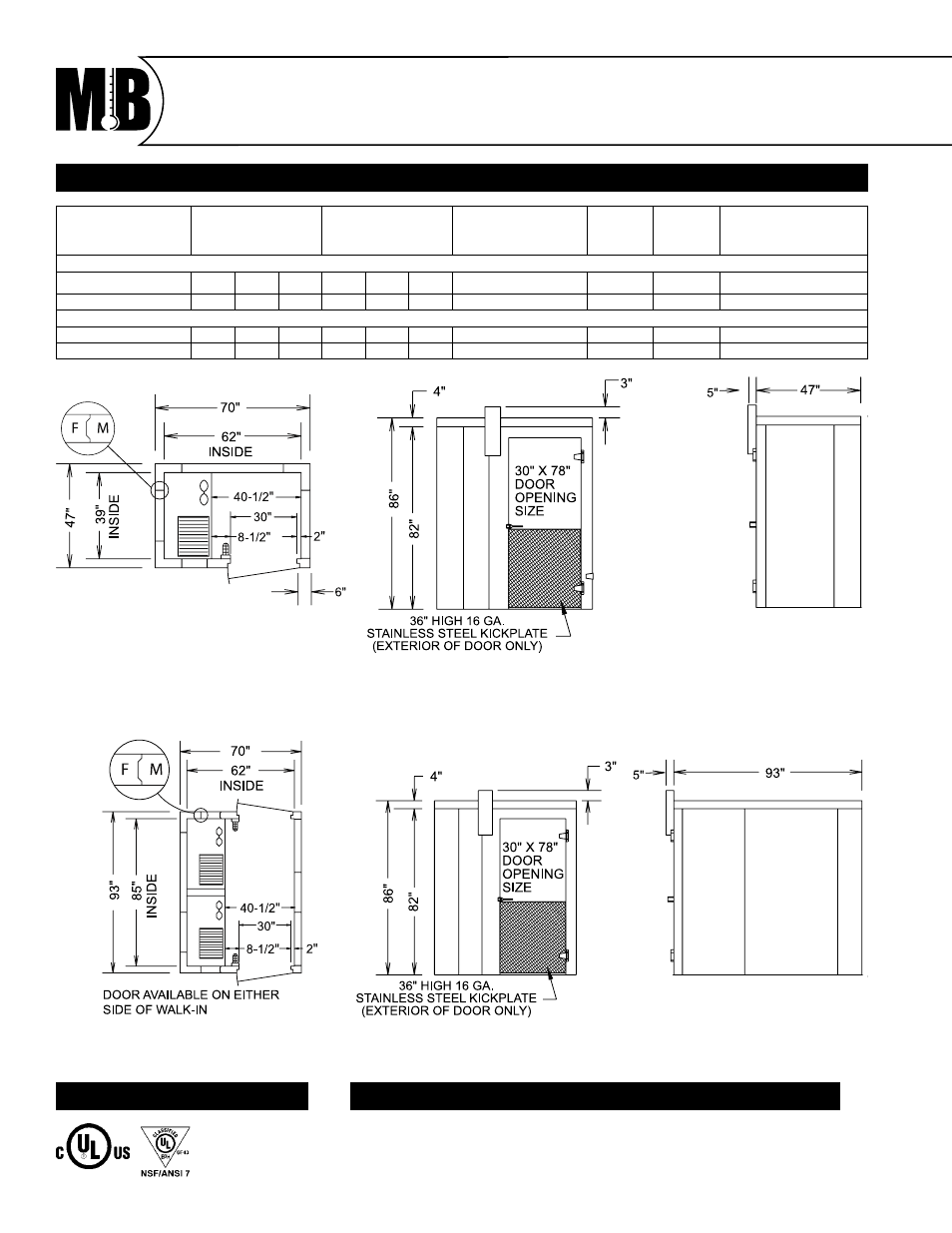

MCR-33-101 PLAN VIEW MCR-33-101 SIDE VIEW
DIMENSIONS
(in inches)
DIMENSIONS
(in millimeters) MAX.
MODEL L D* H* L D* H* VOLTS MCA FUSE SHIP WT. LB/KG
ROLL-IN
MCR-33-101
70 52 89 1778 1194 2184 208-230/1ph/4-wire 9 15 1500/682
MCR-33-102 70 98 89 1778 2362 2184 208-230/1ph/4-wire 16 20 3000/1364
PASS-THRU
MCR-33-101PT
70 52 89 1778 1194 2184 208-230/1ph/4-wire 9 15 1500/682
MCR-33-102PT 70 98 89 1778 2362 2184 208-230/1ph/4-wire 16 20 3000/1364
*Depth and height include control panel.
MCR-33-102 SIDE VIEW
LISTINGS HOOKUP
Hardwire, remote refrigeration.
2
MCR-33-102 PLAN VIEW
MCR-33-101 ELEVATION VIEW
MCR-33-102 ELEVATION VIEW
