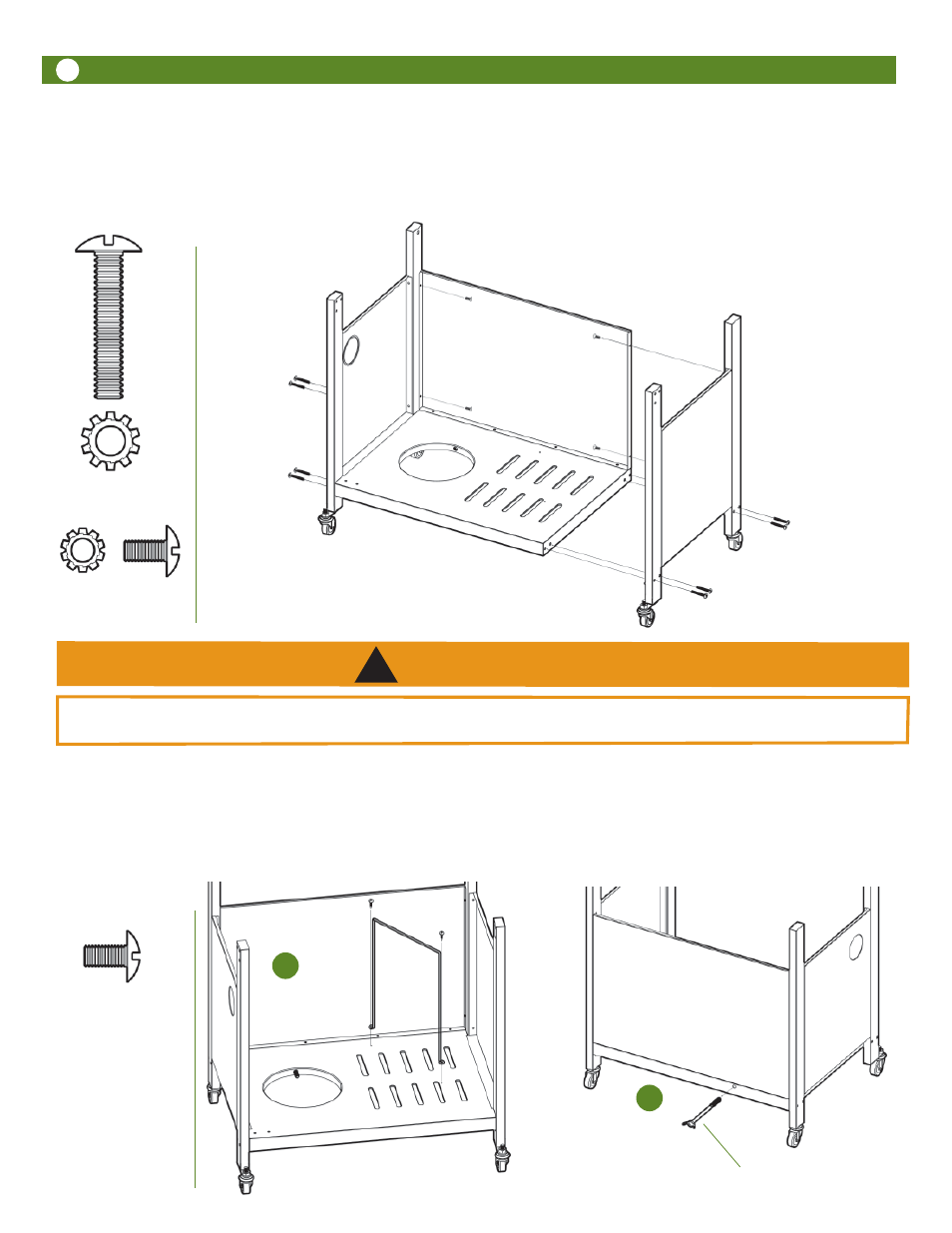

Step 3
Cart Frame Assembly
Attach Left Leg Frame and Right Leg Frame to Cart Bottom Panel with eight 1/4-20 x 1.50” Bolts. Fit one Frame onto
Bottom Panel at a time and insert the 1.50” bolts through the Legs into the sides of the Bottom Panel. Attach the Back
legs to the Back Panel with four 5/32-30 x .31” bolts. Tighten all securely.
To reduce the risk of serious bodily injury or death from fire or explosion:
Never remove guards or devices to prevent storage of spare or oversize LP Gas Cylinders not recommended for this grill.
WARNING
!
1/4-20 x 1.50” Bolt set
8 pc
Step 4
Cylinder Blocking Wire and Cylinder Retainer Bolt Assembly
A. Attach Cylinder Blocking Wire Cabinet Bottom with two 5/32 x .47” Bolts.
B. Install the Cylinder Retainer Bolt through the hole in the back of the Bottom Shelf and into the nut welded underneath.
Cylinder Retainer Bolt
5/32 x .31” Bolt set
4 pc
5/32 x .47” Bolt
2 pc
A
B
