WIRING AND CONNECTIONS
Turn off all power to your subwoofer and other equipment before making any connections.

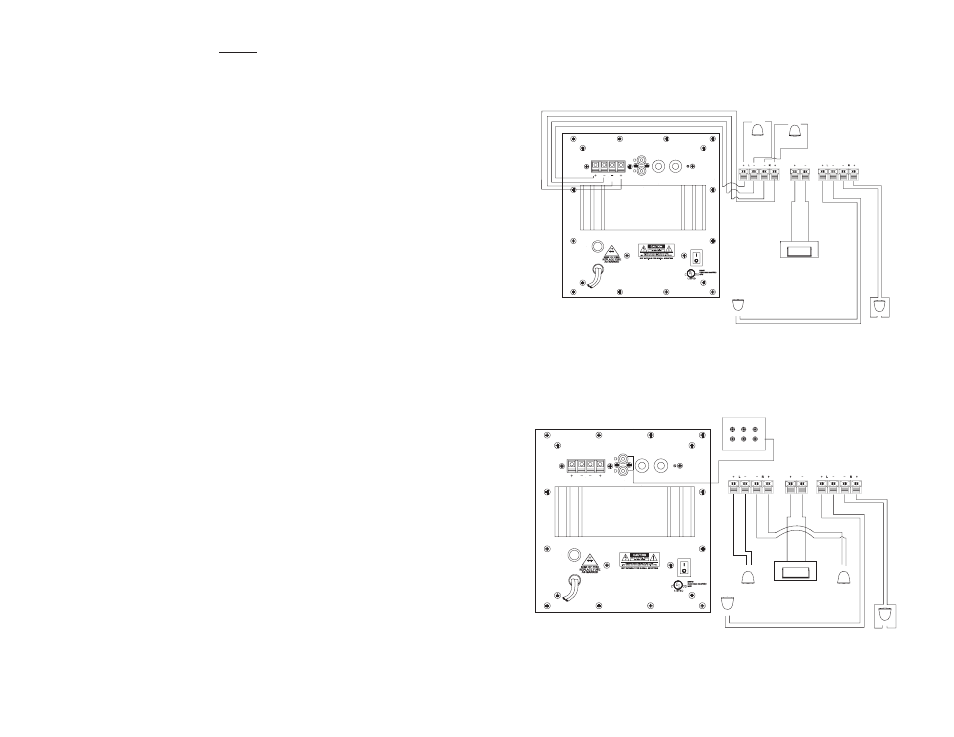

Installation using speaker level inputs (Figure B).
FRONT CENTER SURROUND
A/V Receiver or Amplifier
LEFT
REAR
RIGHT
REAR
CENTER
FRONT
+ -
+- +-
HI LEVEL IN
R L
L
R
LINE IN MIN MAX 50Hz 150Hz
POWER
ON
OFF
FUSE 1A/250V
Made In China
GAIN FREQ FROM AMPLIFIER
120 VAC
100 WATTS
60 HZ
LEFT
FRONT
+ -
RIGHT
FRONT
+ -
1A 250V
Installation with A/V amplifiers and receivers that have 5.1 channel line level output (Figure
C).
Use and RCA “Y” adaptor to connect both line level inputs .
FRONT CENTER SURROUND
A/V Receiver or Amplifier
RIGHT
FRONT
LEFT
FRONT
LEFT
REAR
RIGHT
REAR
CENTER
FRONT
+ - + - + -
+-
+-
OUTPUTS
SUB
HI LEVEL IN
R L
L
R
LINE IN MIN MAX 50Hz 150Hz
POWER
ON
OFF
FUSE 1A/250V
Made In China
GAIN FREQ FROM AMPLIFIER
120 VAC
100 WATTS
60 HZ
1A 250V
Figure B
Figure C
