DSP3100
Digital Signal Processing
Loudspeaker System
www.meridian-audio.com
Powerful, compact, high-
accuracy DSP loudspeaker
ideal for second room,
surrounds or nearfield/
surround studio monitoring
New dual amplifier design
based on the acclaimed
DSP8000 minimizes coloration
Self-contained audio system
with custom drivers, two
amplifiers, two digital
converters, digital crossovers
and advanced sound-shaping
DSP capability for maximum
fidelity
Listener remote control
features including bass, treble
tilt, listening axis, volume,
time-compensated balance
and absolute phase
Dynamic bass protection
system avoids LF distortion at
high levels
S/PDIF digital inputs support
up to 24-bit, 96kHz with MHR
Ultra-rigid cabinet features
aluminium panels bonded to
wood, bitumen damped for
the ultimate in low coloration
Available in matte black or
satin silver, with black piano
lacquered wood accents
Maximum output level
up to 108dB spl
Meridian’s acclaimed DSP-based
loudspeakers are unparalleled in the
industry. Each unit includes not only
carefully-chosen loudspeaker drivers
and excellent cabinet design and
acoustics, but also multiple power
amplifiers and D/A converters, and
the DSP power required to create
crossovers, filters and control systems
that would be completely impossible
in a conventional amp/passive speaker
configuration. This is why they sound
so unlike anything else you’ll hear.
The DSP loudspeaker is the ultimate
expression of Meridian’s loudspeaker
philosophy.
Active loudspeakers mean giving each
driver its own amplifier in direct and
close control of all its parameters.
DSP capability means crossover
specifications that cannot be matched
by conventional designs and bass
extension vastly superior to other
loudspeakers of the same volume,
while keeping the signal in the digital
domain until the last moment means
that there is an unbroken link between
the recording studio or concert hall and
your listening room.
The DSP3100 represents a breakthrough
in compact digital loudspeakers.
Available in vertical or horizontal
centre configuration, they deliver an
astonishing performance for their size,
and are ideal for stereo or surround
listening in smaller spaces. Their
accuracy and uncoloured sound also
makes them ideal for monitoring in
recording and mastering studios.

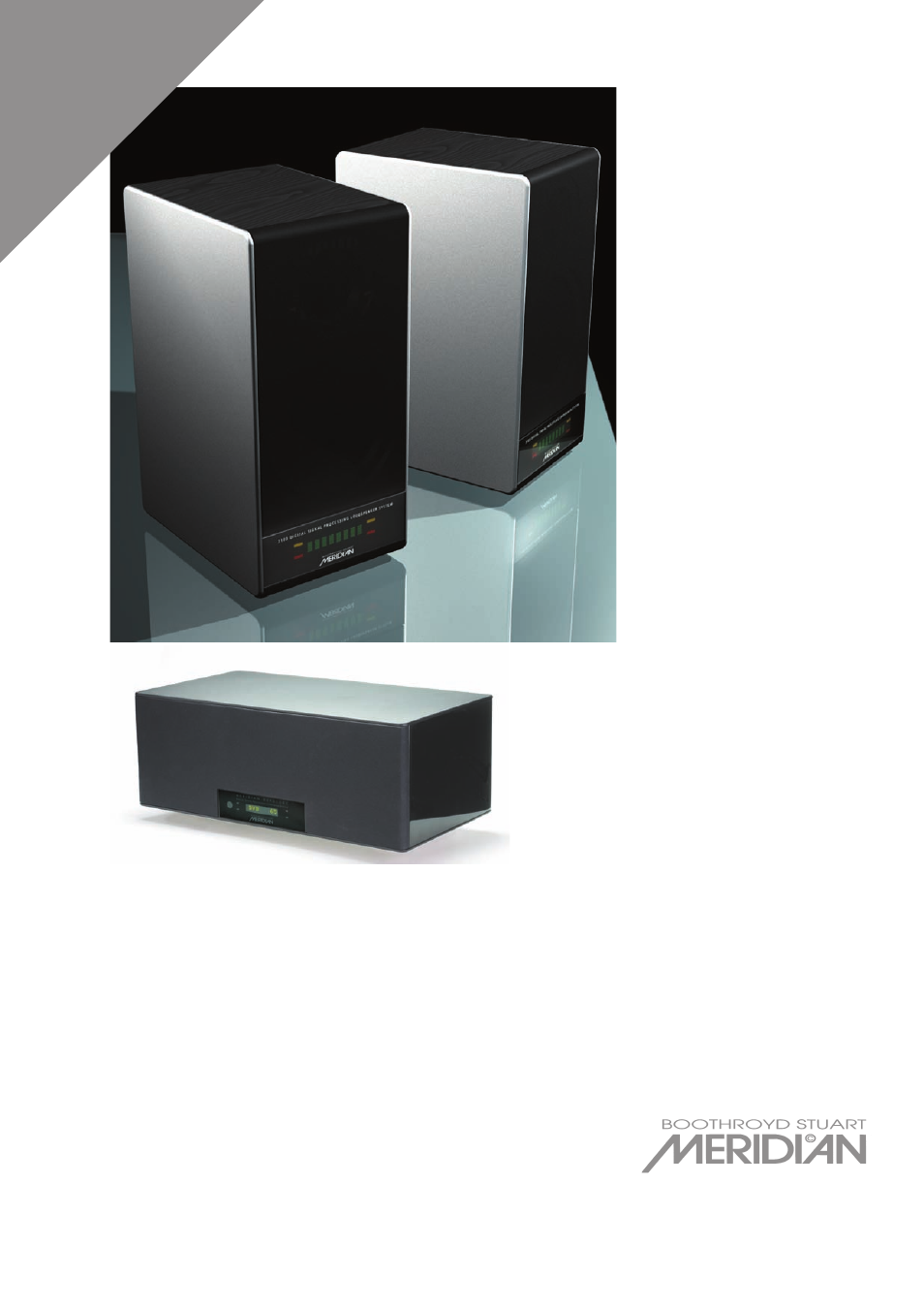

The DSP3100 is
available with
satin silver or black
with piano-lacquer
wood accents,
and in vertical
configuration
(above) or
horizontal centre
(DSP3100HC, left)
