Stand Removal and Installation 7
NOTE: The Theater is intended to be used with its stand
attached in almost all installation options. Stand Removal and
Installation instructions are provided in case you are using a
custom installation that does not require the use of the stand.
Removing the Stand
1. Support the Theater body by placing the shipping foam
on both ends of the speaker, or setting a stack of books
beneath both ends of the speaker cabinet. The mount
should hang down from the Theater and contact the
surface of your table or floor (see figure 4, step A).
2. Before beginning to remove the mount screws, please
note that the mount is held in place with 8 screws con-
nected to 4 brackets. These 4 brackets are attached to the
Theater cabinet. Do not remove these brackets from the
Theater cabinet. To detach the mount, remove 2 screws
from each of the 4 brackets (see figure 4, step B).
3. To remove the stand, simply pull it back, away from the
Theater cabinet (see figure 4, step C).
Installing the Stand
1. Support the Theater body by placing the shipping foam
on both ends of the speaker, or setting a stack of books
beneath both ends of the speaker cabinet. The speaker
cabinet should be raised high enough that when the
stand is moved into place, it can rest on the surface of
the table or floor (see figure 4, step A).
1. Carefully slide the stand into place so that it aligns with
the 4 brackets already attached to the Theater cabinet
(see figure 4, step C).
3. Insert and tighten 2 screws into each of the 4 brackets
(see figure 4, step B).
S
TAND
R
EMOVAL AND
I
NSTALLATION

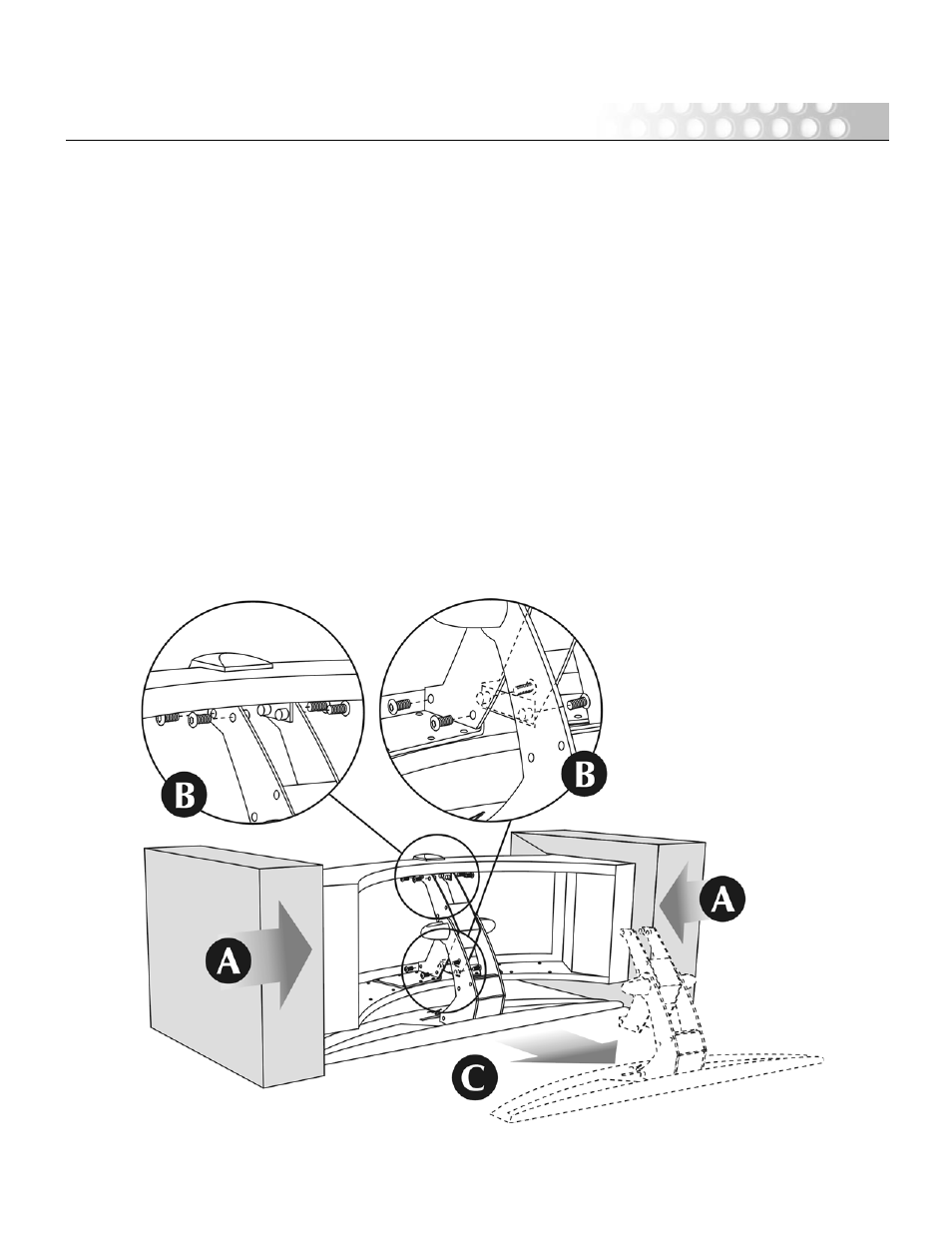

Figure 4. Stand removal and installation.
