Note: Diagrams aND illustratioNs are Not to scale.

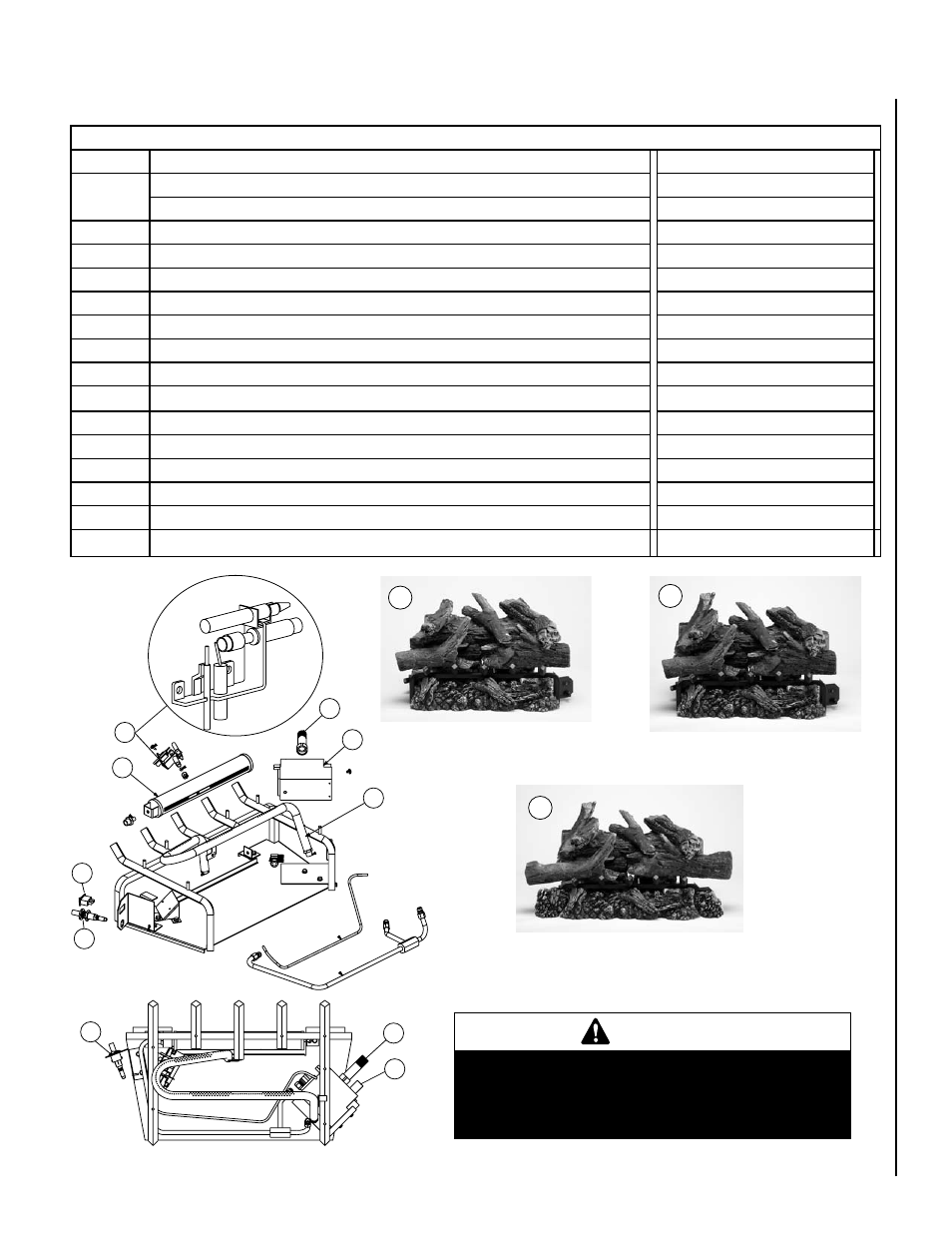

REPLACEMENT PARTS LIST (MILLIVOLT) - SHADOWDANCE™ SERIES
Replacement Parts List (Millivolt) - Shadowdance™ Series, Models LSVFSD-NG and LSVFSD-LP (18" and 24")
No.
Description
Catalog Number
1.
Valve, millivolt (Natural)
H10
Valve, millivolt (Propane, l.P.g.)
H478
2.
ember Bed Front
H910
3.
ember Bed rear
H911
4.
Bottom Burner
H91
5.
top Burner
H91
6.
Piezo igniter
10K86
7.
oDs Pilot assembly, millivolt (Natural)
H411
8.
oDs Pilot assembly, millivolt (Propane, l.P.g.)
H4170
9.
Knob extension, Pilot/on/off
60J74
10.
Knob extension, Hi/lo
60J95
11.
on/off switch
7K0
12.
Piezo igniter cable
H4868
13
18" log assembly
H517
14
4" log assembly
H518
15
0" log assembly
H519
4
7
6
6
5
NG Pilot
Assembly
1
10
10
9
Top View
11
18" Gas Log Set
24" Gas Log Set
13
14
WARNING
Failure to position the parts in accordance with these
diagrams or failure to use only parts specifically
approved with this heater may result in property
damage or personal injury.
30" Gas Log Set
15
