MODEL NO’S
H
RN4975S 75 Gallon Natural Gas
H
RP4975S 75 Gallon Propane Gas

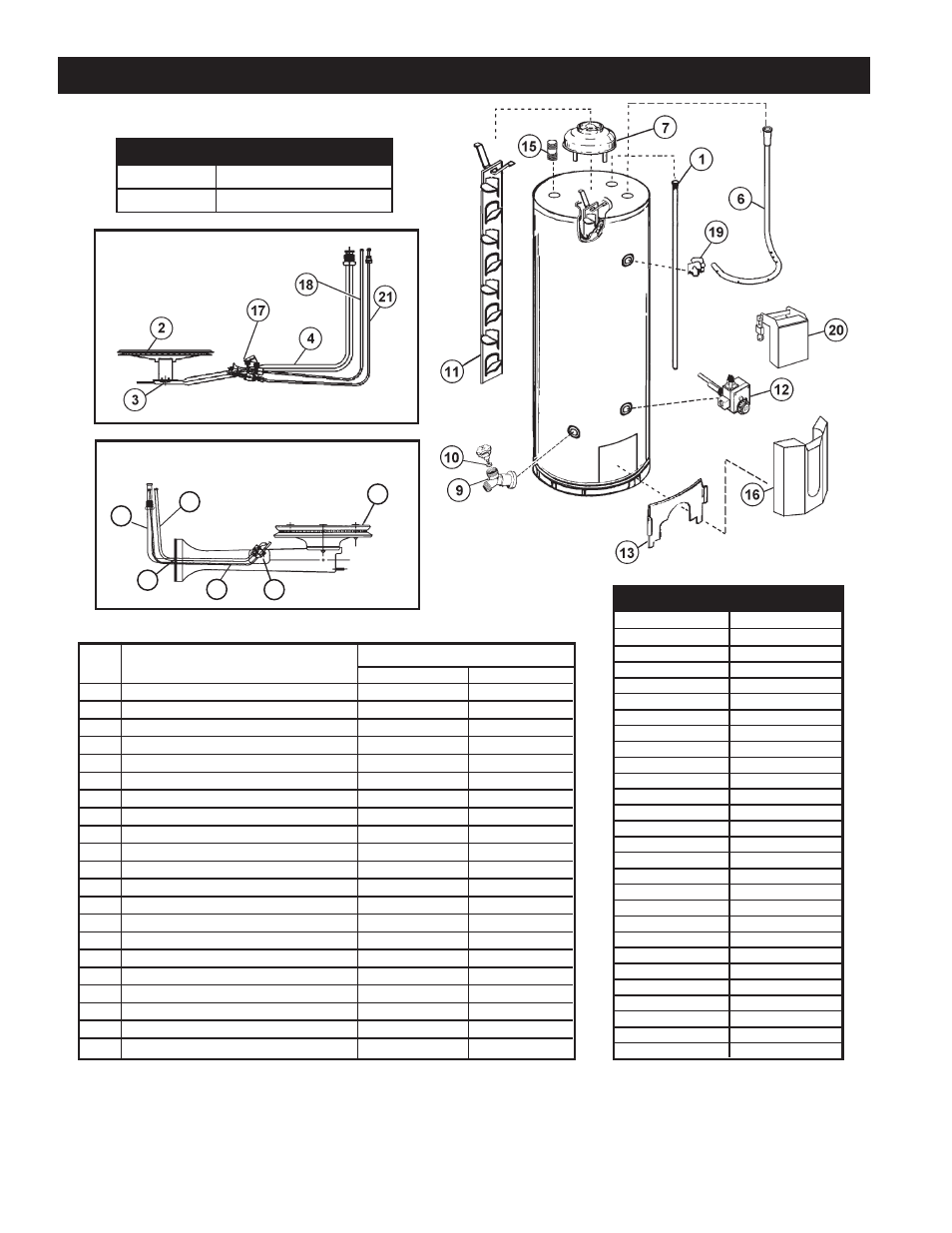

BURNER ASSEMBLY
MAYTAG GAS WATER HEATERS
PROPANE BURNER ASSEMBLY
Now that you have purchased this gas water heater, should a need
ever exist for repair parts or service, simply call Maytag Customer
Service at 1-800-788-8899 for an authorized servicer. Be sure to
provide all pertinent facts when you call or visit.
THIS IS A REPAIR PARTS LIST, NOT A PACKING LIST.
The model number of this gas water heater will be found on the
model rating plate located near the gas control valve.
When ordering repair parts, always give the following information:
• Model number
• Serial Number
Maytag/State Part
Number Conversion Key
• Part Description
• Part Number
4
2
17
* Not Shown.
Key
Model Number
No. Part Description H
RN4975S HRP4975S
1
Anode Rod
66001109
66001109
2
Burner Head
66001359
66001834
3
Burner Orifice - Std.
66001689 (#21)
66001841 (#38)
4
Burner Tube
66001690
66001846
*5
Compression Fitting
66001837
66001837
6
Dip Tube
66001683
66001683
7
Draft Hood
66001678
66001678
*8
Draft Hood Bracket
66001679
66001679
9
Drain Valve
66001015
66001015
10
Drain Valve Washer
66001021
66001021
11
Flue Baffle
66001677
66001849
12
Gas Control Valve
66001680
66001773
13
Inner Door
66001692
66001692
*14
Instruction Manual
66001853
66001853
15
Nipple (Hot Outlet)
66001684
66001684
16
Outer Door
66001190
66001190
17
Pilot Ass’y - Std. w/Compression Fitting
66001691
66001848
18
Pilot Tube
66001845
66001845
19
T & P Relief Valve
66001682
66001682
20
Thermostat Shield (Optional)
66001667
66001667
21
Thermocouple
66001843
66001847
MAYTAG
STATE
66001015
9002401
66001021
9001584
66001109
9001830
66001190
9000358
66001359
9003040
66001667
9003696
66001677
9003736
66001678
9003737
66001679
9003738
66001680
9003739
66001682
9003741
66001683
9003742
66001684
9003743
66001689
9003732
66001690
9003733
66001691
9003734
66001692
9003735
66001773
9003656
66001834
9004089
66001837
9004106
66001841
9004105
66001843
9003923
66001845
9003925
66001846
9004229
66001847
9004094
66001848
9004231
66001849
9004096
66001853
196302-001
