15
On-Screen Menu (continued)
SYSTEM CONFIGURATION SUBMENU
Use the System Configuration submenu to control various system parameters.
■ Gray Levels
Use the Gray Levels menu option to view 32 levels of flat field gray. This feature is useful for color temperature
comparison and calibration.
■ User-Definable Function Buttons
Use the Function 1 and Function 2 menu items to define each function button on the front panel of the monitor. The
following options are available for each button:
• Marker Enable and rotate amongst marker settings (choices depend on aspect ratio setting)
• Center Marker Enable/disable center marker
• Marker Backgrd Rotate amongst marker backgrounds
• IMD Display/hide IMD text
• Time Code Display/hide time code
• OSD Tally Rotate amongst types of OSD Tally
• Audio Monitor Display/hide audio presence indicator
• Aspect Ratio Toggle between 4:3 and 16:9 aspect ratios
• Pixel to Pixel Enable/disable Pixel-to-Pixel mode
• Ctemp/Gamma Rotate amongst color temperature settings
• Blue Only Enable/disable Blue Only mode
• Monochrome Enable/disable Monochrome mode
■ Saving and Loading User Presets
Use the SAVE CONFIG and LOAD CONFIG menus to save current settings to one of 6 presets, or load a preset. Each
Preset saves all monitor settings except for IMD configuration.
• Use the LOAD CONFIG menu to load one of presets USR1 – USR6. Factory default settings can also be loaded
by selecting MFG. (Factory defaults cannot be overwritten.)
• Use the SAVE CONFIG menu to save the current settings to a preset from USR1- USR6.
■ Software Version Display
The Main Board, Keypad, and CPLD software version numbers are displayed.

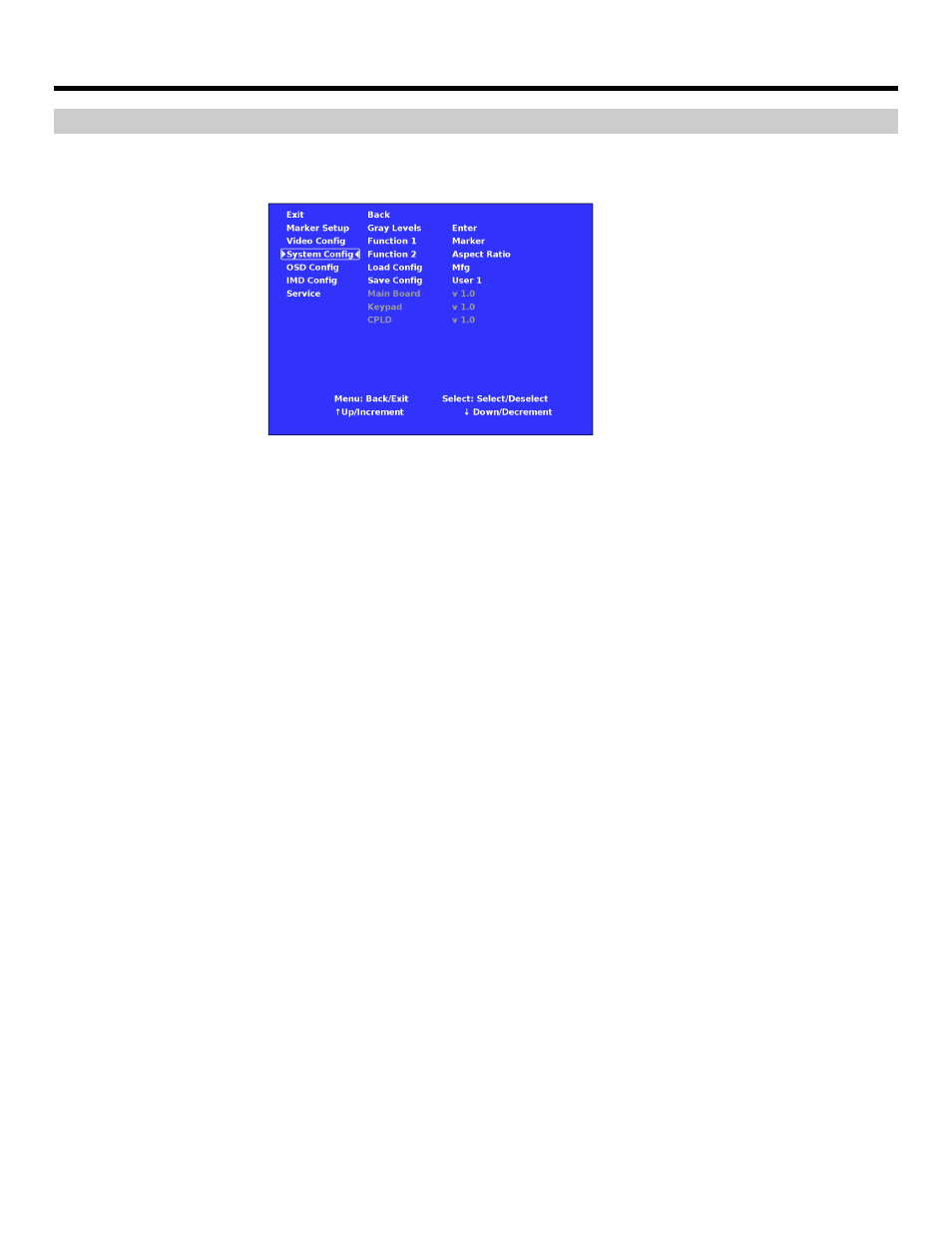

System Configuration Submenu
