5

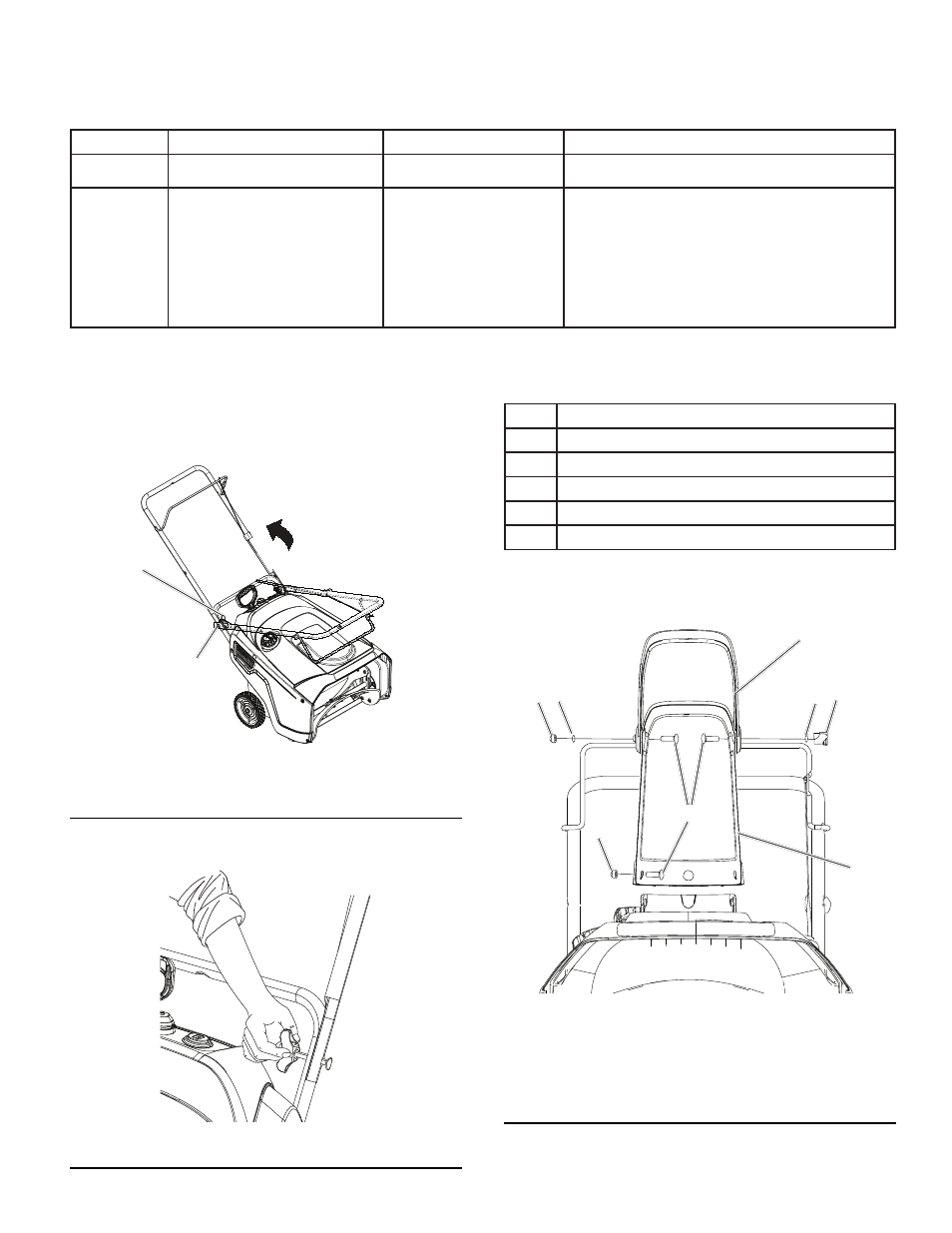

Setup
Loose Parts
Use the chart below to verify that all parts have been shipped.
Procedure Description Qty. Use
1. No parts required – Unfold the handle.
2. Carriage bolts
Flange nuts
Washers
Knob
Chute
Deflector 5
4
2
1
1
1 Install the discharge chute.
Install the discharge chute.
Install the discharge chute.
Install the discharge chute.
1. Unfolding the Handle
Procedure
1. Loosen the two handle knobs and pull out the two
handle bolts until you can move the handle freely and
rotate the handle to the operating position (Figure 2).
2. Tighten the handle knobs until they are snug (Figure 3).
2. Installing the Discharge
Chute
5 Carriage bolts
4 Flange nuts
2 Washers
1 Knob
1 Chute
1 Deflector
Procedure
Install the discharge chute as shown (Figure 4).
IMPORTANT: Do not overtighten the flange nuts;
otherwise you may damage the discharge chute.
Figure 3
1. Handle knobs 2. Handle bolt
Figure 2
2
1
Figure 4
1. Deflector
2. Carriage bolts
3. Flange nuts
2
6
3
3 4 4 5
1
4. Washer
5. Knob
6. Discharge chute
