Horizontal and Vertical Synchronization signals. This mode reduces the
monitor’s power consumption to 8W. While in this mode the Power
Indicator LED is amber. When the synchronization signals are re-enabled
the monitor returns to normal operation.
Section 2 - Installation
2.1 Attaching the Base
• Carefully place the monitor on its
side or top.
• Insert the hooks on the swivel base
into the slots in the bottom of the
monitor. Push down and forward
on the base until it snaps into
place.
• Place the display upright in an
appropriate location.
2.2 Connecting the Cable
• Make sure that power to the monitor and the computer is off.
• Connect the cable from the back of the monitor to the video connector
on the computer.
COM1 COM2 LPT1 VIDEO
Video Cable

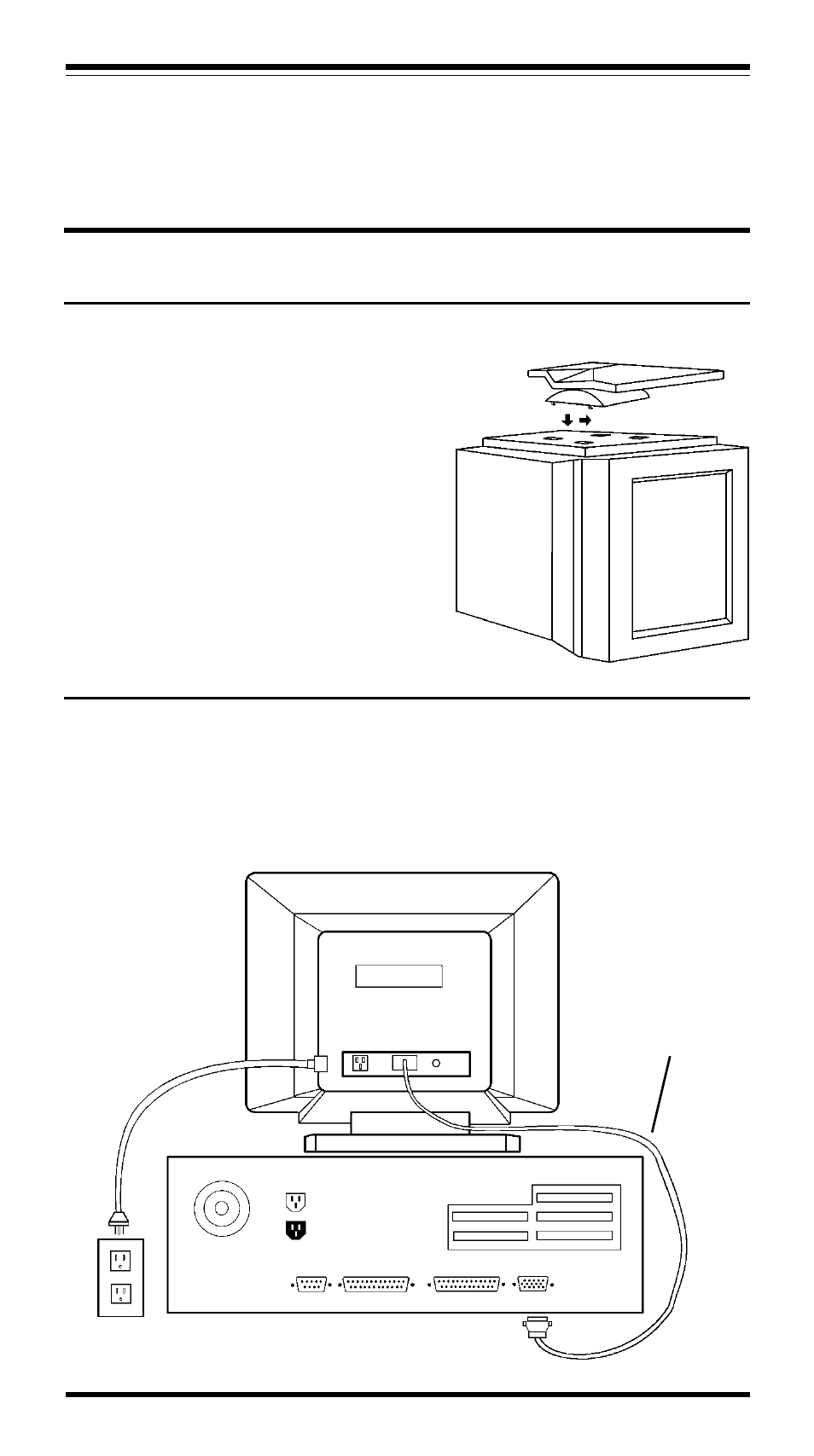

Figure 2-2 Monitor Connections
Figure 2-1 Connecting the Base
