LOUDSPEAKER PLACEMENT
MTX In-Ceiling Speakers are designed to work within any interior decorating
scheme. They can be installed in virtually any location where flush mounting is
possible. To maximize their sound performance however certain guidelines should

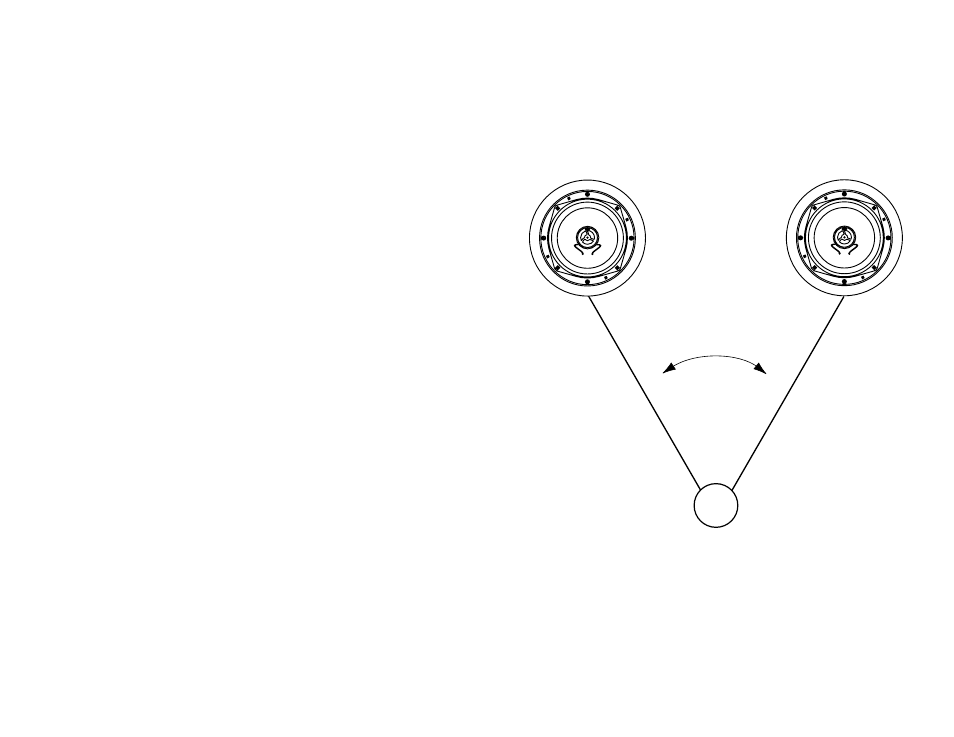

be followed. For the best stereo reproduction the two loudspeakers should be
placed an equal distance from your listening position and separated so that the
angle between them, at the listening position, is between 40 and 60 degrees.
MODEL 625W
6-1/2” Two-Way In-Wall Speaker
25mm Soft Dome Swivel Tweeter
Impedance: 8 ohms nominal
Sensitivity: 85dB
55W RMS/110W Peak Music
Frequency Response: 48Hz-20kHz
12”H x 8 5/8”W x 3 1/4”D
MONITOR6
6-1/2” Two-Way Home Loudspeaker
19mm Dome Tweeter
Impedance: 8 ohms nominal
Sensitivity: 89dB
100W RMS/200W Peak Music
Frequency Response: 55Hz-20kHz
12 3/4”H x 7 1/2”W x 8 1/2”D
MONITOR10
10” Three-Way Home Loudspeaker
19mm Dome Tweeter
Impedance: 8 ohms nominal
Sensitivity: 92dB
200W RMS/400W Peak Music
Frequency Response: 30Hz-20kHz
31 7/16”H x 11 1/8”W x 14 5/16”D
MODEL 825W
8” Two-Way In-Wall Speaker
25mm Soft Dome Swivel Tweeter
Impedance: 8 ohms nominal
Sensitivity: 86dB
60W RMS/120W Peak Music
Frequency Response: 36Hz-20kHz
14”H x 10”W x 3-1/2”D
MONITOR6C
6-1/2” Center Channel Loudspeaker
19mm Dome Tweeter
Impedance: 8 ohms nominal
Sensitivity: 92dB
100W RMS/150W Peak Music
Frequency Response: 60Hz-20kHz
7 1/2”H x 17 5/8”W x 8”D
MONITOR12
12” Three-Way Home Loudspeaker
19mm Dome Tweeter
Impedance: 8 ohms nominal
Sensitivity: 94dB
250W RMS/500W Peak Music
Frequency Response: 25Hz-20kHz
35”H x 13 1/8”W x 16 1/16”D
OTHER PRODUCTS FROM MTX
In-Wall Loudspeakers
Home Loudspeakers
TECHNICAL ASSISTANCE
For additional technical assistance you can visit our website at
www.mtx.com.
Otherwise, our technical service representatives can be reached by phone: 1-800-
CALL-MTX or by email:
