• Make sure that power to the monitor and the computer is off.
• Connect the cable from the back of the monitor to the video connector
on the computer.
• Attach the power cord to the monitor and plug it into an AC outlet.
• The monitor is now ready for use.
Section 3 - Monitor Controls and LEDs
1. Power Switch: Press to turn the monitor on, press again to turn the
monitor off.
2. Power Indicator: A green LED indicates the monitor is fully powered on.
An amber LED indicates the monitor is in power saving mode.
3. Pincushion: Adjusts the pincushion (shape) of the display
4. Vertical-Position: Adjusts the vertical position
5. Vertical-Size: Adjusts the display height
6. Horizontal-Position: Adjusts the horizontal position
7. Horizontal-Size: Adjusts the display width.

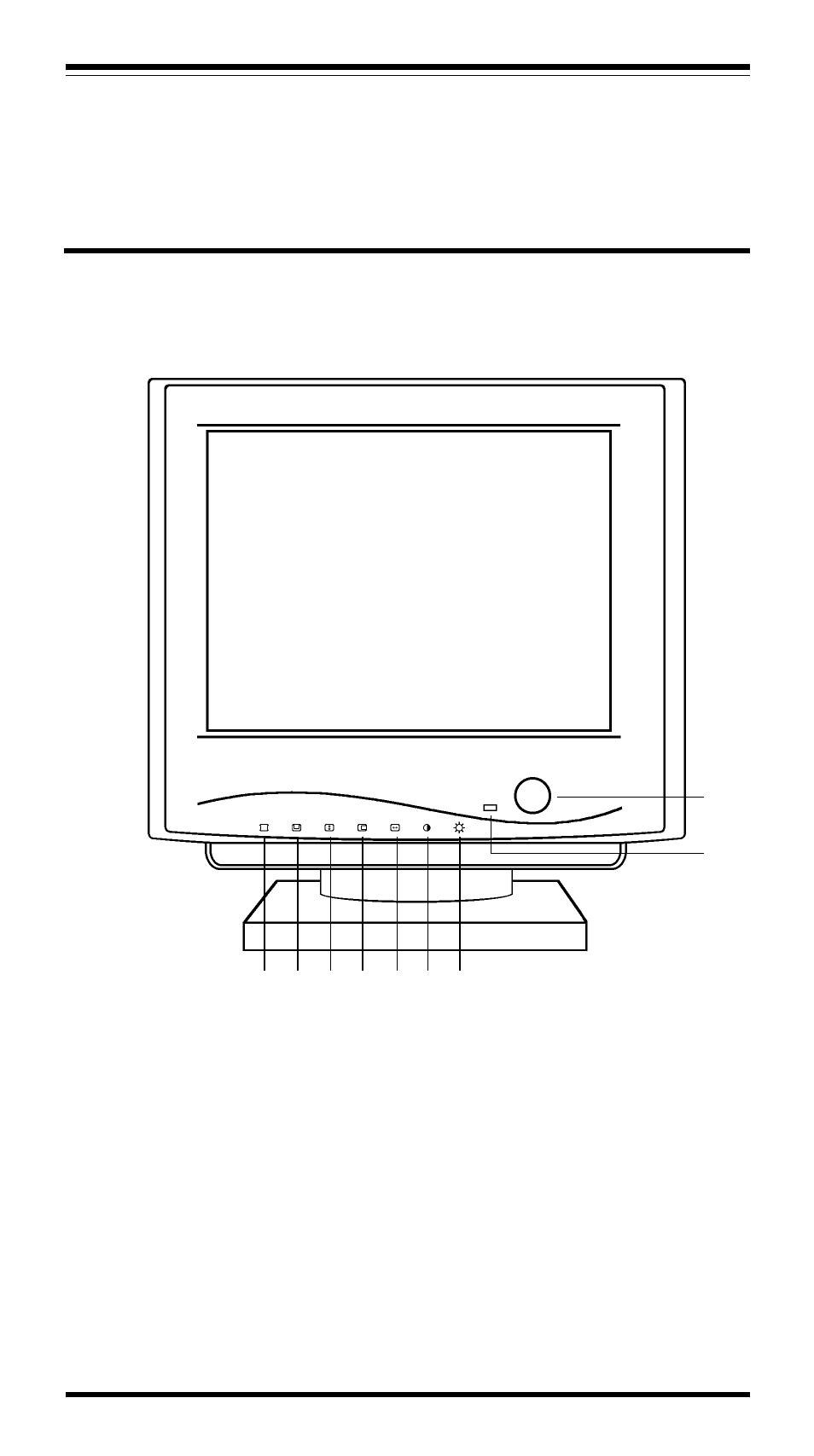

Figure 3-1 Controls and LEDs
8 7 6 5 3 4 9
1
2
