DVR-115D Series
DVD Recordable Drive
Read/write performance
technologies
The DVR-115D series retain Pioneer’s Disc-Resonance
Stabiliser technology. It controls the airflow generated by
disc rotates in order to minimise disc warping, which can
occur when media rotates at high speed.
As well as Buffer Under Run protection technology, writing
performance is further advanced by key innovations
including:
A Multi-Effect Liquid Crystal Tilt Compensator; it
operates at high speed – even on Dual Layer/Double
Layer media types – to ensure precise writing to the
disc by automatically compensating for discs that are
warped or of uneven thickness.
An Ultra Dynamic Resonance Absorber; this reduces
the instability and vibrations caused by imbalanced
or damaged media, maintaining the integrity of the
recording and playback performance.
Performance Adjusting Firmware; this optimises the
disc’s rotation speed depending on the user’s
application – for example, if watching a movie or
listening to music, the disc velocity is reduced keeping
background noise to a minimum.
Features
Max 20X writing for DVD-R / +R
Max 10X writing for DVD-R DL / +R DL
(Dual / Double Layer media)
Buffer Memory Size
2MB (supports ‘Buffer Under Run’
protection for DVD and CD)
Interface Type
ATA/ATAPI-7, SFF-8090
Data Transfer Mode
PIO Mode4, Multi-Word DMA Mode2,
Ultra DMA Mode2 / Mode4
Dimensions
W=148mm x D=180mm x H=42.3mm
(including front bezel)
Net Weight
0.8kg
Mounting Orientation
Horizontal and Vertical
(+/- 5 degrees)
Operating Temperature
Min. +5ºC to Max. +45ºC
Operating Humidity
5% to 85% RH (no condensation)
Supported Disc Size Diameter
120mm / 80mm
Additional Notes
RPC setting: The DVR-115D series
include Regional Playback Control (RPC
Phase II Mode). Region changes can
be made up to five (5) times including
the initial setting. Be aware that the
fifth (5th) change will be PERMANENT.
Therefore, please use caution when
changing the region code. The method
of changing the region code number
may vary on the decoder or operating
system being used.
RoHS Directive: This product complies
with the RoHS Directive.
WEEE Directive: This product complies
with the WEEE Directive.
To playback DVD-Video, a DVD-
compliant MPEG2 hardware or
software decoder is required.
Pioneer assumes no liability for any loss
of data when this product is being used.
Product design and specifications are
subject to change without notice.
Due to printing limitations, the product
images in this catalogue may look
different from that of the real product.
Safety Precaution: Carefully read the instruction
manual to ensure the safe operation of the
product.

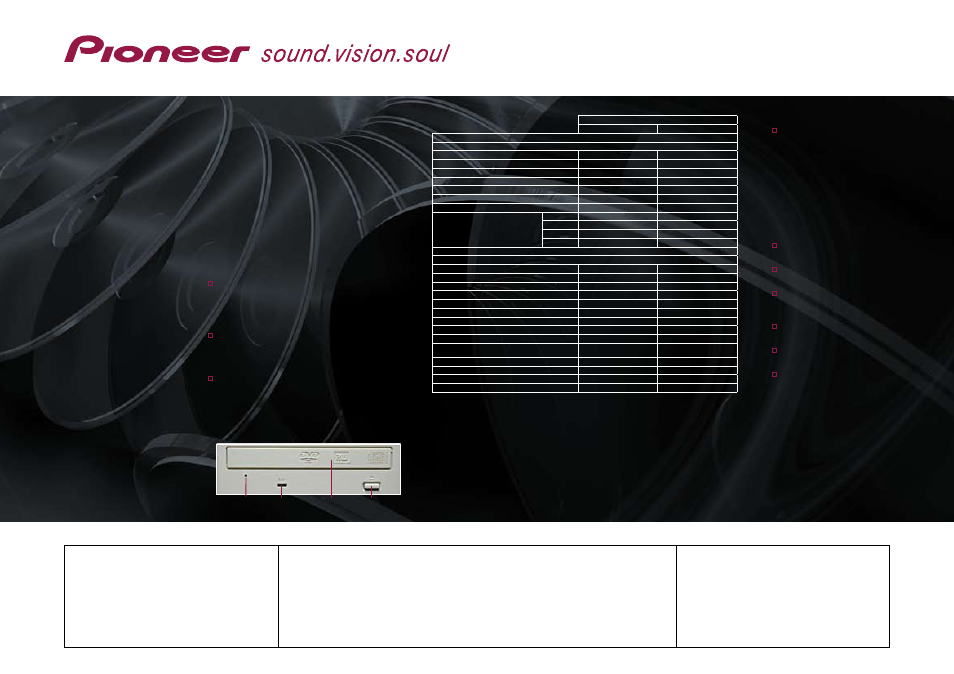

Eject Button Forced Eject Hole Busy Indicator Disc Loading Tray
Front Panel
¹ DVD-R Version 2.0 and 2.1 for General disc only
2 Use a cable corresponding to U-ATA66 (80-wire conductor cable)
3 This specification describes the maximum speed in one zone.
4 Non-cartridge DVD-RAM Version 2.0, 2.1 and 2.2 only
DVR-115D / DVR-115DBK / DVR-115DSV
Data Transfer (Max) Mbytes/sec (Max)
Write speed
Media Type
DVD-R¹ / +R 20X CAV 2 27.70
DVD-R DL (Dual Layer) / +R DL (Double Layer) 10X Z-CLV 3 13.85
DVD-RW 6X CLV 8.31
+RW 8X Z-CLV 11.08
8cm DVD-R/RW (with Adapter) 5 2X CLV 2.77
CD-R 6 40X CAV 6.00
8cm CD-R/RW (with Adapter) 5 4X CLV 0.60
CD-RW 6
Normal 4X CLV 0.60
HS, US & US+ 10X CLV 1.50
US & US+ 24X Z-CLV 3.60
US+ 32X Z-CLV 4.80
Read speed
Disc Format
DVD-ROM (Single Layer) 16X CAV 22.16
DVD-ROM (Dual Layer) 12X CAV 16.62
DVD-R / +R 16X CAV 22.16
DVD-R DL / +R DL (Dual Layer / Double Layer) 12X CAV 16.62
DVD-RW / +RW 13X CAV 18.00
DVD-RAM 4 5X CLV 6.92
DVD-Video with CSS (Single Layer & Dual Layer) 5X CAV 6.92
8cm DVD-ROM, DVD-R/RW, DVD-Video (with Adapter) 5 3.4X CAV 4.70
CD-ROM /CD-R 40X CAV 6.00
CD-RW (Multi-Speed, High Speed, Ultra Speed
[US24 & US32])
24X CAV 4.80
Video CD 9.3X CAV 1.39
CD-DA, CD-TEXT, Mixed-CD, CD-Extra (Play audio) 9.3X CAV 1.39
CD-DA, CD-TEXT, Mixed-CD, CD-Extra (Data extraction) 40X CAV 6.00
8cm CD-ROM, CD-R/RW, CD-DA (with Adapter) 5 6.1X CAV 0.91
5 8cm discs cannot be used when the drive is vertically
orientated. This case remains even when an adapter is used.
(Non-standard discs such as ‘custom shaped or ‘business card
disc are not supported)
6 For 12cm CD-R/RW, only Type 74 - 650MB, Type 80 - 700MB
discs are supported
