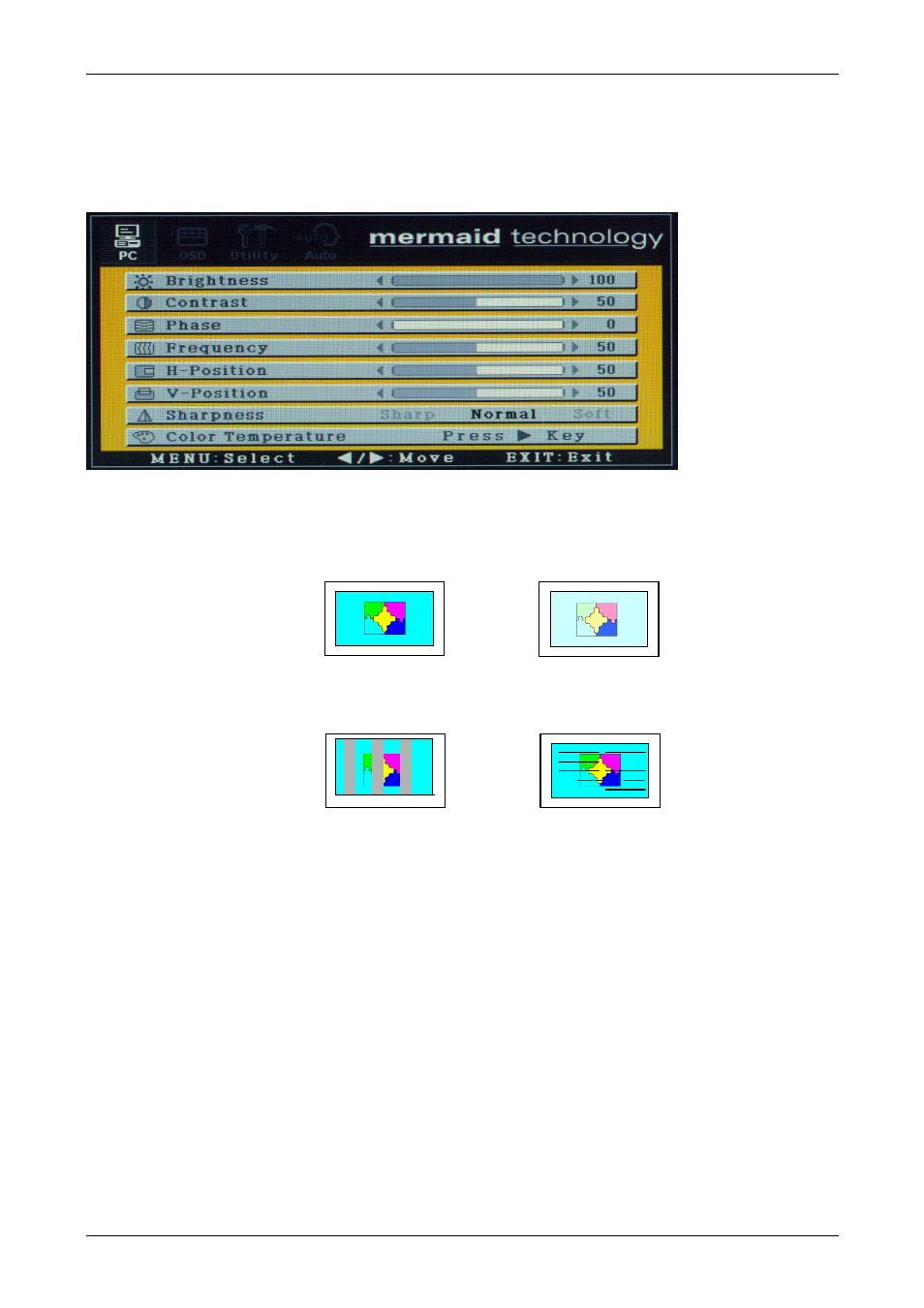

6. OSD Functions & Adjustments
PC menu (Only available when the PC input source is active)
Function Description
1. Brightness Changes the overall brightness of the image.
2. Contrast Changes the ratio between white and black.
3. Phase
4. Frequency
Fine tune vertical and horizontal noise in the display.
5. H-Position
6. V-Position
Moves the vertical and horizontal location of the picture shown.
7. Sharpness Modify the sharpness of the display.
Sharp: Edges of image become sharp
Medium
Soft: Edges of image become soft
8. Colour Temperature Changes the colour tone of the display.
Mismatch of Phase causes
Horizontal line noise in the display
Mismatch of Horizontal
image size causes periodic
vertical bands in the display
¢¸ Distinct ¢º Vague
