Mercedes-Benz 2003 CLK 430 - Manual (Page 281)

278 Exterior lamps
Technical
data
Instruments
and controls
Operation Driving
Instrument
cluster display
Practical hints Car care Index

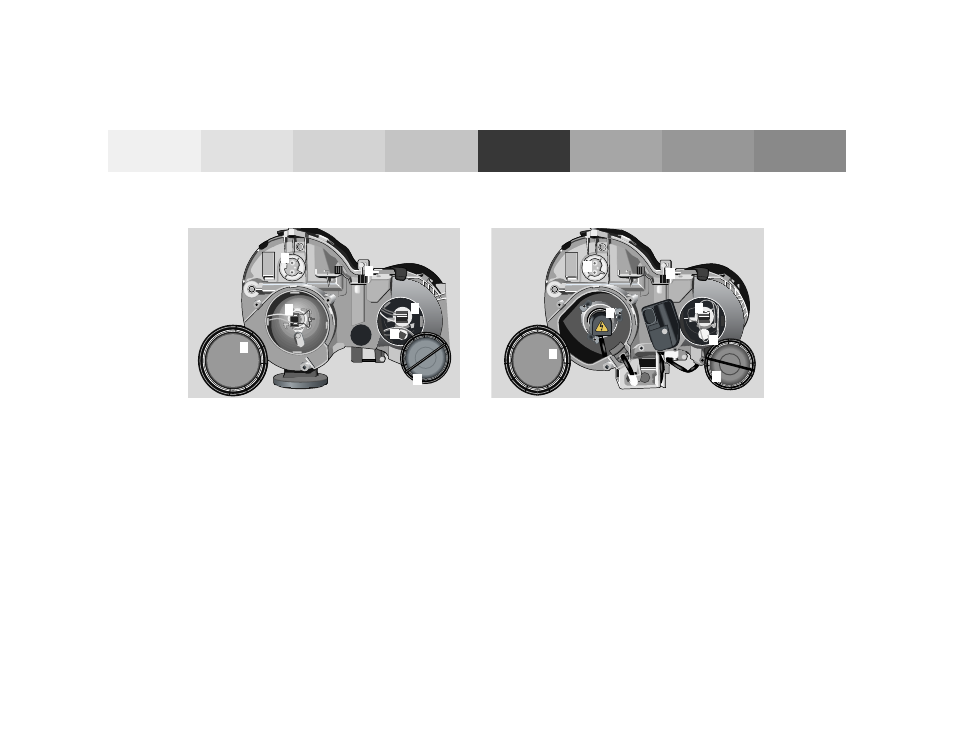

Headlamp assembly (Halogen)
1 Headlamp vertical adjustment screw
2 Cover for low beam headlamp
3 Cover for high beam headlamp, parking and
standing lamp
Headlamp assembly (Xenon) (optional)
4 Bulb socket for turn signal lamp
5 Electrical connector for low beam headlamp bulb
6 Electrical connector for high beam headlamp bulb
7 Bulb socket for parking and standing lamp
P82.10-2394-26
4
1
5 6
7
2
3
4
6
7
2
3
P82.10-2395-26
5
1
