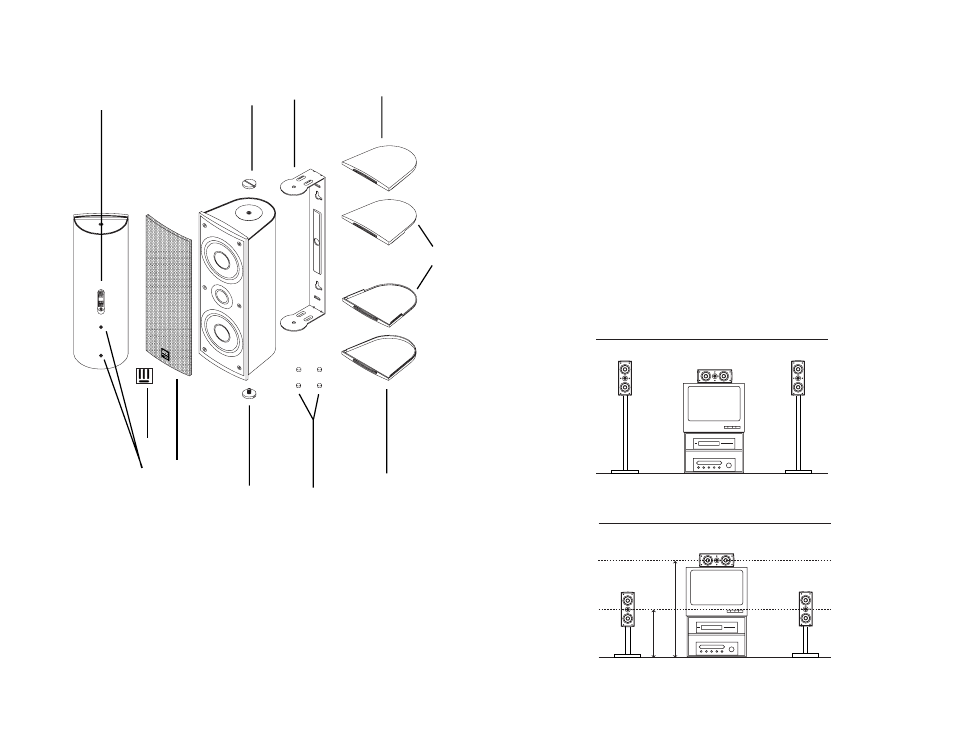

MP52 PARTS GUIDE
A
B
1. Input Terminals
2. Threaded Inserts
3. Brass Thumb Screws
4. Aluminum Bracket
5. Self Adhesive Cabinet Feet
6. B-Type Bracket Mount End Cap
7. A-Type Standard End Cap
8. Grill
9. Grill Adhesive
6
7
7
4
3
1
2
3 5
8
9
3
MP52 SET UP GUIDE
HOME THEATER
Left/Center/Right Front Speaker Height
One of the most Important parameters for the
left/center/right/front speakers in a home theater system is
height. Figure 2 shows the ideal arrangement of the
speakers in relation to the viewing screen: all three
speakers are aligned on the same horizontal plane. This
establishes a firm image height when special audio effects
are panned from one side to the other, such as a speeding
car moving across the screen. When a large discontinuity
occurs between the heights of the center front channel and
the left/right front speakers, as depicted in Figure 3, the
visual image of the moving object becomes confused and
somewhat unnatural due to shifts in image height.
Figure 2 Proper placement of left/center/right front speakers.
Figure 3 Improper placement of left/center/right front speakers.
