MTD ST720r - Manual

Item Part No. Description
20 791-00012 Vane Control
21 791-00013 Pushnut
22 791-181372 Screw
23 791-00014 Drive Belt
24 791-00015 Spring
25 791-00016 Idler Arm
26 753-04081 Ball Bearing
27 791-00017 Keeper
28 753-04082 Flange Bearing
29 791-00018 Driven Pulley
30 753-04080 Washer
31 791-00019 Belt Case Cover
32 753-04056 Flange Lock Nut
33 791-00020 Vane
34 791-00021 Rotor
35 791-00022 Rotor Shaft
36 791-182409 Washer
37 791-182910 Washer
38 791-612605 Hanger Accessory
Item Part No. Description
1 791-181345 Screw
2 791-00000 Vane Control Handle
3 791-00001 Grip
4 753-04079 Washer
5 791-00002 Spring
6 791-00003 Cover
7 791-181852 Flex Shaft
8 791-181352 Drive Shaft Assembly
9 791-00004 Clamp, LH
10 791-00005 Clamp, RH
11 791-181355 Clamp
12 791-181353 Screw
13 791-181607 Screw, Anti-rotation
14 791-00006 Drive Housing Bracket, RH
15 791-00007 Drive Housing Bracket, LH
16 791-00008 Spacer
17 791-00009 Drive Pulley
18 791-00010 Scraper
19 791-00011 Snow Thrower Housing
10 9
8
13
11
12
13
16
17
14
18
30
1
26
27
1
29
31
28
35
34
1
1
33
28
23
25
24
22
1
1
19
20
30
21
5
4
6
2
1
1
1
22
12
11
15
22
32
36
36
36
37
10/02
7
38
3

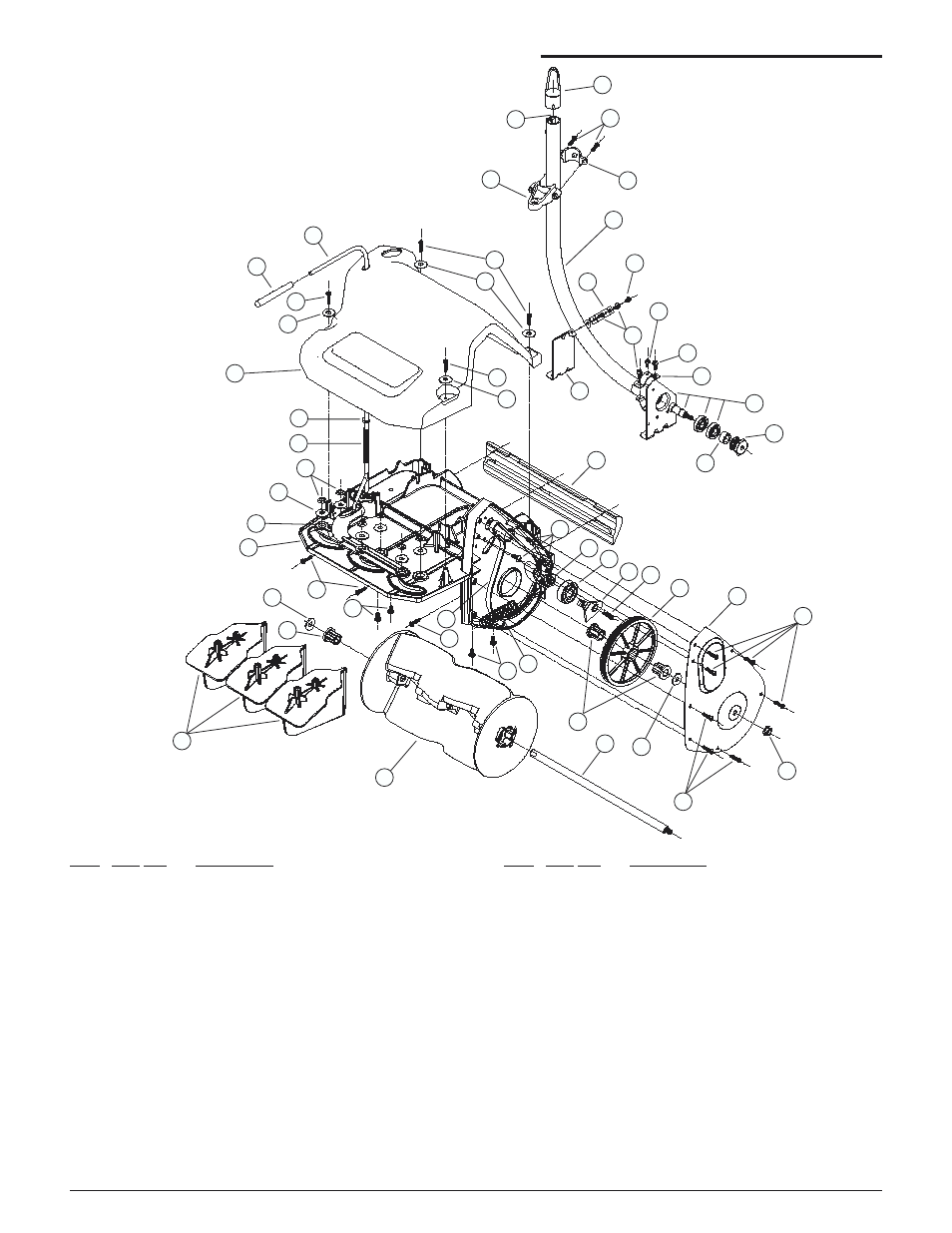

SNOW THROWER PARTS - MODEL ST720r
SNOWTHROWER ADD-ON
PPN 41BJST-A034
