HD1801: 3-WAY SYSTEM - MONO SUBWOOFER WITH SRM450V2 LOUDSPEAKERS
Hookup Diagrams

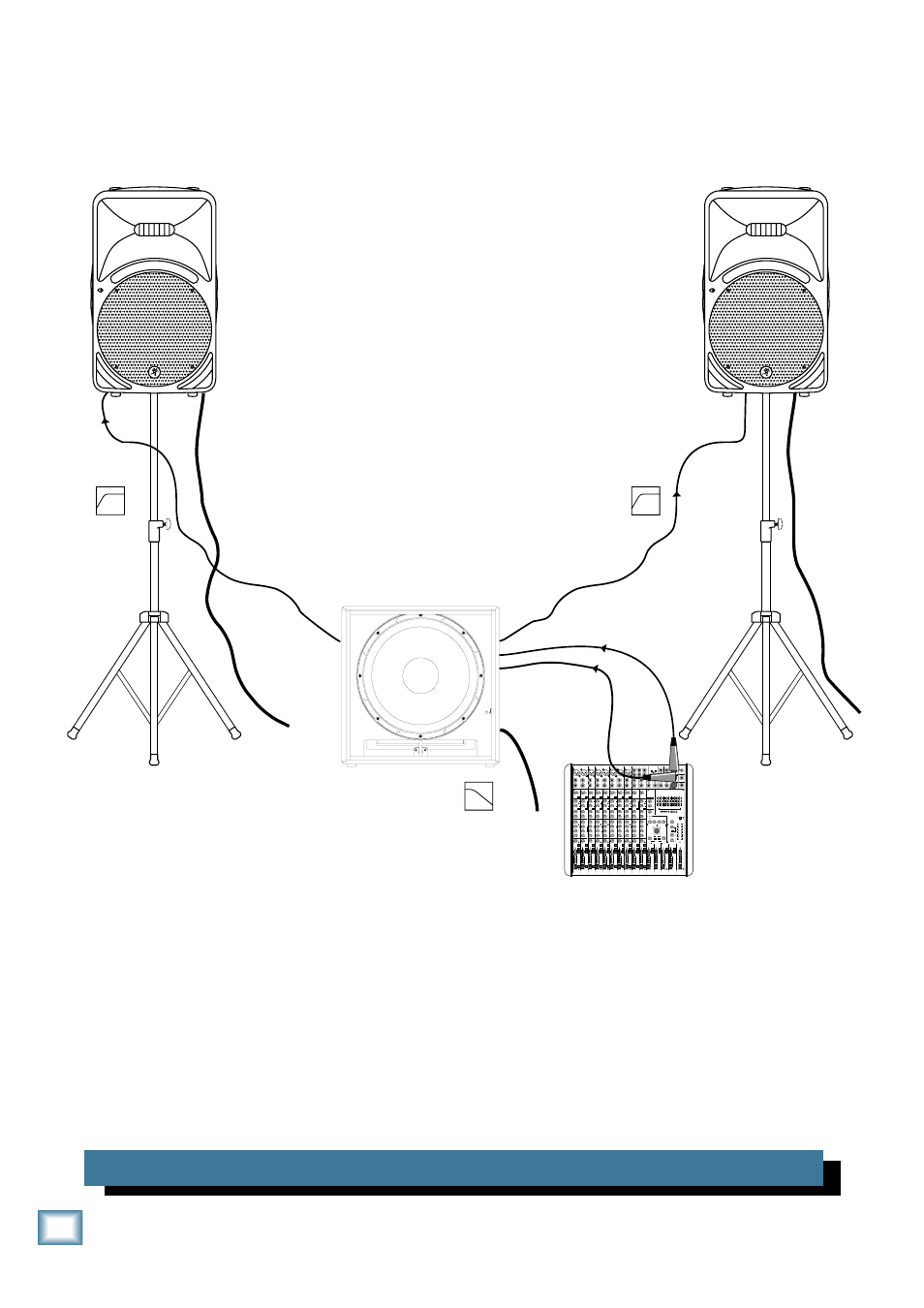

This diagram shows the left and right line level outputs of a Mackie CFX12mkII mixer feeding inputs
A and B of one Mackie HD1801 subwoofer. Two SRM450v2 loudspeaker inputs are fed from the A and
B High Pass outputs from the subwoofer. Experiment with the HD1801’s polarity switch to achieve
optimum performance. Placement of the subwoofer relative to the full-range loudspeakers will also affect
performance. See page 10 for more information.
1
2
3
4
5
6
7
8
9-10
11-12
1
2
3
4
SRM450v2
reproduces all
frequencies
above the
subwoofer’s
crossover point
Left
line level
output
Right
line level
output
Power
Cord
Line-level
High Pass
output B
SRM450v2
reproduces all
frequencies
above the
subwoofer’s
crossover point
Power
Cord
Line-level
High Pass
output A
HD1801
input A
HD1801
input B
Power
Cord
HD1801 subwoofer
reproduces the
low frequencies
CFX12mkII
Mixer
4
