OM-223 605 Page 15
5-8. Installing Non-PD (Old Style) Wire Guides
Ref. 804 192 / 804 188-A

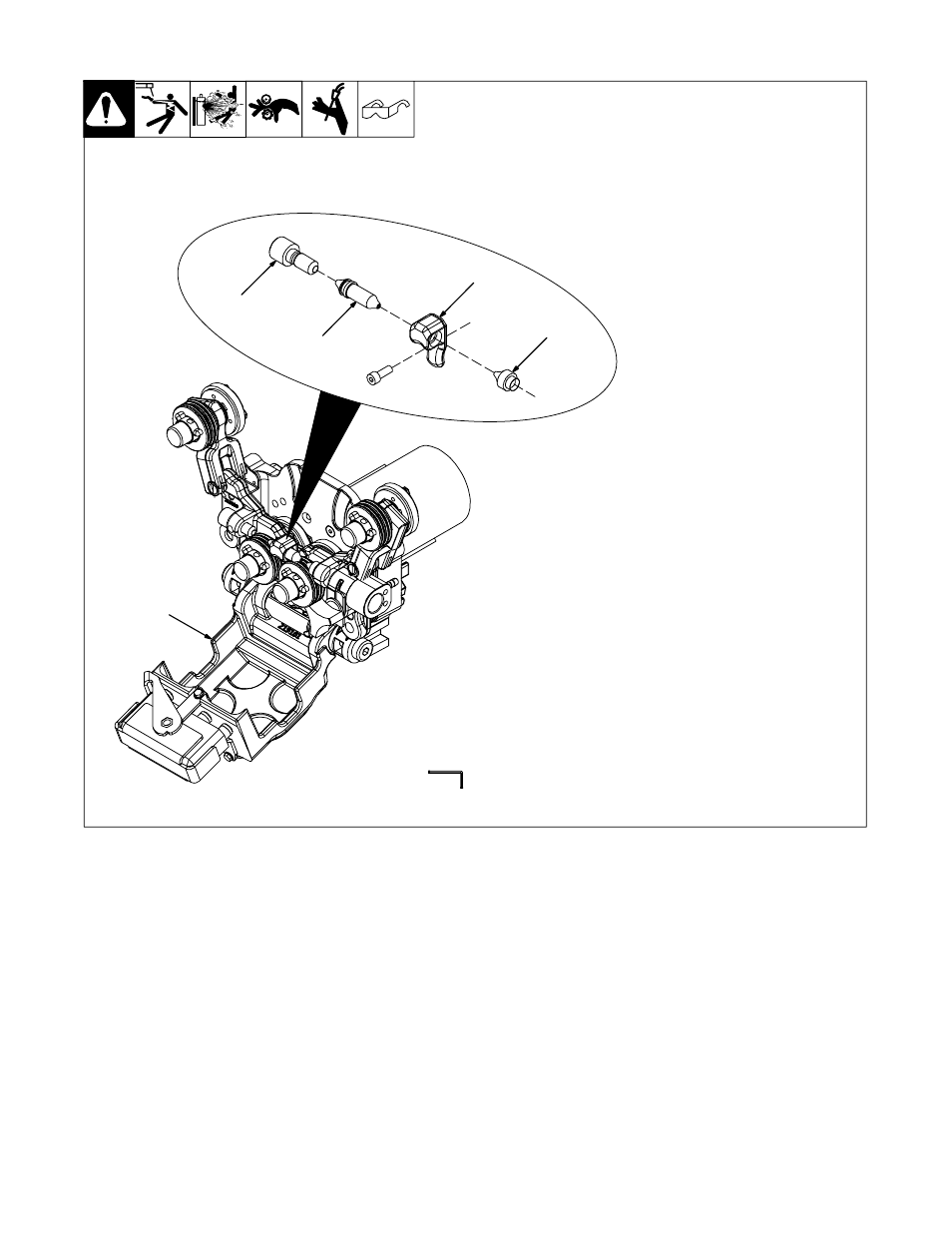

Installing wire guides with non-
PD (old-style) drive rolls.
.
Non-PD (old-style) wire guides
and drive rolls should be used
with 5/64 in (2.0 mm) and larger
diameter wire.
1 Pressure Assembly Door
2 PD Inlet Guide
3 Intermediate Guide
4 Guide Holder
5 Exit Guide
Open pressure assembly door.
Lift up drive roll swing arms.
Install PD inlet guide.
.
Do not tighten set screw to se-
cure inlet guide.
.
Set screw may be used to se-
cure PD inlet guide replace-
ments such as wire straighten-
ers or conduit adapters.
Remove screw securing intermedi-
ate guide holder (guide holder is lo-
cated between the lower front and
rear drive roll carriers).
Rotate guide holder 180 degrees
and reinstall.
Install intermediate guide into guide
holder with o-ring towards rear of
feeder.
Loosen set screw, insert exit guide
into block near brass power pin gun
connection and secure with set
screw.
.
When using smaller diameter
inlet guide (219108) with non-
PD (old style) drive rolls, a 1/4
in (6 mm) gap will be present
between the guide and drive
roll.
5
4
3
2
1
Tools Needed:
1/16, 3/32 in
