TANDEM ROLLER: T23, T26, T33 — PARTS & OPERATION MANUAL — REV. #4 (03/12/01) — PAGE 15

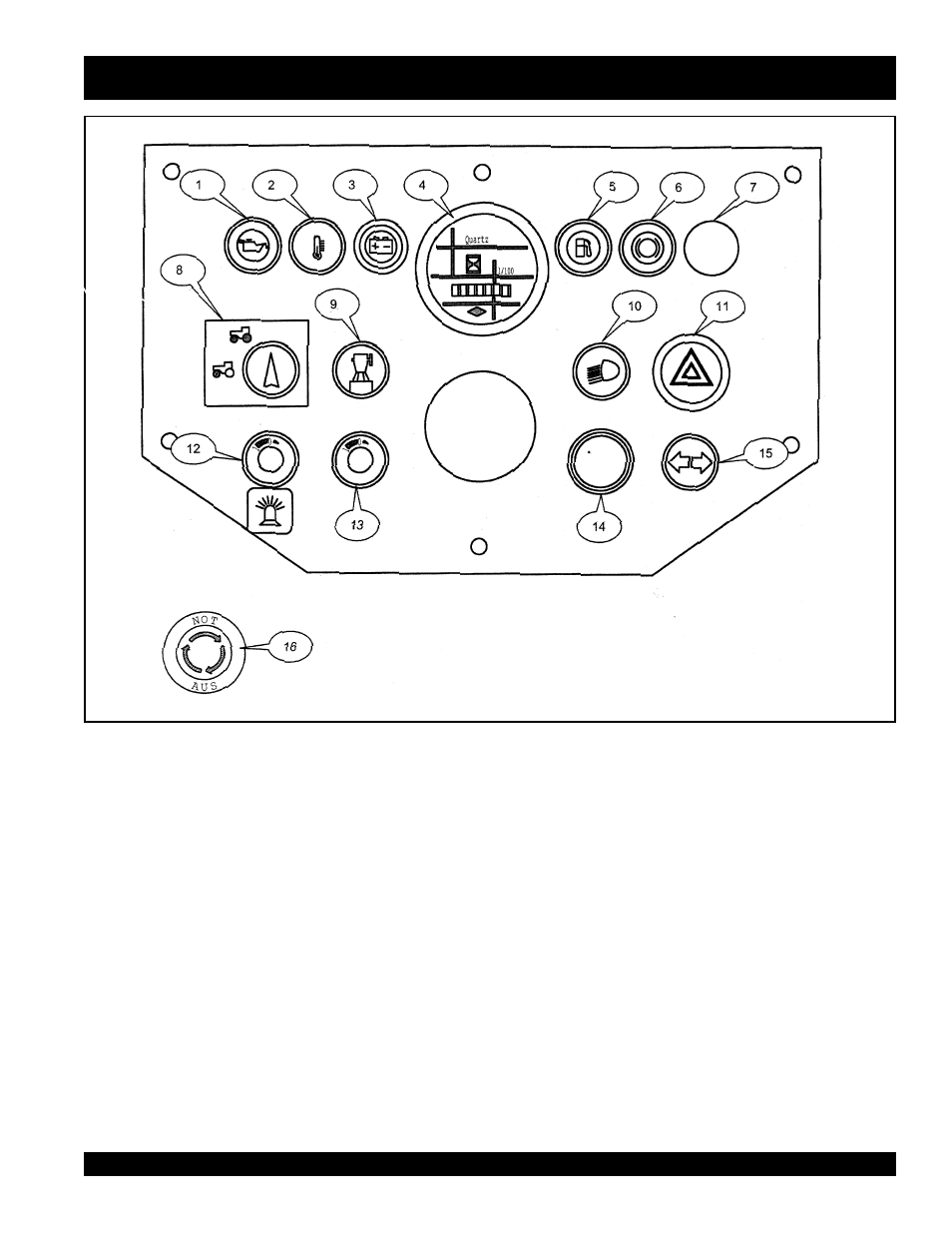

1) Warning light – engine oil pressure
2) Warning light – cooling water temperature
3) Warning light – charging system
4) Hour meter
5) Warning light – low fuel level
6) Warning light – charge / brake pressure
7) Spare
8) Selector switch – vibration front or front and back
9) Sprinkler switch
10) Light switch
0 – off
1 – parking lights
2 – head lights
11) Hazard warning button
12) Rotary warning beacon (optional equipment)
13) Working lamp (optional equipment)
14) Horn button
15) Indicator left/right (located on right side of column)
OPERATION
