32

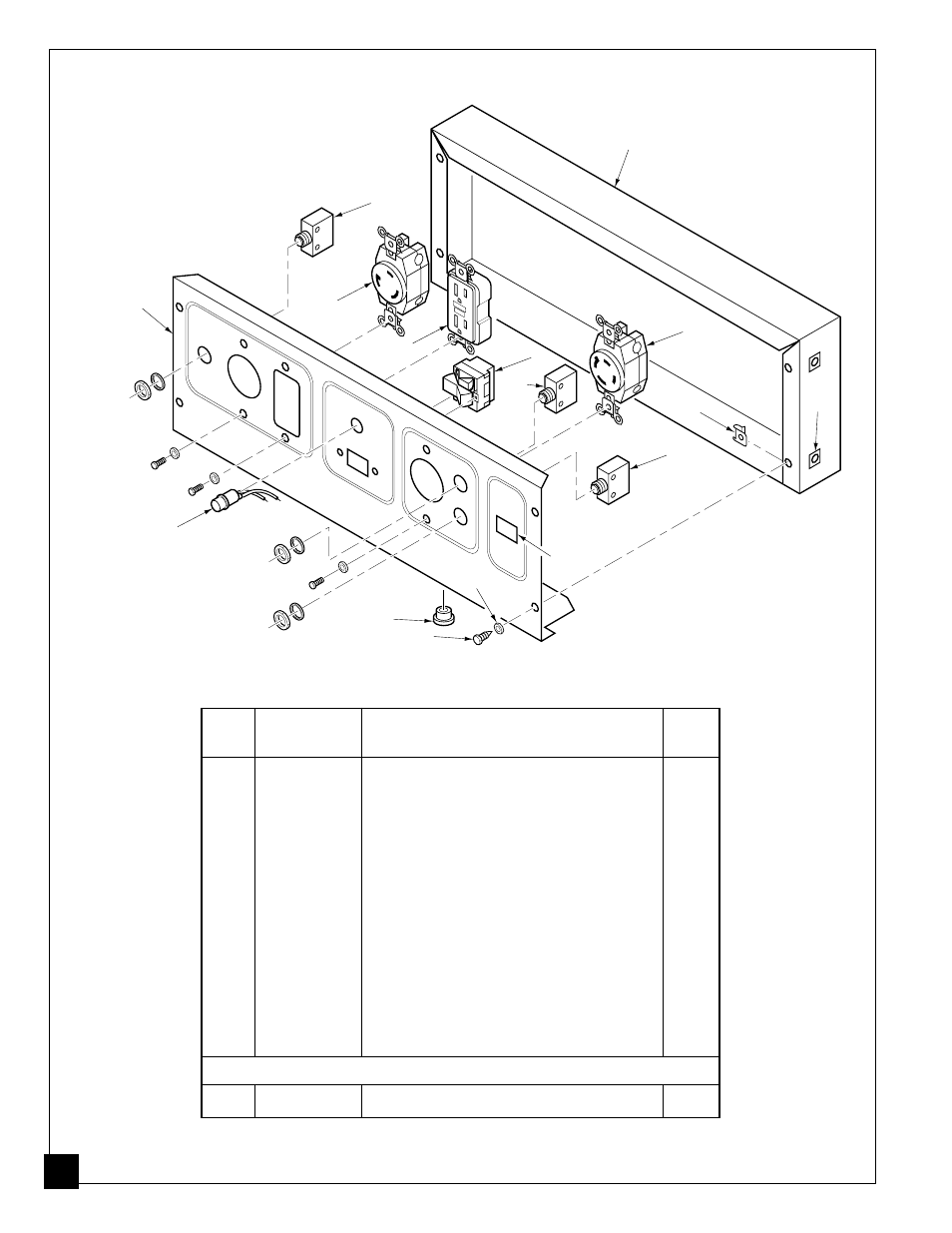

ILLUSTRATED
PARTS LIST
Control Panel
RESET
FULL POWER
SELECTOR 120/240 VOLTS
RESET
RESET
1
2
3
4
5
7
6
6
9
10
11
12 12
13
120
ONLY
120
240V
120 VOLTS
8
RESET
TEST
14
KEY PART
NO. NUMBER DESCRIPTION QTY.
1 100148-05 Control Panel 1
2 22616009 Circuit Breaker, 20 Amp * 1
3 099833-01 120V, 30A Twist-Lock Receptacle * 1
4 100445-01 120V, 15A Duplex (GFCI) Receptacle * 1
5 099956-01 Full Power Selector Switch * 1
6 22616011 Circuit Breaker, 25 Amp * 2
7 099834-01 120/240V, 20A Twist-Lock Receptacle * 1
8 099804-01 Lamp 1
9 099760-01 Bushing 1
10 24306006 Screw, #8-18 x 1/2" 4
11 100149-01 Control Box 1
12 22261000 Speed Nut, #8 8
13 WLI-2BL Lock Washer, #8 4
14 099997-01 Switch Plug 1
PARTS AVAILABLE - NOT SHOWN
100177-01 Panel Schematic Decal 1
* Includes fastening hardware
