MTD Yard-Man TB25CS User Manual

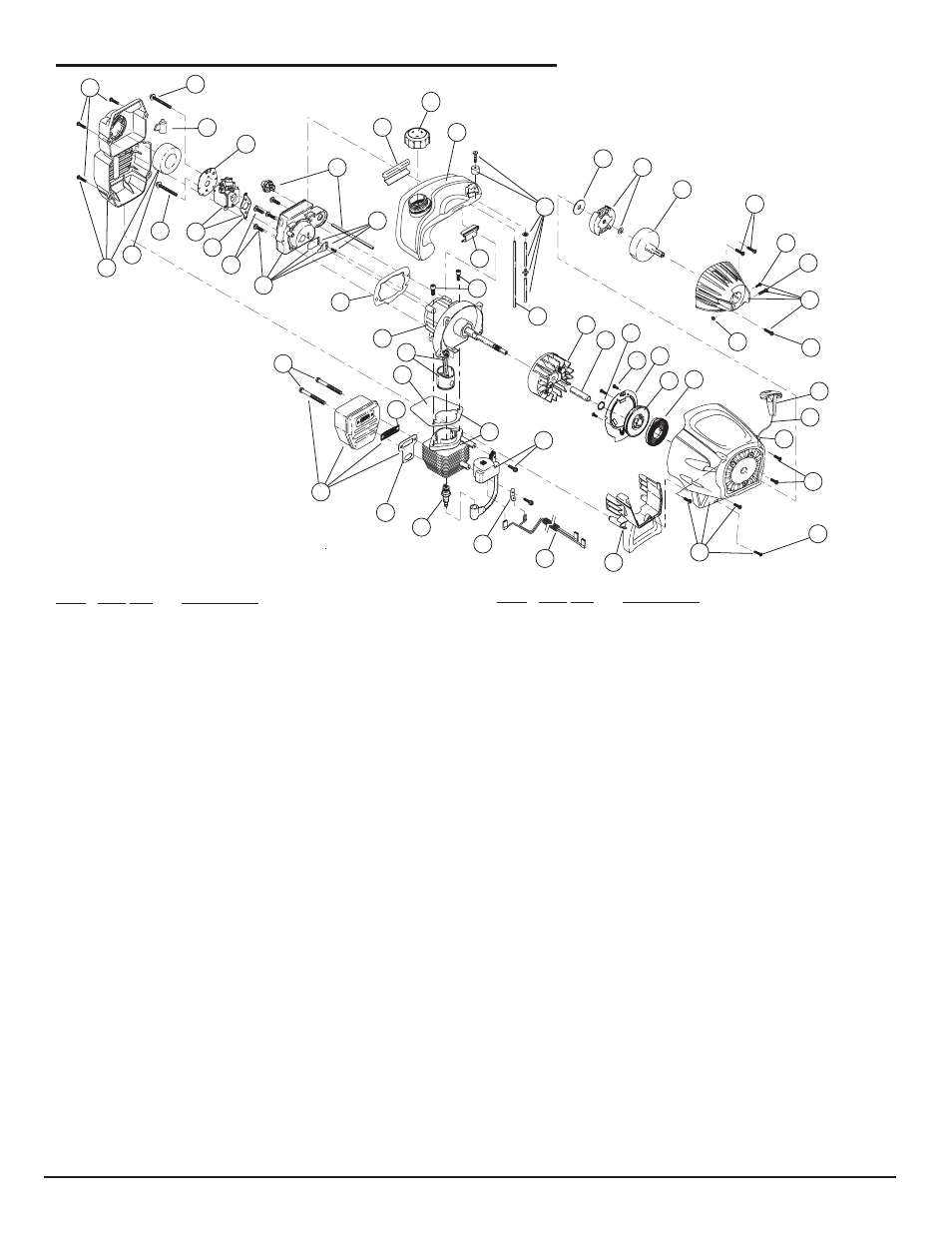

Engine parts - model tb25cs 2-cycle gas trimmer

background image

Issued 7/03

Item Part No.

Description

30

753-04402

Starter Housing Assembly
(includes 23-39, 31 & 36)

31

791-181862

Housing Screw

32

791-182368

Clutch Washer

33

791-182369

Clutch Rotor Assembly

34

791-153592

Clutch Drum Assembly

35

753-04403

Clutch Cover Assembly
(includes 36-39)

36

791-181345

Cover Screw

37

791-182519

Anti-Rotation Screw

38

753-04003

Clamping Screw

39

791-180217

Clamping Nut

40

791-182798

Wire Leads and Sleeve

41

791-611063

Ground Tab

42

753-04336

Module Assembly

43

791-610311B Spark Plug

44

791-182066

Muffler Assembly (includes 45-47)

45

791-182747

Spark Arrestor Screen

46

753-04159

Exhaust Gasket

47

791-147575

Muffler Mounting Bolt Assembly

48

753-04323

Cylinder Assembly (includes 50)

49

753-1207

Piston and Rod Assembly

50

753-1197

Cylinder Gasket

51

791-182723

Cylinder Bolt

*

791-180090

O.E.M. Carburetor Repair Kit (Zama)

*

791-180091

Gasket Diaphragm Repair Kit (Zama)

*

753-1209

Piston Ring Set

*

753-04404

Short Block Assembly
(includes 8, 13, 43, 46, 48-51)

*

791-181599

Clutch Springs (Qty. 2)

*

Items Not Shown

37

2

3

6

8

10

3

4

5

9

11

12

13

50

51

19

52

17

14

15

16

18

33

34

35

21

22

29

23

24

27

25

40

31

20

42

43

49

44

47

45

48

7

41

38

37

36

46

Item Part No.

Description

1

753-1192

Air Cleaner/Muffler Cover Assembly
(includes 2 & 37)

2

791-180350B Air Cleaner Filter

3

791-180351

Carburetor Mounting Screw

4

753-1193

Choke Extension

5

753-1194

Choke Plate

6

753-04338

Carburetor Assembly (includes 7 & 18)

7

791-610675

Carburetor Gasket

8

791-181860

Carb Mount Screw

9

791-683974B Primer and Hose Assembly

10

753-1196

Carb Mount Assembly (includes 8 & 11)

11

791-684451

Reed Assembly

12

753-1208

Carburetor Mount Gasket

13

753-04401

Crank Case Service Assembly
(includes 8)

14

791-612134

Rear Mounting Pad

15

753-04307

Fuel Tank Assembly (includes 16-18)

16

753-04084

Fuel Cap Assembly

17

791-181168

Fuel Return Line

18

753-04233

Fuel Line Assembly

19

791-145308

Front Mounting Pad

20

791-182064

Shroud Extension and Stand

21

791-182736

Flywheel Assembly

22

791-181525

Spacer

23

753-1199

Recoil Pulley Assembly

24

753-04286

Recoil Spring

25

753-1200

Rope Guide

26

791-181247

Pulley Retainer

27

791-181079

Pull Handle

28

791-613103

Rope

29

753-1201

Pressure Plate Assembly

30

26

28

37

39

ENGINE PARTS - MODEL TB25CS

2-CYCLE GAS TRIMMER

PPN - 41CDT25C063

32

1

37
