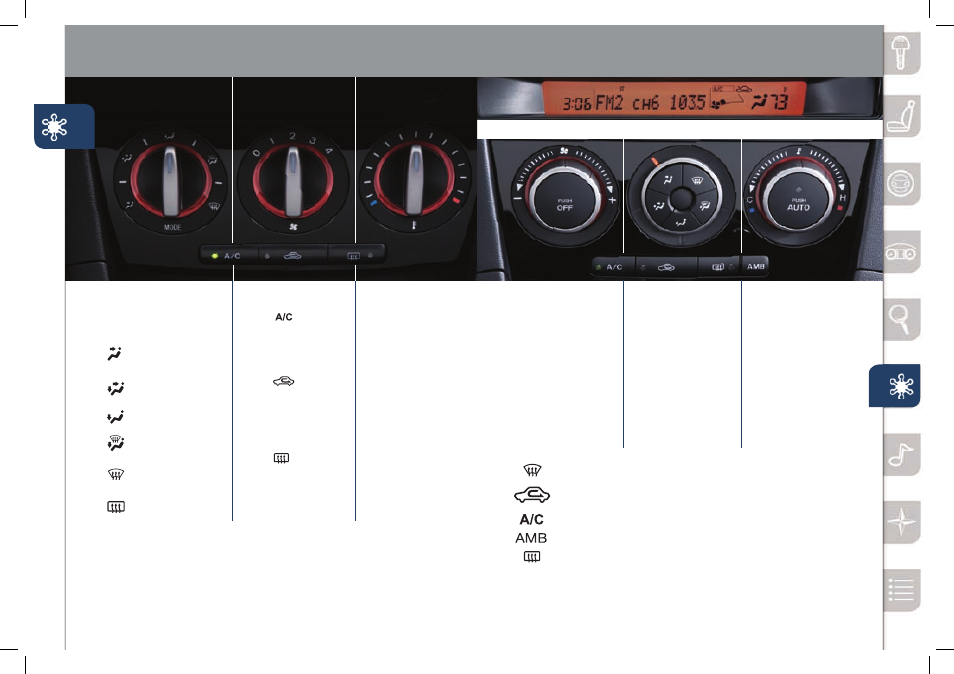

Automatic Climate Control
12
Manual Climate Control
Push to defrost the windshield.
Push to recirculate cabin air and reduce outside exhaust,
odors and improve cooling (indicator lit) or fresh air (indicator off).
Push to manually turn air conditioning on or off.
Push to display the ambient temperature.
Push to defrost the rear window.
Fan Control Dial
• Push OFF to turn
climate control
system off.
• Rotate the dial to
select the desired
fan speed.
Mode Selector Dial
• Push the appropriate
button to select the
desired airflow mode.
Mode Selector Dial
• Rotate the dial to select
airflow mode.
Note: Applies to Manual and Automatic Climate Control Systems: With any type
of defroster operation (even in the FLOOR mode where some air goes to defrost to keep
the windows defrosted), the system turns on the A/C and selects the FReSH AIR mode.
This helps defrost the windows more efficiently by dehumidifying the air. The A/C will
always be on in defroster mode, but the defroster (and floor) will deliver warm air when
the temperature dial is set to a warmer temperature and the engine warms up.
Temperature
Control Dial
• This dial controls
temperature.
• Rotate the dial
clockwise for hot
and counterclockwise
for cold.
Fan Control Dial
• Push to manually
turn air conditioning
on or off.
• Rotate the dial to set
desired fan speed (1-4).
Push to recirculate
cabin air and reduce
outside exhaust, odors
and improve cooling
(indicator lit) or fresh air
(indicator off).
• Push to defrost
the rear window.
Temperature
Control Dial
• Push the AUTO
switch. Airflow mode,
air intake selector
and amount of airflow
will be automatically
controlled to the
preset temperature.
• Rotate the
temperature control
dial to select the
desired temperature.
Note: The displayed ambient temperature may vary from the actual ambient
temperature, depending on the surrounding area and vehicle conditions. The best
time to read the ambient temperature is when the vehicle is moving at a steady
rate of speed and not when stuck in traffic.
Dashboard
vents
Dashboard and
floor vents
Floor vents
Defroster and
floor vents
Windshield
defroster
Push to defrost
rear window
Information Display
