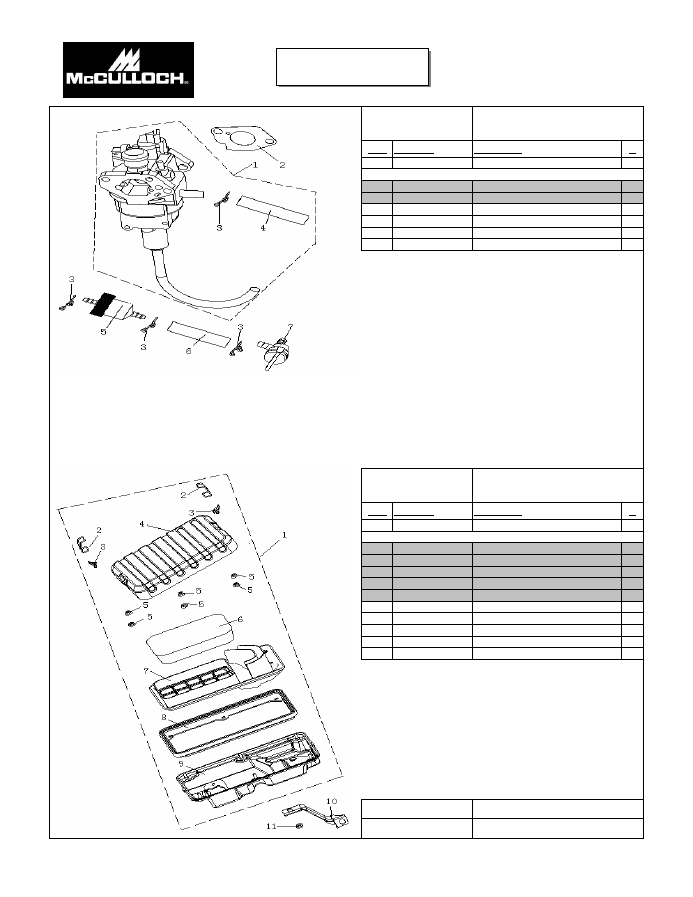

McCulloch 7096-FG7008 User Manual
Page 25
A10
No. Parts No.
Description
Q
1
032600Q02F000
CARBURETOR ASSY
1
3
032623H03F000
CLIP
4
4
032624Q03F000
HOSE Φ5ЧΦ8.5Ч145
1
2
032103Q02F000
CARBURETOR MOUNTING GASKET
1
5
032707K14F000
FUEL FILTER, INLINE
1
6
032725Q03F000
HOSE Φ5ЧΦ12Ч65
1
7
032716K14F000
FUEL SHUTOFF VALVE
1
A11
No. Parts No.
Description
Q
1
037000Q03F000
AIR CLEANER ASSEMBLY COMPLETE
1
4
037101Q03F000
AIR CLEANER COVER
1
5
0B04070500053
NUT M5
6
7
037122Q01F000
FILTER SUPPORT GRID
1
8
037114Q01F000
SEAL GASKET
1
9
037121Q01F000
BASE-FILTER BOX
1
2
037112Q01F00A
CLIP WIRE
2
3
037112Q01F00B
CLIP LEVER
2
6
037102Q01F000
ELEMENT-AIR FILTER
1
10
037105Q01F000
AIR CLEANER SUPPORT BRACE
1
11
0B04070600053
NUT M6
1
DATE
27-Feb-06
REVISION
CARBURETOR ASSEMBLY
AIR FILTER ASSEMBLY
CAN'T BUY NO. 3-4 SOLELY. (PLS PURCHASE NO. 1)
CAN'T BUY NO. 4-5, 7-9 SOLELY. (PLS PURCHASE NO. 1)
SPARE PARTS LIST
13HP FG7000MA
10 / 13
