CONGRATULATIONS
We appreciate your choice of MTX In-Wall Speakers. Properly installed and operated, MTX In-Wall
Loudspeakers should provide years of worry free listening pleasure. It’s important that you follow each
step in this guide carefully to insure proper installation.
SPECIFICATIONS MODEL 502W MODEL 602W
Frequency Response 53Hz-20kHz 43Hz-20kHz
+/- 3dB +/- 3dB
Power 45W RMS/ 50W RMS
Handling 90W Peak Music 100W Peak Music
Sensitivity (1W/1M) 84dB 85dB
Woofer Diameter 5-1/4" 6-1/2"
Tweeter 1/2" Polycarbonate 1/2" Polycarbonate
Balanced Dome Balanced Dome
Mounting Depth 2-3/8" (60.3mm) 2-7/8" (73.0mm)
Baffle Size 11"H x 7-1/2"W 12"H x 8-5/8"W
(279.4mm x 190.5mm) (304.8mm x 219.1mm)
Cutout Size 9-5/8"H x 6-3/16"W 10-3/4"H x 7-3/8"W
(244.5mm x 157.2mm) (273.1mm x 187.3mm)
PAINTING YOUR MTX IN-WALLS
MTX In-Wall Speakers are designed to accept all types of interior and exterior paints. Spray or roller
application should provide excellent results. A paint shield is included with all MTX In-Wall Speakers to
protect the speakers during the painting process.
LOUDSPEAKER PLACEMENT
MTX In-Wall Speakers are designed to work within any interior decorating scheme. They can be installed
in virtually any location where flush mounting is possible. To maximize their sound performance however

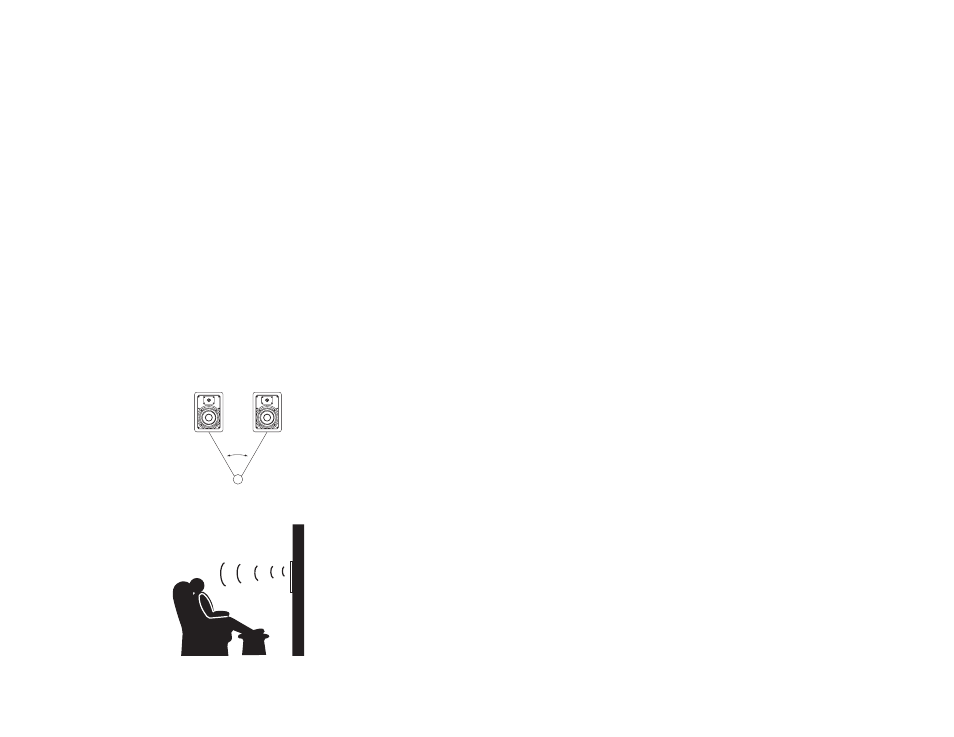

certain guidelines should be followed. For the best stereo reproduction the two loudspeakers should be
placed an equal distance from your listening position and separated so that the angle between them, at
the listening position, is between 40 and 60 degrees.
For best stereo imaging, we recommend that the units be placed so that the tweeters are as close as
possible to the ear level of a seated listener.
