Mio Upright Bike C520U User Manual
Page 7
Unit Assembly Procedure
STEP 1. For the following, please refer to Figure 1.
Secure the rear support bar to
the unit frame.
Insert screw sockets E into the holes.
Loosen screws
A, B, C, D to make room for the rear support cover. Slide the rear support
cover into place. Then secure those screws.
Note: Hold the rear support cover at a 5-degree angle while inserting it into the frame.
Press lightly at G to insert the top into both sides of the cover. When the top
has entered the side covers, then slide the cover straight onto the support bar
as shown in Figure 2.
6

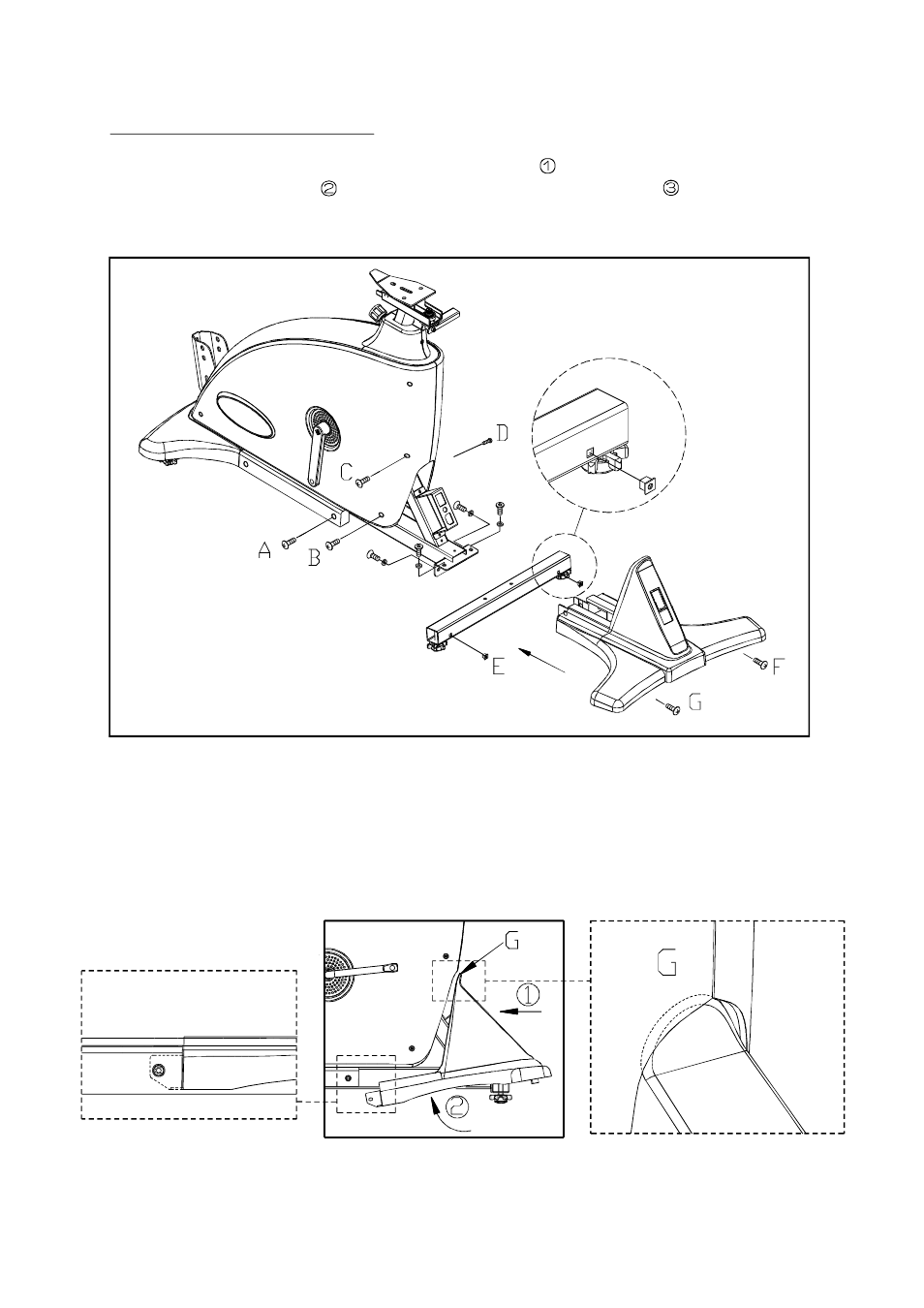

Fig.1
Fig.2
