Rack-mounted Installation
The MIL-S24000T comes with a rack-mounted kit and can be mounted in an EIA
standard size, 19-inch rack. The Switch can be placed in a wiring closet with other
equipment.
Perform the following steps to rack mount the switch:
A. Position one bracket to align with the holes on one side of the switch and
secure it with the smaller bracket screws. Then attach the remaining bracket
to the other side of the Switch.

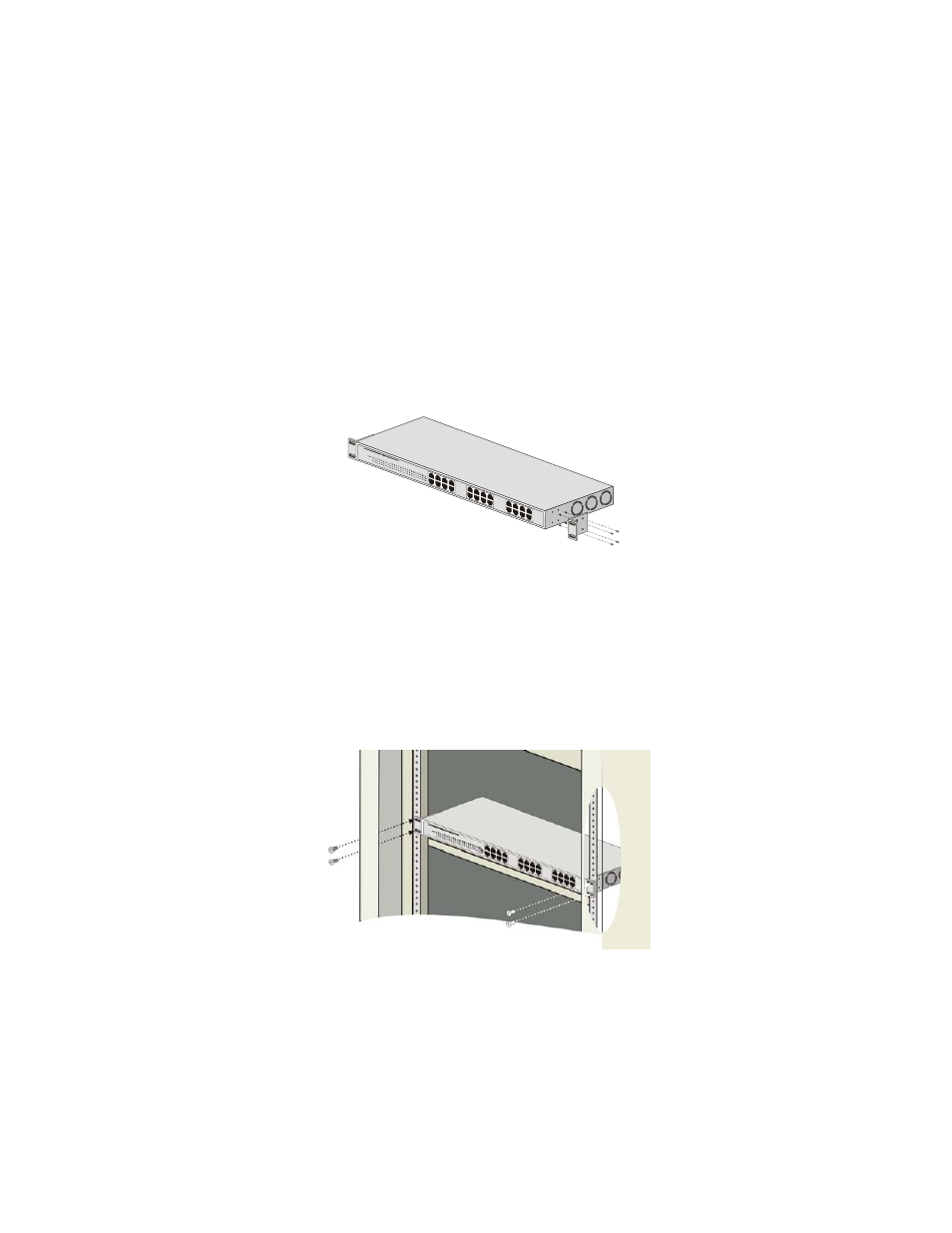

Figure 3-2. Attach mounting brackets with screws
B. After attaching both mounting brackets, position the MIL-S24000T in the rack
by lining up the holes in the brackets with the appropriate holes on the rack.
Secure the Switch to the rack with a screwdriver and the rack-mounting
screws.
Figure 3-3. Mount the MIL-S24000T in an EIA standard 19-inch Rack
Note: For proper ventilation, allow at least 4 inches (10 cm) of clearance on the
front and 3.4 inches (8 cm) on the back of the Switch. This is especially important
for enclosed rack installation.
